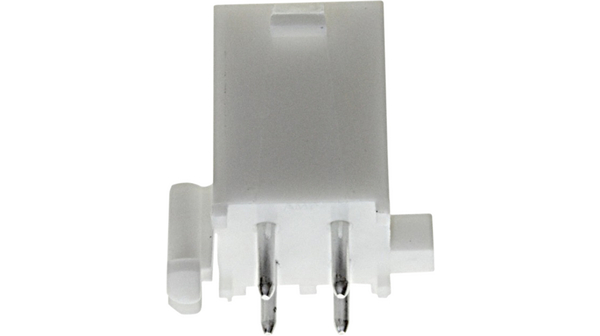

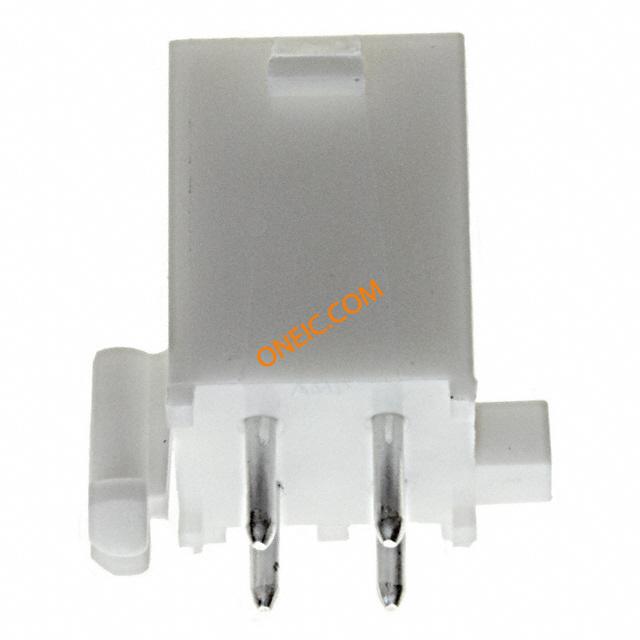

1-770874-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 4 POS 4.14mm Solder ST Thru-Hole 4 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 4POS VERT .163 TIN Headers & Wire Housings HEADER 4 POS TIN DUAL ROW Conn Power HDR 4 POS 4.14mm Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 44.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG & SOCKET CONN, HEADER, 4POS, 4.14MM MINI-UNIVM-N-LHDRS,04PMINIUMNLHDRASSYSNLF Pin header Pitch4.14 mm Poles 2 x 2 straight MATE-N-LOK Mini Universal, 1-770874-0, TE Connectivity 04P MINI UMNL HDR ASSY SN LF |
| 分类 |
商业参数
| 商标名 | MATE-N-LOK | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 20 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 额定电压 | 600 V | 开关功能 | Latched |
| 最大额定电流 | 9.5 A | 最小供电电压 | 600VAC |
机械参数
| 颜色 | White | 间距 | 4.14 mm |
| 高度 | 14.25 mm | 重量 | 0.001 |
| 包装方式 | Bulk | 排间距 | 0.163" (4.14mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 排数 | 2 |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 主要材料 | InterconnectSystem | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 触点数 | 4 |
| 接触件端接 | :Through Hole Vertical | 位数 | 4 |
| 接触镀层厚度 | 150µin (3.81µm) | 第一连接器安装类型 | :PCB |
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | Mini Universal Mate-N-Lok | 产品特性 | Board Lock |
| 制造商全称 | MATE-N-LOK | 产品子类型 | Headers |
| 端口数 | 1 Port | 加载位置数 | All |
