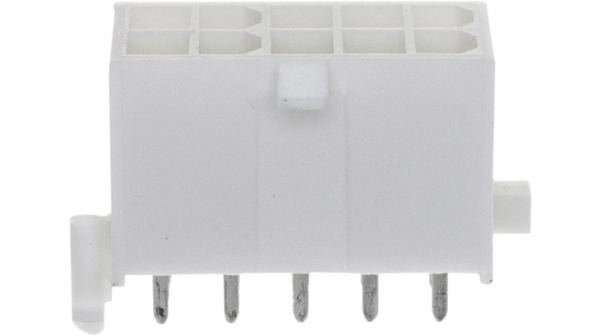

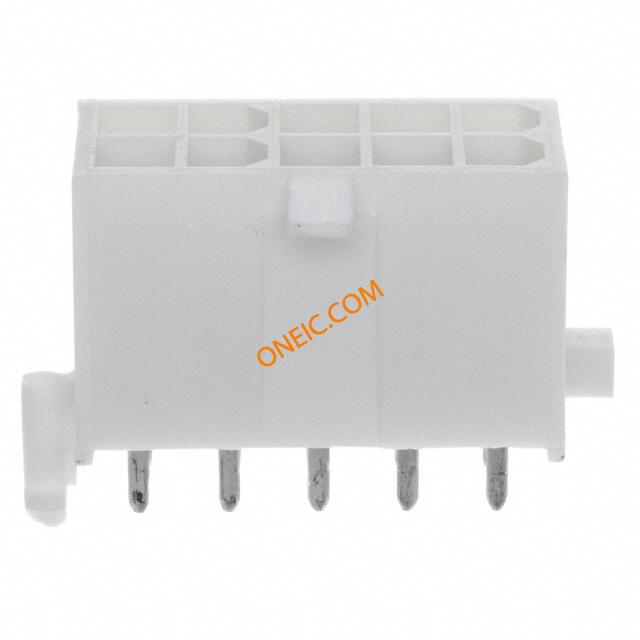

1-770743-1

点击放大查看

1-770743-1

制造商
TE Connectivity Ltd.
描述Conn Power HDR 10 POS 4.14mm Solder ST Thru-Hole 10 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 10POS STR DL .163 AU TE Connectivity Mini-Universal MATE-N-LOK Series 4.14mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 9.5A Headers & Wire Housings HEADER 10 POS GOLD DUAL ROW Conn Power HDR 10 POS 4.14mm Solder ST Thru-Hole 10 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 104.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI-UNIVM-N-LHDRS,10PMINIUMNLHDRASSYVRTLF Pin header Pitch4.14 mm Poles 2 x 5 straight MATE-N-LOK Mini Universal, 1-770743-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm节距 10路 (2排) 直 PCB 针座, 焊接端接, 9.5A , 通孔 10P MINI UMNL HDR ASSY VRT LF
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名MATE-N-LOK产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量1

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
零件状态E28476CSA档案号LR7189
标准编号CSA, ULCSA分类已认证
UL阻燃等级UL 94V-0认证机构标志是
材料阻燃等级UL 94 V-0

电气参数

额定电压600 V ac/dc极数2 x 5
开关功能Latched供电电压600
最大额定电流9.5A最小供电电压600VAC

机械参数

颜色White深度11.88 mm
间距4.14 mm宽度9.83
高度14.25 mm长度27.43
密封型Not Sealed包装方式Bulk
壳体颜色白色方向直
排间距0.163" (4.14mm)端接方式Solder
触头类型Male Pin安装类型Through Hole
连接器类型Header, Shrouded接触镀层Gold
紧固类型Locking Ramp安装样式Through Hole
引脚数10排数2
连接器样式straight高度（英寸）13.49
触头材料Brass壳体材料Nylon
总长度27.43 mm安装特性板锁
包装数量200面板安装类型通孔 - 焊接
主要材料InterconnectSystem端接排数焊接
端接样式Through Hole第一触头极性Pin (Male)
触点数10位数10
外壳尺寸-插件母端, 母端第一连接器极性Male
兼容外壳尺寸（如TM-700等）插头护套安装孔直径带有
接触件表面处理 - 配合锡端子柱长度3.69 mm [ .145 in ]
接触镀层厚度30µin (0.76µm)静电放电屏蔽不带

产品信息

类型Power连接器性别HDR
系列Mini-Universal MATE-N-LOK覆盖范围覆盖
产品特性Board Lock制造商全称MATE-N-LOK
产品子类型Headers端口数1 Port
连接方式Wire-Board应用细节Power
装配配置Without加载位置数All

环境参数

测试温度标准件 - 非灼热丝工作温度-20...+105 °C
封装热阻.062 mm [ 1.57 in ]
