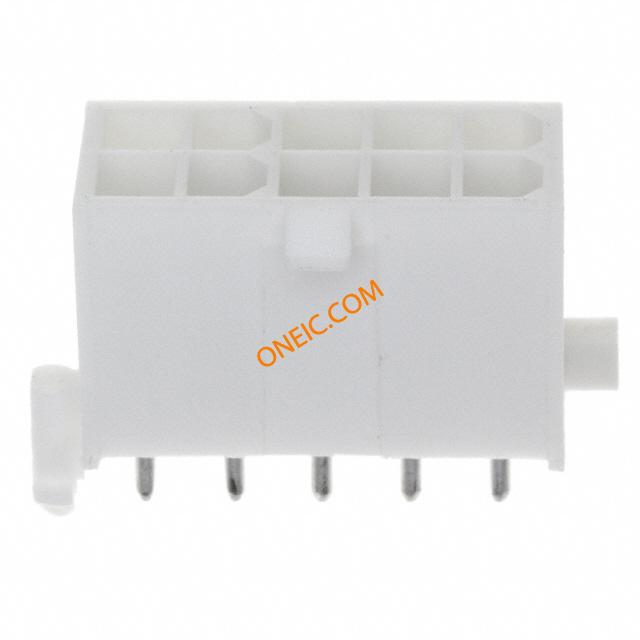

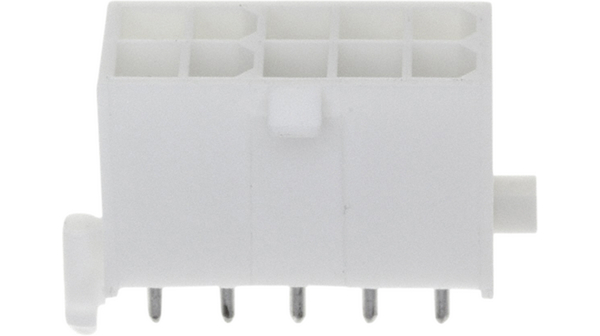

1-770743-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 10 POS 4.14mm Solder ST Thru-Hole 10 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 10PS STR DL .163 TIN Headers & Wire Housings HEADER 10 POS TIN DUAL ROW Conn Power HDR 10 POS 4.14mm Solder ST Thru-Hole 10 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 104.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG & SOCKET CONN, PLUG, 10POS, 4.14MM MINI-UNIVM-N-LHDRS,10PMINIUMNLHDRASSYD/RVRT Pin header Pitch4.14 mm Poles 2 x 5 straight MATE-N-LOK Mini Universal, 1-770743-0, TE Connectivity 10P MINI UMNL HDR ASSY D/R VRT |
| 分类 |
商业参数
| 商标名 | MATE-N-LOK | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 600 V | 开关功能 | Latched |
| 最大额定电流 | 9.5 A | 最小供电电压 | 600VAC |
机械参数
| 颜色 | White | 深度 | 11.88 mm |
| 间距 | 4.14 mm | 高度 | 14.25 mm |
| 重量 | 0.01 | 包装方式 | Bulk |
| 排间距 | 0.163" (4.14mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Nylon | 总长度 | 27.43 mm |
| 主要材料 | InterconnectSystem | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 触点数 | 10 |
| 接触件端接 | :Through Hole Vertical | 位数 | 10 |
| 接触镀层厚度 | 150µin (3.81µm) | 第一连接器安装类型 | :PCB |
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | Mini Universal Mate-N-Lok | 产品特性 | Board Lock |
| 制造商全称 | MATE-N-LOK | 产品子类型 | Headers |
| 端口数 | 1 Port | 加载位置数 | All |
