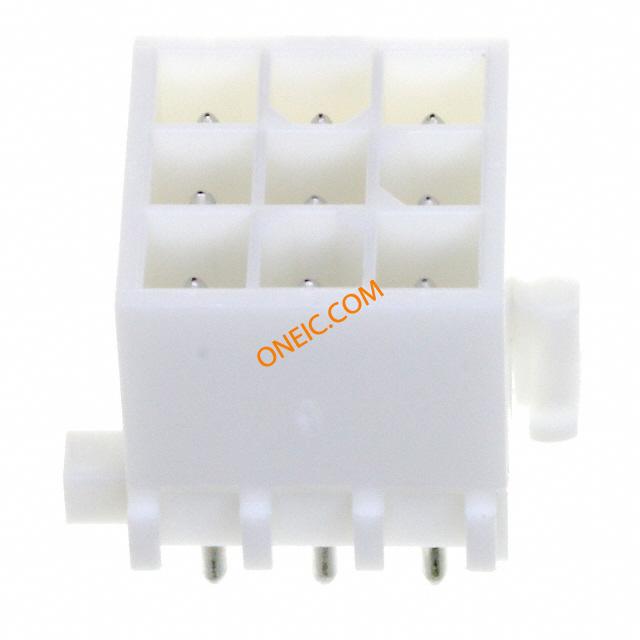

1-770182-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 9 POS 4.14mm Solder ST Thru-Hole 9 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 9POS VERT .163 TIN TE Connectivity MATE-N-LOK Series 4.14mm Pitch 9 Way Straight Heavy Duty Power Connector, Solder Termination, 9.5A Headers & Wire Housings HEADER 9 POS TIN MATRIX Conn Power HDR 9 POS 4.14mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 94.14 x 4.14 mm Centerline, MatrixMatrix Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HOUSING VERTICAL, 9WAY MINI-UNIVM-N-LHDRS,09PMINI-UMNLASSYV0SNNI Socket; wire-board; male; 4.14mm; PIN:9; tinned; Pin layout:3x3 Pin header, straight Pitch4.14 mm Poles 3 x 3 straight MATE-N-LOK Mini Universal, 1-770182-0, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm节距 9路 直 PCB 针座, 焊接端接, 9.5A , 通孔 09P MINI-UMNL ASSY V0 SNNI |
| 分类 |
商业参数
| 商标名 | MATE-N-LOK | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85322900 |
| 认证机构 | :CSA, UL, VDE | 材料阻燃等级 | :UL94V-0 |
电气参数
| 量程（°/s） | :TE - Mini-Universal MATE-N-LOK Series | 测试电压 | :1500V |
| 额定电压 | 600 V ac | 开关功能 | Latched |
| 最大额定电流 | 9.5A | 最大触点电流 | :10.5A |
| 绝缘电阻 | :100Mohm | 最小供电电压 | 600VAC |
机械参数
| 颜色 | White | 深度 | 16.03 mm |
| 间距 | 4.14 mm | 高度 | 14.25 mm |
| 重量 | 0.0247 | 包装方式 | Bulk |
| 方向 | straight | 排间距 | 0.163" (4.14mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 柱间距 | 4.14mm | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 排数 | 3 | 锁定特性 | lock |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 总长度 | 19.15 mm | 主要材料 | InterconnectSystem |
| 连接器 - 电缆 | socket | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :White |
| 触点数 | 9 | 接触件端接 | :Solder |
| 位数 | 9 | 接触镀层厚度 | 150µin (3.81µm) |
| 触点材料 - 镀层 | tinned | 第一连接器安装类型 | :PCB |
| 第一连接器安装特征 | 3x3 | ||
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | MATE-N-LOK | 产品特性 | Board Lock |
| CAD图纸 | 3D CAD Model | 制造商全称 | MATE-N-LOK |
| 产品子类型 | Headers | 适配器系列 | Mini Universal MATE-N-LOK |
| 端口数 | 1 Port | 单元数量 | 200 |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -20C to 105C | 结工作温度 | 105C |
