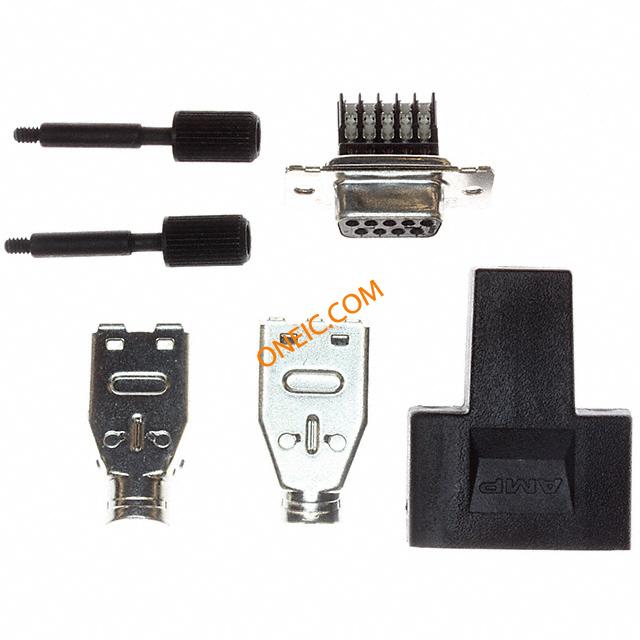

1-747943-7

点击放大查看

1-747943-7

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature SKT 9 POS Crimp ST Cable Mount 9 Terminal 1 Port Bulk D-Sub Standard Connectors E09S IDC 26-22AWG Standard Cable Connectors CONN KIT D-SUB RCPT 9POS IDC 1-747943-7 Conn D-Subminiature SKT 9 POS Crimp ST Cable Mount 9 Terminal 1 Port Bulk Product Highlights:Connector KitProduct Series = HDE-20 (IDC)Number of Positions = 9ShieldedReceptacleSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub KIT,RCPT,9P,HDE,SHLD ENCLSRE
分类
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Standard Connectors标准包装数量Tape & Reel
工厂包装数量100

合规参数

RoHSRoHS Compliant材料阻燃等级UL 94V-0

电气参数

额定电压250V连接器阻抗刺破式压接 (IDC)
最大额定电流Varies by Wire Gauge

机械参数

颜色Black间距2.77 mm [ .109 in ]
外形尺寸(长x宽)1包装方式Bulk
屏蔽是电缆类型分离式导线, 环状护套电缆
绝缘类型Insulated外壳尺寸1
导线线规26-22端接方式Crimp
螺纹尺寸4-40触头类型Signal
外壳表面处理锡第二连接器With
安装类型Cable Mount外壳镀层Tin
端子尺寸20线径4.83 – 9.53 mm [ .19 – .375 in ]
连接器类型Receptacle, Female Sockets接触镀层Gold
法兰特征Cable Side; Male Jackscrew (4-40)安装样式Wire
排数2封装形式带有
外壳材料（壳体）Steel连接器样式D-Sub
插入件材料磷青铜屏蔽材料钢
触头材料Phosphor Bronze壳体材料钢
安装特性无包装数量1
接地凹痕Without绝缘高度Yes
端接样式IDC外径9.53 mm [ .375 in ]
触点数9绝缘直径1.52 mm [ .06 in ]
绝缘材料 - 类型Thermoplastic位数9
外壳尺寸-插件Front Metal Shell外壳材料及表面处理Steel, Tin Plated
接触镀层厚度Flash线规或范围 - AWG26 – 22
触点材料 - 镀层热塑性护套（绝缘）材料Zinc Alloy
线缆外径（最大）4.83 – 9.53 mm [ .19 – .375 in ]外壳尺寸，连接器布局1 (DE, E)

产品信息

备注屏蔽外壳扩张工具 58241-4 适用的最大电缆外直径为 9.02 [.355]。, 护套和编织层移除后的最大电缆直径。类型D-Subminiature
等级标准连接器性别SKT
系列HDE-20产品特性Backshell, Shielded
预装No产品子类型连接器

环境参数

工作温度-55°C ~ 105°C
