1-644750-5

点击放大查看

1-644750-5

制造商
TE Connectivity Ltd.
描述Conn Unshrouded Header HDR 15 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 15POS VERT .156 TIN Headers & Wire Housings HDR 15P VT .156 TIN 15P MTA156 HDR ASSY STR RND SN
分类
连接器解决方案板对板连接器带罩排针连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量50

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
UL档案号E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
材料阻燃等级UL 94 V-0

电气参数

额定电压600 V供电电压600
连接器阻抗焊接最大额定电流7 A

机械参数

颜色Natural间距3.96 mm
高度13.34 mm [ .525 in ]长度59.44 mm [ 2.34 in ]
包装方式Bulk壳体颜色自然
端接方式Solder触头类型Male Pin
触点形状Round安装类型Through Hole
连接器类型Header, Unshrouded接触镀层Tin
触点时序Without安装样式不带
排数1壳体镀层Tin
外壳材料（壳体）普通扁平插入件材料铜合金
触头材料Copper Alloy壳体材料Polyester
包装数量1面板安装类型通孔 - 焊接
端接样式Through Hole第一触头极性Pin (Male)
触点数15端接表面处理不带
位数15兼容外壳尺寸（如TM-700等）MTA .156 连接器组件或 SL .156 连接器组件
触头长度-柱电源安装孔直径不带
接触件表面处理 - 配合锡典型触点布局同轴
接触长度 - 配合0.400" (10.16mm)端子柱长度4.45 mm
接触镀层厚度2.54 µm [ 100 µin ]静电放电屏蔽不带
护套（绝缘）厚度1.27 µm, 50 µin

产品信息

类型Unshrouded Header连接器性别HDR
系列MTA-156可密封否
产品子类型Headers应用细节Wire-to-Board
加载位置数All

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]封装热阻1.6 mm [ .063 in ]

文档与媒体

在线文档
1-644750-5

相关型号

4-640429-5

4-640429-5

te connectivity / amp

Conn IDC Connector F 15 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 15POS 24AWG MTA156 Headers & Wire Housings 15P MTA156 CONN ASSY 24AWG WHT 15P MTA156 CONN ASSY 24AWG WHT

¥3.9440
详情
1-643819-5

1-643819-5

te connectivity / amp

Conn IDC Connector F 15 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 15POS .156 22AWG RED Headers & Wire Housings 15P MTA156 CONN ASSY 22AWG RED MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-156 ConnectorsNumber of Positions = 15Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 15P MTA156 CONN ASSY 22AWG RED

¥4.2840
详情
1-640432-5

1-640432-5

te connectivity / amp

Conn IDC Connector F 15 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 15POS 20AWG MTA156

详情
1-640428-5

1-640428-5

te connectivity / amp

Conn IDC Connector F 15 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 15 POS 22AWG MTA156 Headers & Wire Housings 15P RECPT 22 AWG RED Conn IDC Connector F 15 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 15Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 15P MTA156 CONN ASSY 22AWG RED

¥4.3520
详情
1-640600-5

1-640600-5

te connectivity / amp

Conn IDC Connector F 15 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 15POS 20AWG MTA-156

详情
1-640599-5

1-640599-5

te connectivity / amp

Conn IDC Connector F 15 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 15POS .156 TIN Headers & Wire Housings 15P MTA156 CONN ASSY 18AWG ORA 15P MTA156 CONN ASSY 18AWG ORA 15P MTA156 CONN ASSY 18AWG ORA Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥4.6920
详情
1-644460-5

1-644460-5

te connectivity / amp

Conn IDC Connector F 15 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 15POS .156 18AWG GOLD Headers & Wire Housings 15P MTA156 CONN ASSY 18AWG ORA 15P MTA156 CONN ASSY 18AWG ORA 15P MTA156 CONN ASSY 18AWG ORA Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥40.6640
详情
1-643817-5

1-643817-5

te connectivity / amp

Conn IDC Connector F 15 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 15POS 18AWG CLOSD .156 Headers & Wire Housings 15P MTA156 CONN ASSY 18AWG ORA 15P MTA156 CONN ASSY 18AWG ORA 15P MTA156 CONN ASSY 18AWG ORA Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥3.2110
详情
4-640430-5

4-640430-5

te connectivity / amp

Conn IDC Connector F 15 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 15POS 26AWG MTA156 Headers & Wire Housings 15P MTA156 CONN ASSY 26AWG BLU 15P MTA156 CONN ASSY 26AWG BLU

¥3.9440
详情
4-640426-5

4-640426-5

te connectivity / amp

Conn IDC Connector F 15 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 15POS 18AWG MTA156 Headers & Wire Housings REC 15P C/E 18AWG RAMP Conn IDC Connector F 15 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 15Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Connector;Receptacle;15;IDC;LockingRamp;90deg;Nylon;MTA-156Connectors 15P MTA156 CONN ASSY 18AWG ORA

¥3.0199
详情
4-640428-5

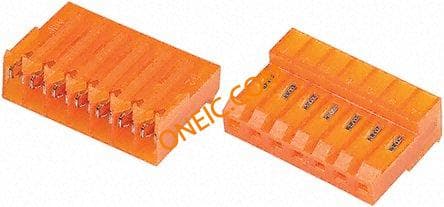

4-640428-5
