1-643817-2

点击放大查看

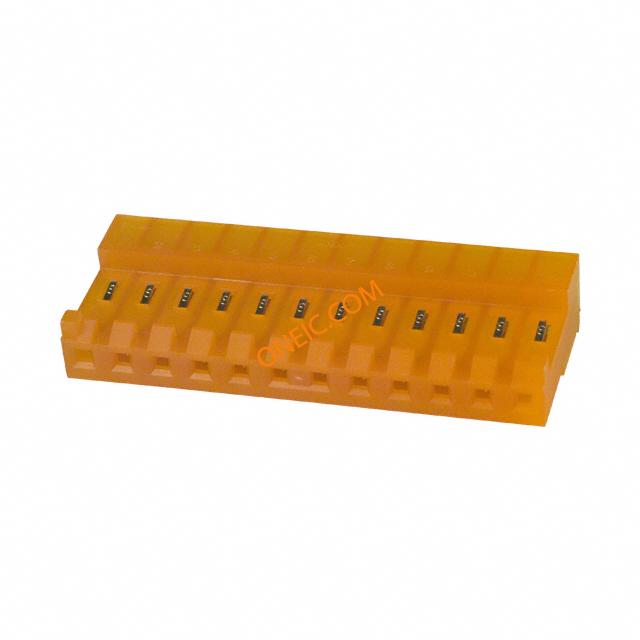

1-643817-2

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 12 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 12POS 18AWG MTA156 Headers & Wire Housings CLOSED END RECPT 12P 500 12P MTA156 CONN ASSY 18AWG ORA
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量500

合规参数

RoHSContains lead / RoHS non-compliantUL等级获得认可
UL档案号E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
材料阻燃等级UL 94V-2

电气参数

额定电压600 VAC开关功能Locking Ramp
供电电压600连接器阻抗IDC
最大额定电流7 A

机械参数

颜色Orange间距3.96 mm
长度47.55包装方式Bulk
导线类型Discrete or Ribbon Cable壳体颜色白色
电缆类型分离式导线, 绞线导线线规18 AWG
端接方式IDT触头类型Female Socket
安装类型Free Hanging (In-Line)连接器类型Receptacle
接触镀层Tin-Lead触点时序Without
紧固类型Locking Ramp安装样式Wire
排数1外壳材料（壳体）标准
高度（英寸）9.02插入件材料铜合金
触头材料Copper Alloy壳体材料Nylon
包装数量250面板安装类型不带
电缆端接方式IDC端接样式IDC
第一触头极性Socket (Female)触点数12
端接表面处理带有接触件端接Locking Lance
绝缘直径2.41 mm [ .095 in ]位数12
兼容外壳尺寸（如TM-700等）MTA .156 头触头长度-柱电源
安装孔直径带有接触件表面处理 - 配合锡铅
典型触点布局同轴表面贴装焊盘尺寸Without
接触镀层厚度80µin (2.03µm)静电放电屏蔽带有

产品信息

备注肋之间的条纹可能会减少类型IDC Connector
连接器性别F系列MTA-156
产品特性Closed End, Polarizing Key可密封否
产品子类型Connector Assemblies
