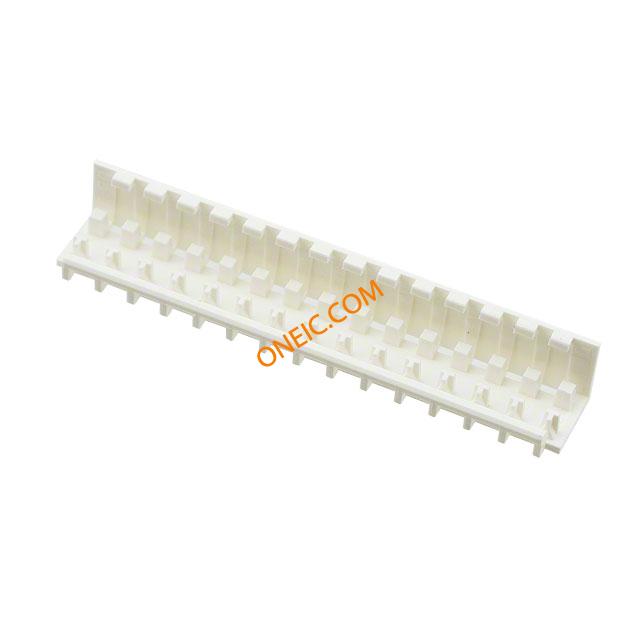

1-643067-5

点击放大查看

1-643067-5

制造商
TE Connectivity Ltd.
描述Connector Accessories 15 POS Strain Relief Closed End Cover Nylon White MTA, CST and SL Accessories CONN COVER STR RELIEF 15POS .156 AMP MTA156 Strain Relief Cover 15P white Headers & Wire Housings MOLDED COVER Connector Accessories 15 POS Strain Relief Closed End Cover Nylon White Product Highlights:AccessoryAccessory Type = Strain Relief CoversWithout Panel AttachmentCover Style = Closed End15 PositionsSearch Keywords:Keying plug type, PCB, Wire-to-Board, .050 Centerline, IDC, Discrete Wire Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP 15POSClosedEndStrainRelief 15P MTA156 MOLDED COVER
分类
连接器解决方案重载连接器重载连接器
对参数有疑问？问 AI 助手

商业参数

其他名称16430675产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-2

机械参数

颜色White深度11.18 mm
间距3.96 mm [ .156 in ]高度8.51 mm
包装方式Bulk排数1
壳体材料Nylon总长度59.43 mm
面板安装类型Without主要材料Interconnect
触点数15绝缘直径2.41 [0.095]
位数15兼容外壳尺寸（如TM-700等）MTA-156 连接器

产品信息

类型Cover样式Closed End
系列MTA-156产品特性Closed End
盖类型Strain Relief制造商全称AMP
产品子类型Strain Relief Covers附件类型Cap (Cover), Strain Relief
射频系列/标准643067适用产品/相关产品MTA-156 Connectors
