1-640454-8

点击放大查看

1-640454-8

制造商
TE Connectivity Ltd.
描述
Conn Wire to Board HDR 18 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 18POS VERT .100 TIN Headers & Wire Housings 18P HDR SQ STR POL 18P MTA100 HDR ASSY SQ STR POL
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250 V供电电压250
额定交流电压250连接器阻抗焊接
最大额定电流5

机械参数

颜色Natural间距2.54 mm
高度7.75 mm [ .305 in ]长度45.72 mm [ 1.8 in ]
包装方式Bulk遮蔽类型No
壳体颜色自然端接方式Solder
触头类型Male Pin第二连接器Without
触点形状Square外壳颜色White
安装类型Vertical连接器类型Header, Unshrouded
接触镀层Tin触点时序Without
安装样式不带排数1
壳体镀层Tin外壳材料（壳体）极化
连接器用途Header插入件材料铜合金
触头材料Copper Alloy壳体材料Polyester
安装特性Without包装数量1
面板安装类型Without尺寸/外形0.64 [.025]
端接样式Through Hole第一触头极性Pin (Male)
配接方向With触点数18
端接表面处理不带位数18
后壳中断功能Without兼容外壳尺寸（如TM-700等）MTA .100 连接器组件
触头长度-柱3.56 mm [ .14 in ]安装孔直径不带
接触件表面处理 - 配合锡典型触点布局2.54 [0.100]
接触长度 - 配合0.295" (7.49mm)触点材料 - 柱Copper Alloy
表面贴装焊盘尺寸Without端子柱长度3.56 [0.140]
接触镀层厚度3.81 µm [ 150 µin ]恢复后小径No
静电放电屏蔽不带护套（绝缘）厚度1.27 µm, 50 µin

产品信息

类型Wire to Board连接器性别HDR
系列MTA-100产品特性Polarizing Key
可密封否制造商全称AMP
产品子类型MTA-100 Connectors连接类型Printed Circuit Board
应用细节Wire-to-Board加载位置数All
跳过的位置数None

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]封装热阻1.6 mm [ .063 in ]

相关型号

4-640441-8

4-640441-8

te connectivity / amp

Conn IDC Connector F 18 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 18POS 24AWG MTA100 Connector FH IDC 18way Rec 24AWG MTA-100 Headers & Wire Housings 18P MTA100 ASSY WH Conn IDC Connector F 18 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 18Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP ConnectorFHIDC18wayRec24AWGMTA-100 TE Connectivity MTA-100 系列 18路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 18P MTA100 CONN ASSY WHT

¥14.8920
详情
暂无图片

1-643815-8

te connectivity / amp

Conn IDC Connector F 18 POS 2.54mm IDT RA Cable Mount Loose Piece CONN RCPT 18POS 26AWG CLOSD .100

¥2.2100
详情
暂无图片

1-1375820-8

te connectivity / amp

Conn Housing RCP 18 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HOUSING 18POS CST-100 Headers & Wire Housings 18P RECEPT HSNG Conn Housing RCP 18 POS 2.54mm Crimp ST Product Highlights:CST-100 II HousingsNumber of Positions = 18Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CST-100 II HOUSING 18 POS

¥2.6928
详情
1-640443-8

1-640443-8

te connectivity / amp

Conn IDC Connector F 18 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 18POS 28AWG MTA100 Headers & Wire Housings 18P MTA100 CONN ASSY GRN Conn IDC Connector F 18 POS 2.54mm IDT RA Cable Mount Loose Piece Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 18P MTA100 CONN ASSY GRN

¥19.9920
详情
1-643814-8

1-643814-8

te connectivity / amp

Conn IDC Connector F 18 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 18POS 24AWG MTA-100 Headers & Wire Housings 18P MTA100 CONN ASSY POL RIB Conn IDC Connector F 18 POS 2.54mm IDT RA Cable Mount Loose Piece Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 18P MTA100 CONN ASSY POL RIB

¥14.8969
详情
1-641190-8

1-641190-8

te connectivity / amp

Conn IDC Connector F 18 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 18POS .100 GOLD Headers & Wire Housings 18P MTA100 CONN ASSY RED 22AWG

¥30.1920
详情
1-640621-8

1-640621-8

te connectivity / amp

Conn IDC Connector F 18 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 18POS .100 TIN Headers & Wire Housings 18P MTA100 CONN ASSY F/T NATL MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-100 ConnectorsNumber of Positions = 18Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 18P MTA100 CONN ASSY F/T NATL

¥8.9760
详情
暂无图片

1-644042-8

te connectivity / amp

Conn IDC Connector F 18 POS 2.54mm IDT RA Cable Mount Loose Piece CONN RCPT 18POS .100 POLAR GOLD

详情

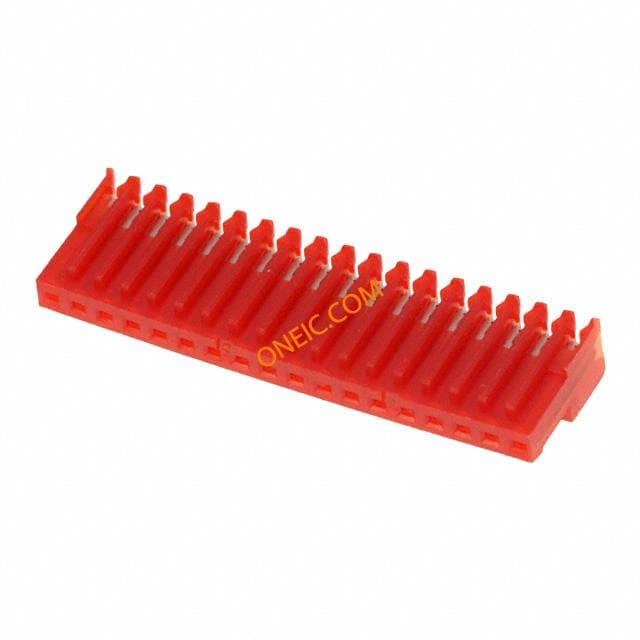

4-640440-8
