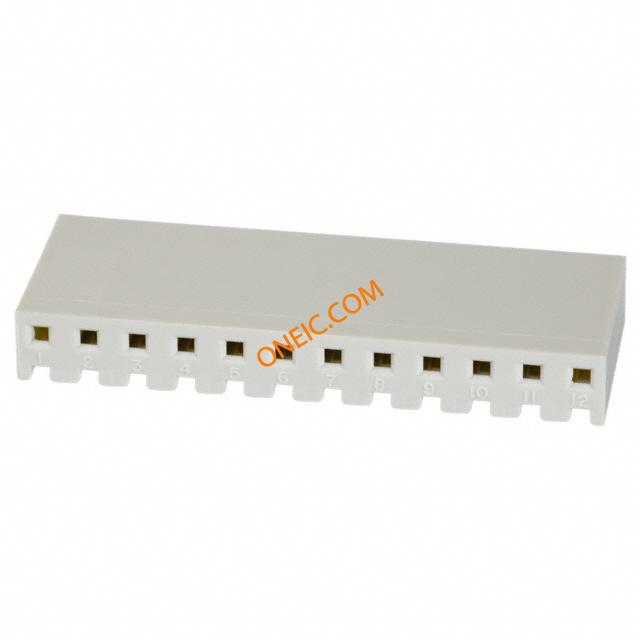

1-640251-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 12 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECPT 12POS W/O RAMP SL-156 12w housing without lock ramp or tabs Headers & Wire Housings 12P SL156 HSG W/O LC Conn Housing RCP 12 POS 3.96mm Crimp ST Cable Mount Product Highlights:12 PositionsWithout ContactsHousing Gender = Connector - ReceptacleHousing Accepts Contact Type = ReceptacleSL-156 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE 12POS, 3.96MM 12whousingwithoutlockramportabs 12P SL156 HSG W/O LCK RAMP |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - SL-156 Series | 额定电压 | 600 V |
机械参数
| 颜色 | Natural | 深度 | 16.76mm |
| 间距 | 3.96 mm | 宽度 | 6.35mm |
| 长度 | 47.52mm | 重量 | 0.003 |
| 包装方式 | Bulk | 遮蔽类型 | No |
| 出线方向 | 180° | 导线线规 | 18-24 AWG |
| 触头类型 | Female Socket | 第二连接器 | Without |
| 外壳颜色 | White | 安装类型 | Straight |
| 连接器类型 | Crimp | 接触镀层 | Tin |
| 安装样式 | Wire | 排数 | 1 |
| 连接器用途 | Receptacle | 触头材料 | Copper Alloy |
| 壳体材料 | Nylon | 安装特性 | Without |
| 面板安装类型 | Without | 主要材料 | Connector |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 配接方向 | Without | 触点数 | 12 |
| 接触件端接 | Crimp | 绝缘直径 | Standard |
| 位数 | 12 | 典型触点布局 | 3.96 [0.156] |
产品信息
| 备注 | Recommended contact: Part No. 640252-1,-2 and Part No. 770476-1,-2. | 类型 | Housing |
| 连接器性别 | RCP | 系列 | SL-156 |
| CAD图纸 | 3D CAD Model | 制造商全称 | AMP |
| 产品子类型 | SL-156 Housings | 应用细节 | Wire-to-Board |
| 适用产品/相关产品 | Wire-to-Board Economy Power Connector | ||
