1-480696-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 6 POS 4.95mm Crimp ST Cable Mount Bag .200" Centerline, 250 V, 13 A max. CONN HOUS 6POS 94V-2 MATE-N-LOK Power to the Board 06P CMNL PLUG HSG M- 06P CMNL PLUG HSG M-M D/L NATL 06P CMNL PLUG HSG M-M D/L NATL Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP |
| 分类 |
商业参数
| 标准包装规格 | 1,000 | 产品类别 | Power to the Board |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Not applicable / RoHS Compliant | UL等级 | 已认证, 获得认可 |
| 零件状态 | E28476 | 无铅定义 | Not relevant for lead free process |
| CSA档案号 | LR16455 | 标准编号 | CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-2 |
| 认证机构标志 | 否 | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定电压 | 250 V | 供电电压 | 250 |
| 中心频率 | 带有 | 最大额定电流 | 28 A |
| 连接器类型 - 电压输入 | Commercial MATE-N-LOK | ||
机械参数
| 颜色 | Natural | 间距 | 4.95 mm |
| 密封型 | Not Sealed | 锁定类型 | Positive Lock |
| 包装方式 | Bulk | 触头类型 | Female Socket |
| 柱间距 | 4.95 x 9.14 [.195 x .360] | 安装类型 | Straight |
| 连接器类型 | Plug | 接触镀层 | Without |
| 紧固类型 | Latch Lock | 安装样式 | Wire |
| 排数 | 2 | 封装形式 | Plug |
| 高度（英寸） | .85 | 总宽度 | .685 |
| 壳体材料 | Nylon | 总长度 | .725 |
| 包装数量 | One Piece Housing | 面板安装类型 | 不带 |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 触点数 | 6 | 接触件端接 | Crimp |
| 位数 | 6 | 兼容外壳尺寸（如TM-700等） | 插针（盖帽）护套 |
| 典型触点布局 | Double-Row | 接触镀层厚度 | 2.13 [0.084] |
产品信息
| 备注 | To be used with MATE-N-LOK dual lance pins. | 类型 | Housing |
| 连接器性别 | RCP | 产品子类型 | Housing |
| 电路数 | 6 | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
文档与媒体
相关型号
1-480697-0
te connectivity / amp
Conn Housing RCP 6 POS 4.95mm Crimp ST Cable Mount Box .200" Centerline, 250 V, 13 A max. CONN HOUS6POS 94V-2 MATE-N-LOK Power to the Board HOUSING 6P 94V-2 06P CMNL CAP HSG M-M D/L NATL 06P CMNL CAP HSG M-M D/L NATL Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP
61117-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Pin & Socket Connectors SOK 20-14 BR .200" Centerline, 250 V, 13 A max. CONN SOCKET 14-20 AWG CRIMP 61117-2 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Commercial Mate-N-Lok Pre-Tin 20-14 AWG Discrete Wire Crimp Socket Contact CMNL SOK 20-14 BR
61314-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 18-24AWG GOLD CRIMP Power to the Board SOCKET CONTACT 24-18 AWG 61314-5 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL SOK 24-18 AUBR
61173-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Power to the Board SOCKET CONTACT 30-22 .200" Centerline, 250 V, 13 A max. CONN SOCKET 22-30AWG TIN CRIMP Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmLoose PieceContact Type = SocketWire Range = 0.05-0.40² [30-22] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL SOK 30-22 PTPHBZ L/P
1-770279-0
te connectivity / amp
Conn Housing RCP 6 POS ST .200" Centerline, 250 V, 13 A max. CONN CAP 6POS MATE-N-LOK NATURAL
61314-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 24-18AWG M-N-L TIN Contact Crimp socket 24-18AWG Mate-n-Lok Power to the Board SOCKET 22-18 AWG Reel of 7000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONTACT, SOCKET, 24-18AWG, CRIMP CONTACT,SOCKET,MATE-N-LOK,2.13MM,24-18AWG,BRASS TE Connectivity Commercial MATE-N-LOK 系列 母 压接接线端子, 压接, 镀锡触点 CMNL SOK 24-18 TPBR
61314-7
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONTACT SOCKET 24-18AWG M-N-L Pin & Socket Connectors CMNL SOK S/F 24-18 . .200" Centerline, 250 V, 13 A max. Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL SOK 24-18 AUBR
61314-6
te connectivity / amp

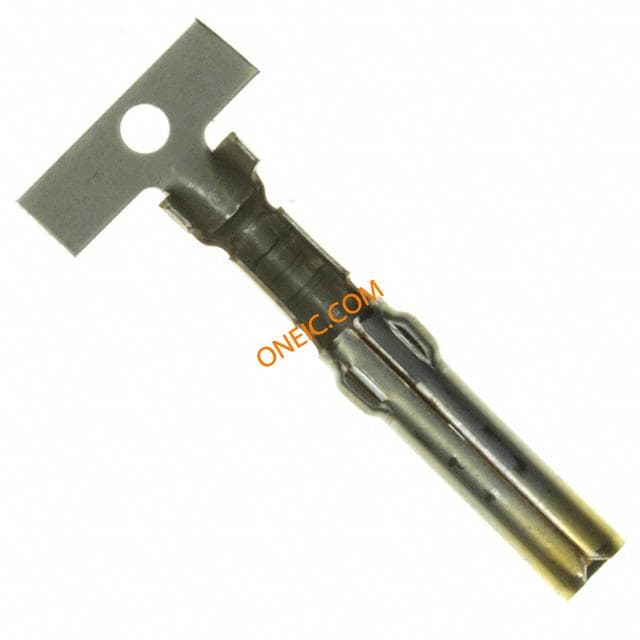

Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 18-24AWG GOLD CRIMP Mate-n-lok socket contact,0.20-0.80mm² Pin & Socket Connectors CMNL SOK S/F 24-18 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Mate-n-loksocketcontact,0.20-0.80mm² TE Connectivity Commercial MATE-N-LOK 系列 母 压接接线端子, 压接, 镀金镀镍触点 CMNL SOK S/F 24-18 .0125AUPHBZ
61117-6
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 14-20AWG GOLD CRIMP Power to the Board MNL SOK SF 20-14 .01 5000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL SOK 20-14 AUPHBZ
60617-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .200" Centerline, 250 V, 13 A max. CONN SOCKET 18-24AWG GOLD CRIMP Mate-n-Lok,Contact,socket,0.20-0.80mm² Power to the Board SCKT 24-18 AWG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Diameter = 2.13 mmLoose PieceContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONTACT, SOCKET, 24-18AWG, CRIMP Connectors,contactsforMATE-N-LOK,socket,24-18AWG TE Connectivity Commercial MATE-N-LOK 系列 母 压接接线端子, 压接, 镀金镀镍触点 CMNL SOK AUBR L/P
61117-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 20-14AWG TIN MNL Contact,crimp,socket,20-14awg Power to the Board SPLIT PIN 24-18 REEL Reel of 5000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONTACT, CRIMP, RECEPTACLE, 20-14AWG CONTACT,SOCKET,MATE-N-LOK,2.13MM,20-14AWG,BRASS TE Connectivity Commercial MATE-N-LOK 系列 母 压接接线端子, 压接, 镀锡触点 CMNL SOK 20-14 TPBR
60619-1
te connectivity / amp

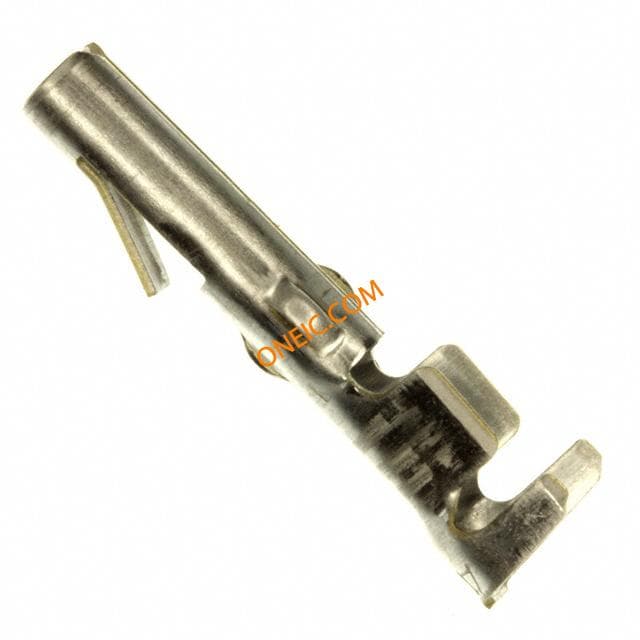

Contact SKT Crimp ST Cable Mount Loose Piece .200" Centerline, 250 V, 13 A max. CONN SOCKET 14-20AWG TIN CRIMP Mate-N-Lok Com contact socket 20-14awg Power to the Board SOCKET 20-14 AWG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Diameter = 2.13 mmLoose PieceContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CRIMP SOCKET, 0.5-2.0MM Contact,Socket,MATE-N-LOK,20-14AWG,Brass Crimp socket 13 A Female 20...14 AWG, 60619-1, TE Connectivity TE Connectivity Commercial MATE-N-LOK 系列 母 压接接线端子, 压接, 镀锡触点 CMNL SOK PTPBR L/P
60617-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .200" Centerline, 250 V, 13 A max. CONN SOCKET 18-24AWG TIN CRIMP Mate-N-Lok Com contact socket 24-18awg Power to the Board SOCKET 24-18 BULK Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Diameter = 2.13 mmLoose PieceContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONTACT, SOCKET, 24-18 AWG, CRIMP Contact,Socket,MATE-N-LOK,24-18AWG,Brass Crimp socket 13 A Female 24...18 AWG, 60617-1, TE Connectivity TE Connectivity Commercial MATE-N-LOK 系列 母 压接接线端子, 压接, 镀锡触点 CMNL SOK SNBR L/P
350638-4
te connectivity / amp

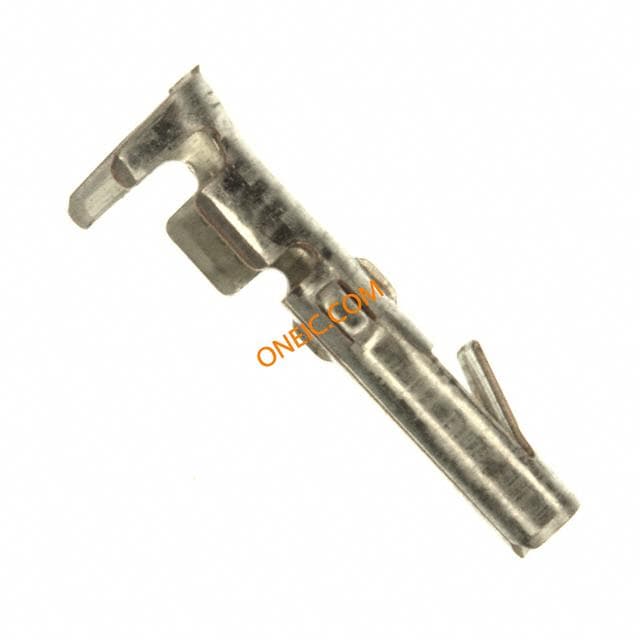

Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 16-18AWG TIN CRIMP Contact female 18-16AWG Mate-n-Lok Power to the Board SOCKET CONTACT 350638-4 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmPackaging Method = Loose PieceContact Type = SocketWire Range = (1) 0.80-.090² + (1) 1.25-1.40² [(1) 18 + (1) 16] mm [AWG], (2) 0.80-0.90² [(2) 18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONTACTFEMALE18-16AWG TE Connectivity Commercial MATE-N-LOK 系列 母 压接接线端子, 压接, 镀锡触点 MNL SOK L/P
