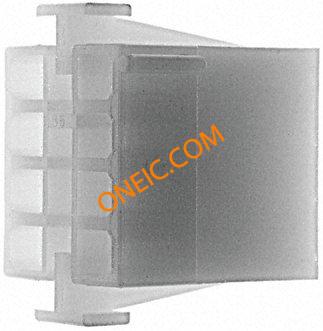

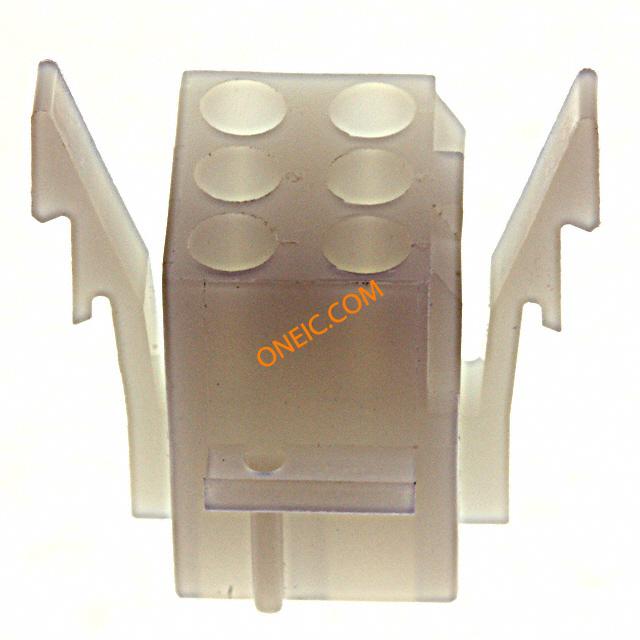

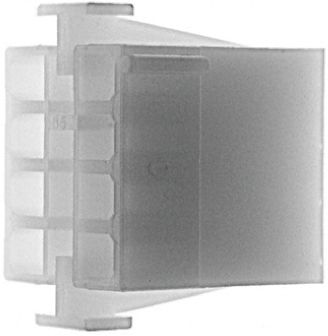

1-480285-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 10 POS 4.95mm ST Individual .200" Centerline, 250 V, 13 A max. CONN PLUG 10 POS MATE-N-LOK Housing, FH, 10 way, Mate-n-Lok, Rec Mate-n-lok,housing,plug,10w skt contact Power to the Board 10 POS SKT HOUSING Conn Housing PL 10 POS 4.95mm ST Individual Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 104.95 x 9.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONNECTOR PLUG & SOCKET Connector;CommercialMATE-N-LOK;Plug;10;Nylon;13A(Max.);250VAC;AMP TE Connectivity Commercial MATE-N-LOK 系列 2 行 4.95mm 节距 10 路 直 公 PCB 壳体 10P CMNL PLUG HSG M/M NATL |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | Always was RoHS compliant |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 额定电压 | 250 V | 供电电压 | 250 |
| 最大额定电流 | 13 A | 连接器类型 - 电压输入 | Commercial MATE-N-LOK |
机械参数
| 颜色 | Natural | 深度 | 21.59mm |
| 间距 | 4.95 mm | 宽度 | 18.42mm |
| 重量 | 0.018 | 锁定类型 | Positive Lock |
| 包装方式 | Bulk | 导线线规 | 14-30 AWG |
| 排间距 | 0.360" (9.14mm) | 触头类型 | Female Socket |
| 柱间距 | 4.95 x 9.14 [.195 x .360] | 安装类型 | Straight |
| 连接器类型 | Plug | 紧固类型 | Latch Lock |
| 安装样式 | Free Hanging | 排数 | 2 |
| 封装形式 | Plug | 壳体材料 | Nylon |
| 包装数量 | One Piece Housing | 端接样式 | Wire |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :Nature |
| 触点数 | 10 | 接触件端接 | Crimp |
| 位数 | 10 | 典型触点布局 | Double-Row |
| 接触镀层厚度 | 2.13 [0.084] | 线规或范围 - AWG | 30-14 |
产品信息
| 备注 | Housing accepts double wire applications where individual insulation diameters | 类型 | Housing |
| 连接器性别 | PL | 系列 | MATE-N-LOK |
| 产品子类型 | Housing | 电路数 | 10 |
| 适用产品/相关产品 | 5.08 mm Centerline Soft Shell Pin & Socket Connector | ||
相关型号
61117-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Pin & Socket Connectors SOK 20-14 BR .200" Centerline, 250 V, 13 A max. CONN SOCKET 14-20 AWG CRIMP 61117-2 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Commercial Mate-N-Lok Pre-Tin 20-14 AWG Discrete Wire Crimp Socket Contact CMNL SOK 20-14 BR
350219-1
te connectivity / amp

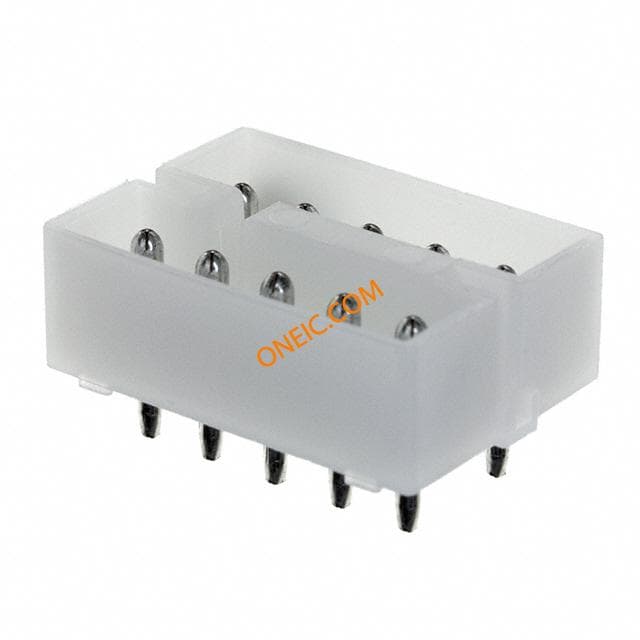

Conn Power HDR 10 POS 4.95mm Solder ST Thru-Hole 10 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER 10POS VERT DUAL TIN Power to the Board CONN PCM 10 POS TIN Conn Power HDR 10 POS 4.95mm Solder ST Thru-Hole 10 Terminal 1 Port Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 104.95 x 9.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 10P CMNL HDR ASSY PC NATL
61314-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 18-24AWG GOLD CRIMP Power to the Board SOCKET CONTACT 24-18 AWG 61314-5 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL SOK 24-18 AUBR
61173-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Power to the Board SOCKET CONTACT 30-22 .200" Centerline, 250 V, 13 A max. CONN SOCKET 22-30AWG TIN CRIMP Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmLoose PieceContact Type = SocketWire Range = 0.05-0.40² [30-22] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL SOK 30-22 PTPHBZ L/P
1-380991-0
te connectivity / amp
Conn Power PIN 10 POS 4.95mm Solder ST Thru-Hole 10 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER 10 POS TIN PCB MATE-N-LOK 10 Male Straight Heavy Duty Power Connector, Through Hole 13A,250V ac/dc Power to the Board CONN PCM 10 POS TIN Conn Power PIN 10 POS 4.95mm Solder ST Thru-Hole 10 Terminal 1 Port Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 104.95 x 9.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP PLUG & SOCKET CONN, HEADER, 10POS 4.95MM Connector,Shell;CommercialMATE-N-LOK;Pin;10;13;250VAC;Nylon;Natural TE Connectivity Commercial MATE-N-LOK 系列 4.95mm节距 10路 直 PCB 针座, 焊接端接, 13A , 通孔 10P CMNL HDR ASSY NATL
61314-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 24-18AWG M-N-L TIN Contact Crimp socket 24-18AWG Mate-n-Lok Power to the Board SOCKET 22-18 AWG Reel of 7000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONTACT, SOCKET, 24-18AWG, CRIMP CONTACT,SOCKET,MATE-N-LOK,2.13MM,24-18AWG,BRASS TE Connectivity Commercial MATE-N-LOK 系列 母 压接接线端子, 压接, 镀锡触点 CMNL SOK 24-18 TPBR
61117-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 14-20AWG MNL Mate-n-lok socket contact,0.50-2.00mm² Pin & Socket Connectors CMNL SOK 20-14 AUBR 61117-5 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Contact,Socket,20-14AWG,2.13mm null TE Connectivity Commercial MATE-N-LOK 系列 母 压接接线端子, 压接, 镀金镀镍触点 CMNL SOK 20-14 AUBR
2-1586544-0
te connectivity / amp

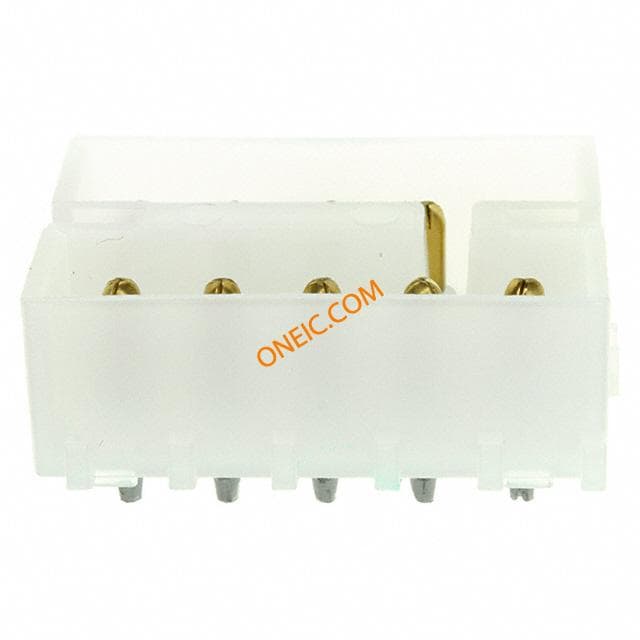

Conn Power HDR 10 POS 4.95mm Solder ST Thru-Hole 10 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER 10 POS GOLD PCB Pin & Socket Connectors 10P HDR ASSY NATL LF Conn Power HDR 10 POS 4.95mm Solder ST Thru-Hole 10 Terminal 1 Port Product Highlights:ConnectorPreloadedHousing Gender = Header - PinContact Gender = PinThrough Hole Contact Termination TypeSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 10P CMNL HDR ASSY NATL LF
