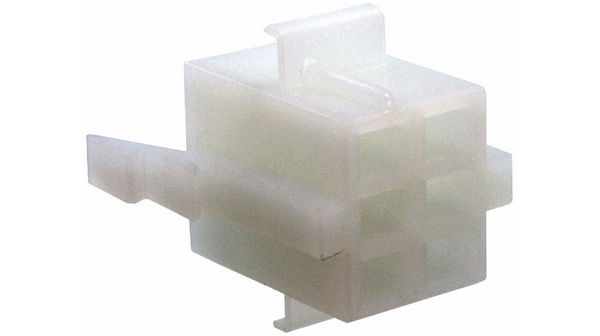

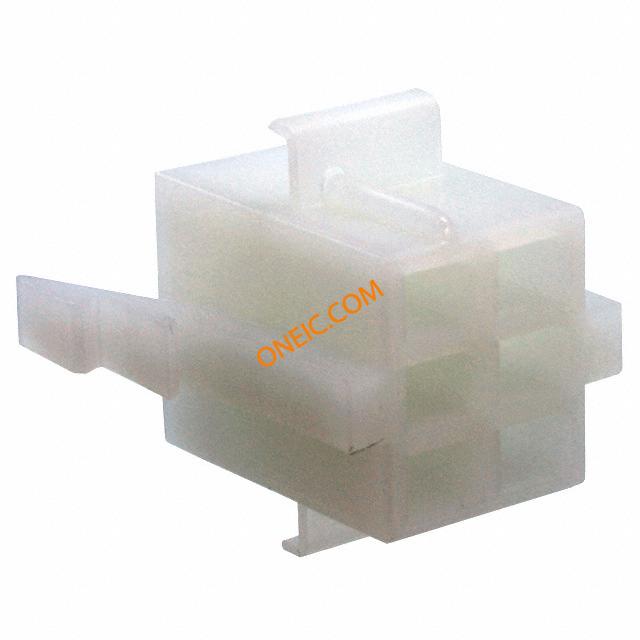

1-480273-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 6 POS 5.13mm ST Individual .200" Centerline, 250 V, 13 A max. CONN PLUG 6 POS MATE-N-LOK Male Compact Power Connector Plug,13A 250V ac/dc Power to the Board SOCKET PANEL 6 CRKTS Conn Housing PL 6 POS 5.13mm ST Individual Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 65.13 x 6.10 mm Centerline, MatrixMatrix Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Connector,SoftShell;CommercialMATE-N-LOK;6;Nylon;0.084;Plug;13A Socket housing Pitch5.13 mm Poles 3 x 2 MATE-N-LOK Commercial, 1-480273-0, TE Connectivity TE Connectivity 插座外壳 插头 公, 13A 250 V 交流/直流, -55 → +105 °C 06P CMNL PLUG HSG P/M NATL |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 已认证, 获得认可 |
| 零件状态 | E28476 | 无铅定义 | Not relevant for lead free process |
| CSA档案号 | LR16455 | 标准编号 | CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-2 |
| 认证机构标志 | 否 | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定电压 | 250 V ac/dc | 极数 | 3 x 2 |
| 供电电压 | 250 | 中心频率 | 带有 |
| 最大额定电流 | 13A | 最小供电电压 | 250VDC/250VAC |
| 连接器类型 - 电压输入 | Commercial MATE-N-LOK | ||
机械参数
| 颜色 | Natural | 间距 | 5.13 mm |
| 密封型 | Not Sealed | 锁定类型 | Positive Lock |
| 包装方式 | Bulk | 导线线规 | 14-30 AWG |
| 排间距 | 0.202" (5.13mm) | 本体尺寸 | .64 – 1.65 mm [ .025 – .065 in ] |
| 触头类型 | Female Socket | 柱间距 | 5.13 x 6.10 [.202 x .240] |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 连接器类型 | Plug | 接触镀层 | Without |
| 紧固类型 | Latch Lock | 安装样式 | Press Fit |
| 排数 | 2 | 封装形式 | Plug |
| 壳体材料 | Nylon | 包装数量 | One Piece Housing |
| 面板安装类型 | 带有 | 连接器 - 电缆 | 插头 |
| 端接样式 | Quick Connect | 第一触头极性 | Pin (Male) |
| 触点数 | 6 | 接触件端接 | Crimp |
| 位数 | 6 | 兼容外壳尺寸（如TM-700等） | 插针（盖帽）护套 |
| 典型触点布局 | Matrix | 接触镀层厚度 | 2.13 [0.084] |
| 线规或范围 - AWG | 30-14 | 第一连接器安装类型 | Panel |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | MATE-N-LOK Commercial |
| CAD图纸 | 3D CAD Model | 产品子类型 | Housing |
| 连接方式 | Wire-Wire | 电路数 | 6 |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | +105°C |
