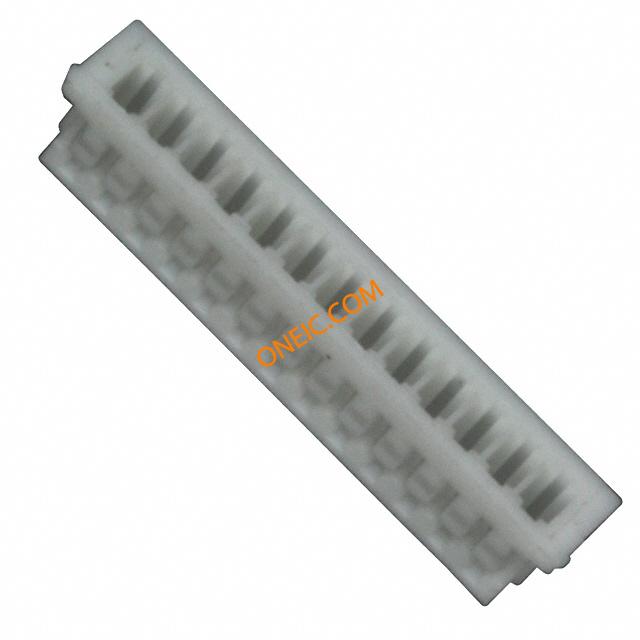

点击放大查看
1-440146-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 13 POS 1.25mm Crimp ST Bag High Performance Interconnects (HPI) CONN RCPT 13POS SGL 1.25MM NATRL Conn Housing RCP 13 POS 1.25mm Crimp ST Bag Product Highlights:1.25 mm CenterlineReceptacleNumber of Positions = 13Housing Color = WhiteNumber of Rows = SingleSearch Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal 1.25mm WTB Socket,Housing,13p |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 供电电压 | 100 VAC | 输入电阻 | 100 |
| 连接器阻抗 | 压接 | 最大额定电流 | 1 |
| 保护额定电压（VPR） | 250 VAC | ||
机械参数
| 颜色 | Natural | 间距 | 1.25 mm |
| 宽度 | .156 in, 3.95 mm | 高度 | 3.15 mm [ .124 in ] |
| 长度 | 18 mm [ .709 in ] | 锁定类型 | 不带 |
| 包装方式 | Bulk | 壳体颜色 | 自然 |
| 导线线规 | 24-30 AWG | 触头类型 | Female Socket |
| 第二连接器 | With | 外壳颜色 | White |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 安装样式 | 不带 | 排数 | 1 |
| 插入件材料 | 铜合金 | 壳体材料 | Thermoplastic |
| 包装数量 | 1000 | 面板安装类型 | 不带 |
| 端接样式 | 插座 | 触点数 | 13 |
| 接触件端接 | Crimp | 位数 | 13 |
| 兼容外壳尺寸（如TM-700等） | 1734260-x、1734261-x、1734598-x、1734829-x | 安装孔直径 | 带有 |
| 中心触点材料 | 1.25 [0.049] | 典型触点布局 | 同轴 |
| 静电放电屏蔽 | 不带 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 可密封 | 否 |
| 产品子类型 | Receptacle | ||
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | -40 – 85 °C [ -40 – 185 °F ] |
