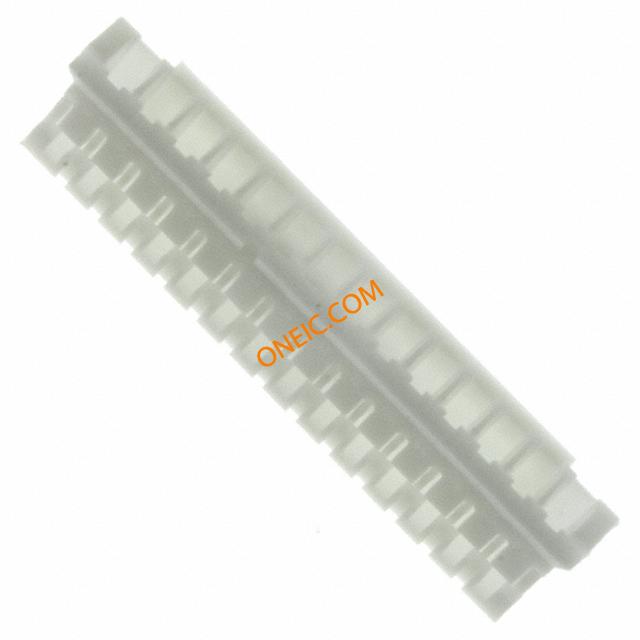

1-440129-4

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 14 POS 2mm Crimp ST Cable Mount Bag High Performance Interconnects (HPI) CONN RCPT HOUSING 14POS 2.00MM Headers & Wire Housings 14 POS RECPT 2.0mm 2.0mm,HSG,14pos
分类	光电子学分立LED指示灯硬件/配件

对参数有疑问？问 AI 助手

商业参数

产品类别	Headers & Wire Housings	标准包装数量	Bulk
工厂包装数量	1000

合规参数

RoHS	Not applicable / RoHS Compliant	无铅定义	Not relevant for lead free process
RoHS/ELV合规状态	RoHS compliant, ELV compliant	材料阻燃等级	UL 94V-0

电气参数

供电电压	250 VAC	输入电阻	1000
连接器阻抗	压接	最大额定电流	3
保护额定电压（VPR）	1000 VAC

机械参数

颜色	Natural	间距	2 mm
宽度	.272 in, 6.9 mm	高度	4.5 mm [ .177 in ]
长度	29.9 mm [ 1.1772 in ]	锁定类型	不带
包装方式	Bulk	壳体颜色	自然
导线线规	30 – 24	触头类型	Female Socket
外壳颜色	Natural	安装类型	Straight
连接器类型	Receptacle	安装样式	Wire
排数	1	插入件材料	铜合金
锁定特性	带有	壳体材料	Nylon 66
包装数量	1000	面板安装类型	不带
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	14	接触件端接	Crimp
绝缘直径	.9 – 1.5 mm [ .0354 – .059 in ]	位数	14
兼容外壳尺寸（如TM-700等）	440054-x- 440205-x- 1775470-x- 440055-x- 1734827-x- 1775469-x	安装孔直径	带有
中心触点材料	2.00 [0.079]	典型触点布局	同轴
静电放电屏蔽	不带

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	HPI
可密封	否	产品子类型	Receptacle

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

-25 – 85 °C [ -13 – 185 °F ]

文档与媒体

在线文档

1-440129-4?RQPN=1-440129-4

相关型号

1735801-1

te connectivity / amp

Contact SKT Crimp ST Cable Mount Reel CONN SOCKET 24-30AWG TIN Headers & Wire Housings 2mm CRIMP SOCKET 24-30 AWG Contact SKT Crimp ST Cable Mount Reel Search Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal Contact,Socket,250VAC/250VDC;30-24AWG CONN SOCKET 24-30AWG 2.0mm,Crimp,Contact

¥0.0388

详情

1-440055-4

te connectivity / amp

Conn High Performance Interconnect HDR 14 POS 2mm Solder RA Thru-Hole High Performance Interconnects (HPI) CONN HEADER 14POS R/A 2MM T/H Headers & Wire Housings 14 POS HDR R/A 2.0mm High Performance Interconnects (HPI) Product Highlights:2.00 mm CenterlineConnectorConnector Type = Header - Pin14 PositionsHousing Color = NaturalSearch Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal 2.0mm,HDR,14pos,R/A

¥2.2848

详情

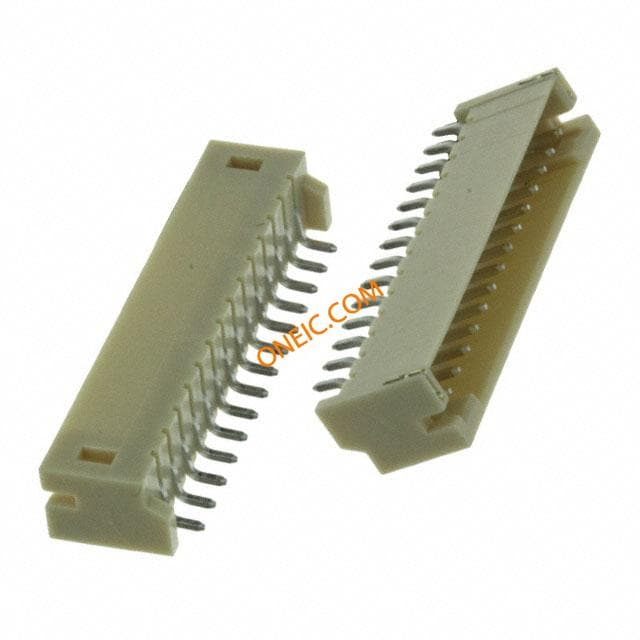

1-1775469-4
