1-440129-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 12 POS 2mm Crimp ST Cable Mount Bag Headers & Wire Housings 2.0mm RCPT 12pos HPI High Performance Interconnects (HPI) CONN RCPT HOUSING 12POS 2.00MM 2.0mm,HSG,12pos |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 供电电压 | 250 VAC | 输入电阻 | 1000 |
| 连接器阻抗 | 压接 | 最大额定电流 | 3 |
| 保护额定电压（VPR） | 1000 VAC | ||
机械参数
| 颜色 | Natural | 间距 | 2 mm |
| 宽度 | .272 in, 6.9 mm | 高度 | 4.5 mm [ .177 in ] |
| 长度 | 25.9 mm [ 1.0197 in ] | 锁定类型 | 不带 |
| 包装方式 | Bulk | 壳体颜色 | 自然 |
| 导线线规 | 30 – 24 | 触头类型 | Female Socket |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 连接器类型 | Receptacle | 安装样式 | Wire |
| 排数 | 1 | 插入件材料 | 铜合金 |
| 锁定特性 | 带有 | 壳体材料 | Nylon |
| 包装数量 | 1000 | 面板安装类型 | 不带 |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 12 | 接触件端接 | Crimp |
| 绝缘直径 | .9 – 1.5 mm [ .0354 – .059 in ] | 位数 | 12 |
| 兼容外壳尺寸（如TM-700等） | 440054-x- 440205-x- 1775470-x- 440055-x- 1734827-x- 1775469-x | 安装孔直径 | 带有 |
| 中心触点材料 | 2.00 [0.079] | 典型触点布局 | 同轴 |
| 静电放电屏蔽 | 不带 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | HPI |
| 可密封 | 否 | 产品子类型 | Receptacles / Sockets - Housings |
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | -25 – 85 °C [ -13 – 185 °F ] |
相关型号
1-440055-2
te connectivity / amp
Conn High Performance Interconnect HDR 12 POS 2mm Solder RA Thru-Hole High Performance Interconnects (HPI) CONN HEADER 12POS R/A 2MM T/H Headers & Wire Housings 2.0mm HDR 12pos R/A HPI High Performance Interconnects (HPI) Product Highlights:2.00 mm CenterlineHeaderNumber of Positions = 12Housing Color = NaturalRight Angle Mount AngleSearch Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal 2.0mm,HDR,12pos,R/A

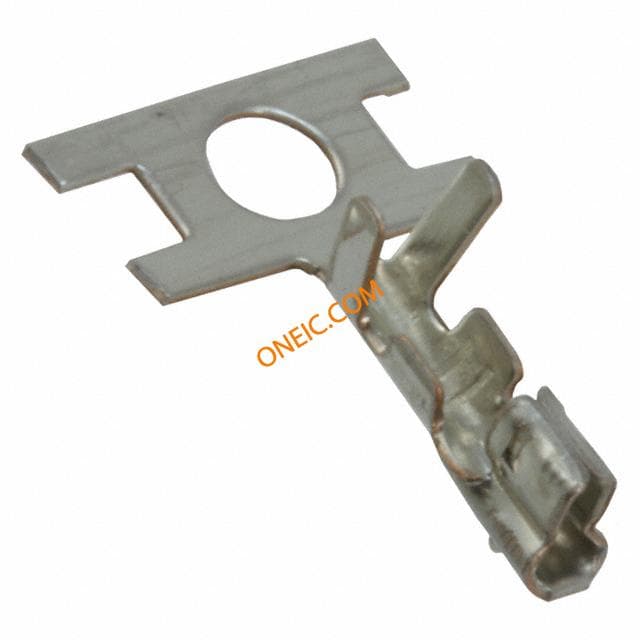

1735801-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel CONN SOCKET 24-30AWG TIN Headers & Wire Housings 2mm CRIMP SOCKET 24-30 AWG Contact SKT Crimp ST Cable Mount Reel Search Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal Contact,Socket,250VAC/250VDC;30-24AWG CONN SOCKET 24-30AWG 2.0mm,Crimp,Contact
1-1775470-2
te connectivity / amp
Conn Wire to Board HDR 12 POS 2mm Solder ST SMD Reel Miscellaneous Wire to Board Products CONN HEADER 12POS 2MM VERT SMD Headers & Wire Housings 12 POS HDR VERT SMT 2.0mm HPI CONN., 2.0mm, V/T, SMT, 12P, 80u" HPI CONN., 2.0mm, V/T, SMT, 12P, 80u" Search Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal
1-440054-2
te connectivity / amp
Conn Shrouded Header HDR 12 POS 2mm Solder ST Thru-Hole Bag High Performance Interconnects (HPI) CONN HEADER 12POS 2MM VERT T/H Headers & Wire Housings 2.0mm HDR 12pos VERT HPI High Performance Interconnects (HPI) Product Highlights:2.00 mm CenterlineHeaderNumber of Positions = 12Housing Color = NaturalVertical Mount AngleSearch Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal 2.0mm,HDR,12pos,Vertical
1-1734827-2
te connectivity / amp
Conn High Performance Interconnect HDR 12 POS 2mm Solder RA SMD Reel Headers & Wire Housings 12 POS HDR R/A SMT 2.0mm CONN HEADER 12POS 2MM R/A SMD Headers & Wire Housings 12 POS HDR R/A SMT 2.0 WTB HDR .5 SQ RA SMT 12P 2.0 WTB HDR .5 SQ RA SMT 12P Search Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal

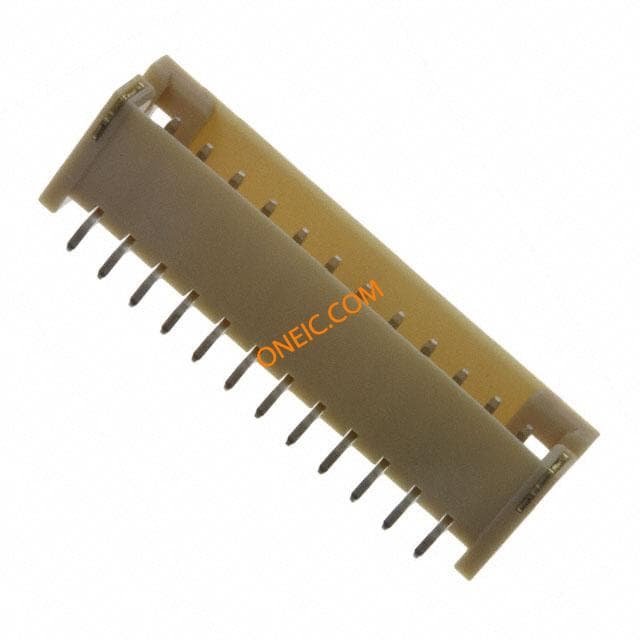

1-1775469-2
