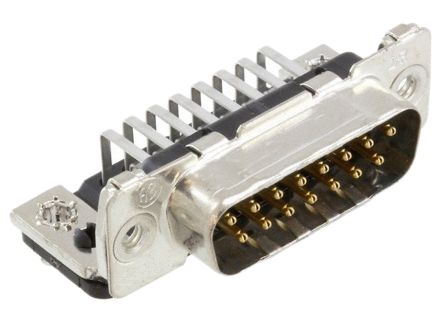

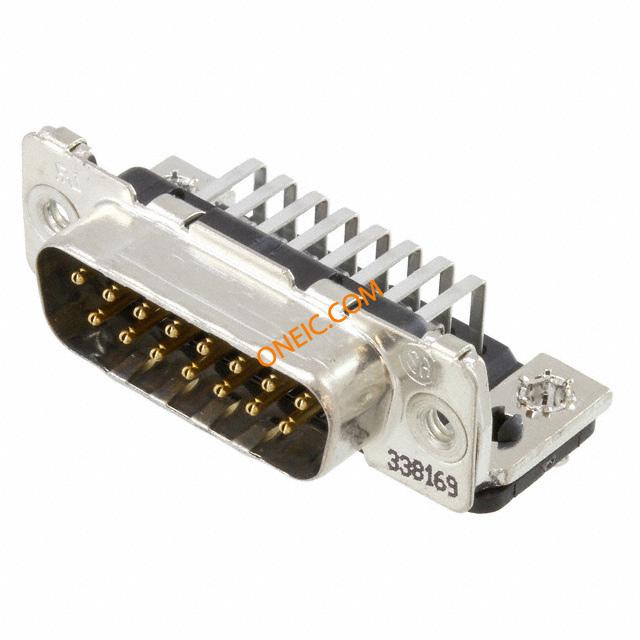

1-338169-2

点击放大查看

1-338169-2

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature PIN 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors 15P HDP20 PLUG ASSY Standard Board Mount Connectors CONN PLUG 15POS R/A 30GOLD T/H Conn D-Subminiature PIN 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port Product Highlights:Number of Positions = 15PlugPCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D-Sub plug 15P, 1-338169-2, TE Connectivity TE Connectivity Amplimite HD-20 系列 2.74mm 节距 15 路 直角 通孔安装 PCB D-sub 连接器 插头 15P HDP20 PLUG ASSY
分类
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Standard Connectors标准包装数量Trays
工厂包装数量45

合规参数

RoHSRoHS Compliant By Exemption抗辐射加固No
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c认可国家DIN 41652
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94 V-0

电气参数

频率2.74接地方式Without
电容12.4额定电压125V
极数15连接器阻抗螺纹插针，4-40 UNC, 螺纹插针，4-40 UNC
最大额定电流6A

机械参数

颜色Black深度21.3 mm
间距2.74 mm宽度12.39mm
高度13.6 mm长度39.52mm
密封型No外形尺寸(长x宽)2
镀层Tin材料（通用）Phosphor Bronze
占位面积10.31 [.406]包装方式Tray
壳体颜色33.3外壳尺寸2
方向直角端接方式Solder
触头类型Signal标称内径.7
外壳表面处理锡第二连接器With
安装类型Through Hole外壳镀层Bright Tin
连接器类型Plug, Male Pins接触镀层Gold
法兰特征Housing/Shell (4-40)接地类型Without
安装样式Through Hole排数2
外壳材料（壳体）Steel电路板厚度0.062 [1.57]
连接器样式D-Sub插入件材料Tin
锁定特性Threaded Insert, 4-40 UNC触头材料Phosphor Bronze
壳体材料Polyester GF总长度39.2 mm
安装特性板锁包装数量55
面板安装类型Without尺寸/外形39.52 x 12.39 x 20.59mm
接地凹痕Without端接样式Through Hole
连接器颜色None外径19.2
触点数15位数15
外壳尺寸-插件Full Metal第一连接器极性Male
绝缘材料 - 材质Glass-fibre-reinforced Polyester安装孔直径3.1
外壳材料及表面处理Steel, Tin Plated端子柱长度3.20 [0.126]
接触镀层厚度30µin (0.76µm)外壳与棱镜材料否
后壳材料及镀层锡外壳尺寸，连接器布局2 (DA, A)

产品信息

制造商7.3类型D-Subminiature
连接器性别PIN系列HD-20
产品特性Board Lock, Grounding Indents可密封否
制造商全称AMP预装是
产品子类型连接器放大器类型39.2
端口数1 Port其他规格是

环境参数

额定等级2 (> 200 mating cycles)工作范围Level 2
工作温度-55°C ~ 105°C封装热阻1.57 mm [ .062 in ]
