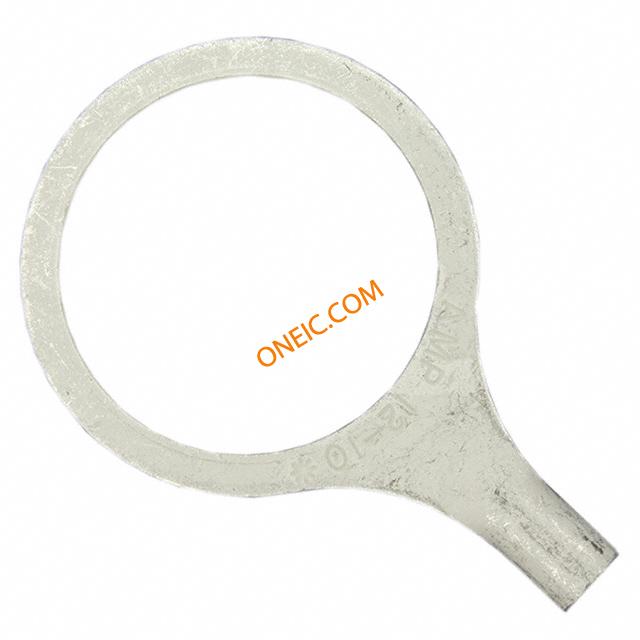

1-320765-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal 10-12AWG 48.16mm 31.75mm Tin Loose Piece Terminals RING-TRM 12-10 7/8 N-I SN Ring and Spade Tongue Terminals CONN RING TONG 12-10AWG M22 Ring Tongue Terminal 10-12AWG 48.16mm 31.75mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = SOLISTRANDBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B RING TONGUE TERMINAL 10-12 AWG 7/8" STUD SOLISTRAND ROHS TERMINAL,SOLIS R 12-10 7/8 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 其他名称 | 13207651 |
| 产品类别 | Terminals | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
电气参数
| 核心类型 | Closed Barrel | ||
机械参数
| 形状 | RING-048 | 表面处理 | Tin |
| 重量 | 8.049 | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 1.07 [0.042] |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Not Insulated | 螺钉尺寸 | 8-Jul |
| 导线线规 | 10-12 AWG | 端接方式 | Crimp |
| 触点形状 | Ring Tongue | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 22 mm | 端子类型 | Circular |
| 电缆材料 | Solid or Stranded | 接触镀层 | Tin |
| 线束直径 | 3.28 mm | 连接器样式 | Straight |
| 触头材料 | Copper | 总长度 | 1.896" (48.16mm) |
| 包装数量 | Loose Piece | 筒径 | Standard |
| 绝缘高度 | Non-Insulation Support | 端接样式 | 环形端子 |
| 材料厚度 | 1.07 mm [ .042 in ] | 绝缘材料 - 类型 | No |
| 位数 | 1 | 镀层厚度（通用） | 2.54 |
| 外缘宽度 | 1.250" (31.75mm) | 筒体内径 | 3.28 mm [ .129 in ] |
| 螺纹/螺钉/孔尺寸 | 23.01 mm [ .906 in ] | 供应商器件封装 | SOLISTRAND |
| 线规或范围 - AWG | 5,180 â 13,100 | 线规或范围 - mm² | 3.00-6.00² [12-10] |
| 非扩张内径 | 3.28 mm [ .129 in ] | ||
产品信息
| 类型 | Ring Tongue Terminal | 产品特性 | Brazed Seam, Serrated Termination |
| 可密封 | 否 | UNSPSC代码 | 31163100 |
| 制造商全称 | AMP | ||
