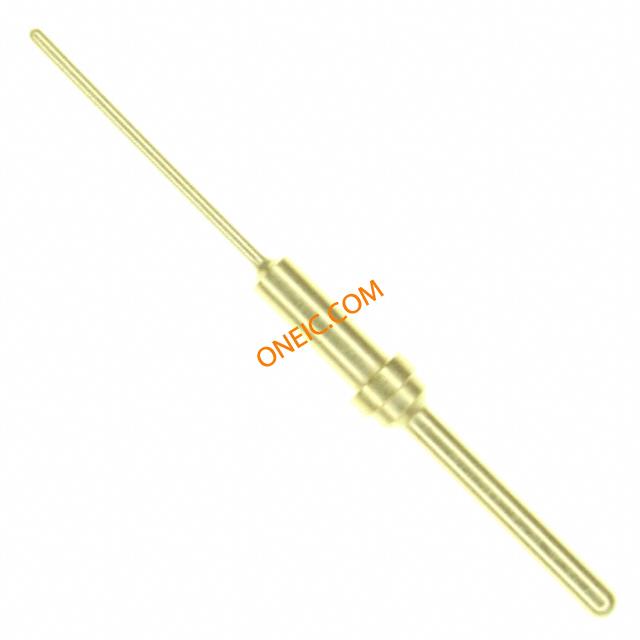

1-212565-0

制造商	TE Connectivity Ltd.
描述	Contact PIN Crimp ST Cable Mount Loose Piece D-Sub Contacts SIZE 20 POSTED PIN Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONTACT PIN SIZE 20 GOLD PCB AMPLIMITE Pin Contact size 20 posted 1-212565-0 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = 109Terminate To Printed Circuit BoardPinTermination (Solder) Post Length = 8.38 mmSearch Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub AMPLI,PINCONT,SZ20,AUPLTD 109 Series Subminiature Printed Circuit Board Crimp Pin Contact AMPLIMITE,PIN CONT,SZ 20,AU PLTD
分类	连接器解决方案接触件接触件（通用）

对参数有疑问？问 AI 助手

商业参数

其他名称	12125650	产品类别	D-Sub Contacts
标准包装数量	Bulk

合规参数

RoHS	RoHS Compliant By Exemption	资质认证	No
无铅定义	Wave solder capable to 240Â°C, Wave solder capable to 260Â°C, Wave solder c	RoHS/ELV合规状态	RoHS compliant, ELV compliant
认证机构标志	No

电气参数

最大额定电流

否

输出高/低电流

机械参数

直径	0.51 [0.020]	包装方式	Bulk
端接方式	Crimp	触点形式	Machined
触点尺寸	20	触头类型	Signal
端子尺寸	20	连接器类型	Connector D-Subminiature
接触镀层	Gold Over Copper	插入件材料	铜合金
触头材料	Copper Alloy	包装数量	Loose Piece
主要材料	Contact	端接样式	Solder
第一触头极性	Pin (Male)	接触件尾部长度	20
接触件端接	Solder, PCB	兼容外壳尺寸（如TM-700等）	HD-20 插塞式连接器
端子柱长度	8.38 [0.330]	接触镀层厚度	.02 mm [ .51 in ]
触点材料 - 镀层	Gold

产品信息

类型	Signal	连接器性别	PIN
系列	109	制造商全称	109Series
产品子类型	Contact	连接类型	Printed Circuit Board
适用产品/相关产品	MIL-C-24308,MIL-C-39029
