1-208224-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC SKT 37 POS Solder ST Thru-Hole 37 Terminal 1 Port Standard Circular Connector CPC PSTD RCPT ASSY 23-37 SL LF CPC Connectors CONN RCPT SCKT CPC 37POS SER 1 CPC PSTD RCPT ASSY 23-37,SL LF CPC PSTD RCPT ASSY 23-37,SL LF Search Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC |
| 分类 |
商业参数
| 商标名 | CPC Series 1 | 标准包装规格 | 21 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | Trays |
合规参数
| RoHS | RoHS Compliant | 合规性 | No |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 600VAC/DC | 通道数量 | 37 |
| 最大额定电流 | 13A | ||
机械参数
| 密封型 | Yes | 包装方式 | Tray |
| 外壳尺寸 | 23 | 方向 | A |
| 外壳样式 | Receptacle | 端接方式 | Solder |
| 螺纹尺寸 | 1-3/8 - 18 UNEF-2A | 触头类型 | Posted |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 插针或插孔 | Socket | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Tin over Copper | 紧固类型 | Threaded |
| 安装样式 | Panel | 连接器样式 | Receptacle |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 面板安装类型 | Square Flange | 端接样式 | Solder Tail |
| 第一触头极性 | Pin (Male) | 配接方向 | Threaded |
| 触点数 | 37 | 端接表面处理 | Tin |
| 位数 | 37 | 外壳尺寸-插件 | All Plastic |
| 安装孔直径 | 3.81 [.150] | 外壳材料及表面处理 | Thermoplastic |
| 端子柱长度 | 9.35 [0.368] | 接触镀层厚度 | 100µin (2.54µm) |
| 第二连接器安装特性 | Reverse | ||
产品信息
| 备注 | Posts are 0.43 [.017] offset from centerline of contacts. All posts must be ori | 类型 | CPC |
| 连接器性别 | RCP | 系列 | CPC |
| 钥匙类型 | A | 预加载 | Yes |
| 产品子类型 | Connectors | 其他规格 | Without |
| 转换前位置数 | 23 | ||
环境参数
| 密封等级 | Peripheral | 工作温度 | -40°C ~ 105°C |
相关型号
206305-4
te connectivity / amp

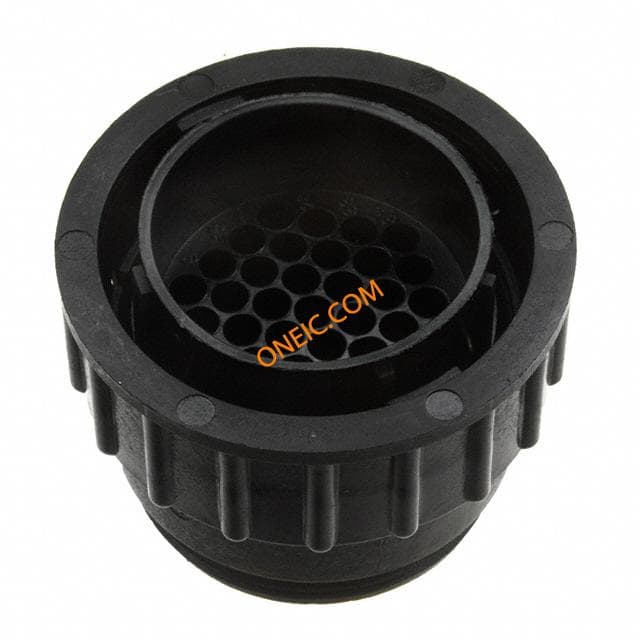

Conn CPC PIN 37 POS Crimp ST Cable Mount 37 Terminal 1 Port Standard Circular Connector PLUG ASSY SZ 23-37 CPC Connectors CONN PLUG 37POS CPC PLASTIC CPC Connectors Product Highlights:ConnectorNumber of Positions = 37PlugFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CPC PLUG ASSEMBLY SIZE 23-37
