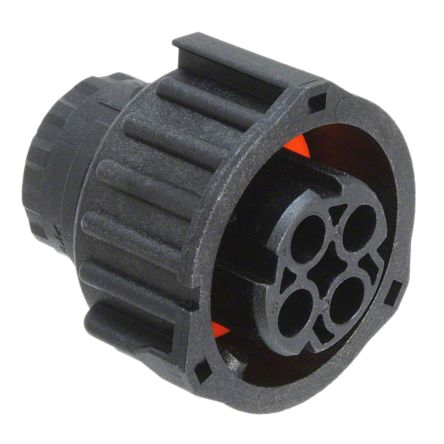

点击放大查看
1-1813099-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing SKT 4 POS Crimp ST Cable Mount Loose Piece Automotive Connectors 2.5MM SOCKET HSG ASY BLACK 4 POS CONN PLUG HSING SKT 4POS CRIMP Conn Housing SKT 4 POS Crimp ST Cable Mount Loose Piece Product Highlights:HousingProduct Series = 2.5 mm SystemAccepts Contact Gender = SocketCircular Contact Layout4 PositionsSearch Keywords:DIN 72585, highly stressed, truck, Magnet valves, sensors, ABS, rear lights TE Connectivity 4路 面板安装 直向 圆形连接器 插座 , 母触点, 快速连接接合 2.5mm SOCKET HSG ASSEMBLY(BLACK 4 POS) |
| 分类 |
商业参数
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 12 V 直流 | 供电电压 | 12 |
| 连接器阻抗 | 否 | ||
机械参数
| 颜色 | 黑色 | 间距 | 7 mm [ .276 in ] |
| 宽度 | 31 mm [ 1.22 in ] | 高度 | 32.9 mm [ 1.295 in ] |
| 长度 | 32.9 mm [ 1.295 in ] | 包装方式 | Bulk |
| 出线方向 | 否 | 方向 | A |
| 触点尺寸 | 2.5mm | 触头类型 | Crimp |
| 安装类型 | Straight | 连接器类型 | Plug for Female Contacts |
| 紧固类型 | Bayonet Lock | 排数 | 2 |
| 端子样式 | Yes | 触头材料 | PBT GF |
| 壳体材料 | 聚碳酸酯 (PBT) | 包装数量 | 100 |
| 主要材料 | PBT GF | 端接排数 | 焊接 |
| 连接器 - 电缆 | No | 连接器间距 | .236, .307 |
| 触点数 | 4 | 位数 | 4 |
| 外壳材料及表面处理 | Polybutylene Terephthalate (PBT) | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | SKT | 极性 | 否 |
| 可密封 | 是 | ||
环境参数
| 防护等级 | IP67/69 - Dust Tight, Waterproof | 工作温度 | +120°C |
