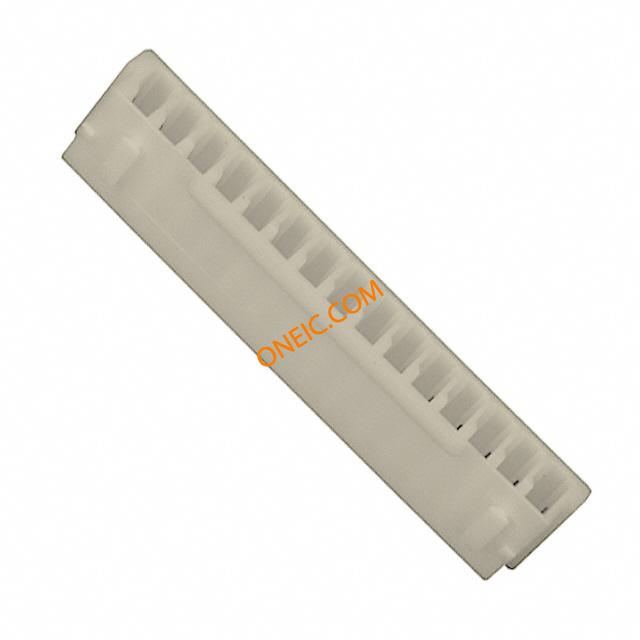

1-179228-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 15 POS 2mm Crimp ST Cable Mount 2mm AMP CT CONN RCPT 15POS SGL CRIMP 2MM Receptacle housing, 2mm, 15 way, CT Headers & Wire Housings RCPT 15 POS CRIMP 2mm Conn Housing RCP 15 POS 2mm Crimp ST Cable Mount Product Highlights:ConnectorConnector Type = CrimpMating Type = ReceptacleNumber of Positions = 15Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, Housingrcpt.15way,2mmpitch,white TE Connectivity AMP CT 系列 1 行 2mm 节距 15 路 直 母 压接连接器外壳 CT CRIMP-2 REC HSG 15P NATURAL |
| 分类 |
商业参数
| 商标名 | Common Termination | 其他名称 | A98615 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Not applicable / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| UL档案号 | E28476 | CSA档案号 | LR 7189 |
| 标准编号 | CSA, UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 供电电压 | 125 VAC, 125 VDC | 输入电阻 | 1000 |
| 连接器阻抗 | 压接 | 最大额定电流 | 4 |
| 保护额定电压（VPR） | 5000 VAC | ||
机械参数
| 颜色 | Natural | 深度 | 6.6mm |
| 间距 | 2 mm | 形状 | 矩形 |
| 宽度 | 4.6mm | 高度 | 6.6 mm [ .26 in ] |
| 长度 | 32mm | 包装方式 | Bulk |
| 壳体颜色 | 自然 | 导线线规 | 22-30 AWG |
| 方向 | 直 | 触头类型 | Female Socket |
| 第二连接器 | Without | 外壳颜色 | Natural |
| 安装类型 | Straight | 连接器类型 | Crimp |
| 安装样式 | Wire | 排数 | 1 |
| 连接器用途 | Receptacle | 壳体材料 | Nylon |
| 总长度 | 2.00 [0.079] | 包装数量 | 1000 |
| 面板安装类型 | Without | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 触点数 | 15 |
| 接触件端接 | Crimp | 位数 | 15 |
| 触头长度-柱 | 信号（数据） | 安装孔直径 | 带有 |
| 典型触点布局 | 同轴 | 静电放电屏蔽 | 不带 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | 1-179228 |
| 可密封 | 否 | 产品子类型 | Connector |
| 连接类型 | Wire | 适用产品/相关产品 | Wire-to-Board Connector |
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | -30 – 105 °C [ -22 – 221 °F ] |
