点击放大查看

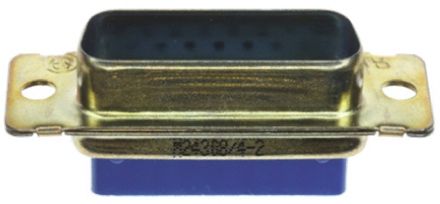

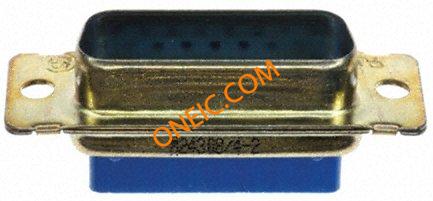

1-1757819-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 50 POS Crimp ST Panel Mount 50 Terminal 1 Port Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 AMPLIMITE 109 d-sub cable plug, 50 pin Conn D-Subminiature PIN 50 POS Crimp ST Panel Mount 50 Terminal 1 Port Product Highlights:ConnectorProduct Series = 109Housing Gender = PlugContact Gender = PinDensity = StandardSearch Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub D SUB SHELL, PLUG, 50POS, STEEL CONN D-SUB PLUG 50POS CRIMP Conn;D-Sub;CablePlug;50Pos;STR;109Series;Crimp;20AWG TE Connectivity AMPLIMITE 109系列 50路 直 军用压接 D-Sub 连接器, 插头 AMPLIMITE,ASY,PLUG,STD,109,ZN,5,CT |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Compliant | 标准 | MIL-C-24308 |
| 海关税号 | 85369010 | 抗辐射加固 | No |
| 资质认证 | No | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | Yes |
电气参数
| 连接器阻抗 | No | 最大额定电流 | 7.5A |
机械参数
| 颜色 | Blue | 深度 | 16.81mm |
| 宽度 | 15.75mm | 高度 | 15.75 mm |
| 长度 | 67.31mm | 重量 | 0.023 |
| 材料（通用） | Stainless Steel | 包装方式 | Bulk |
| 外壳尺寸 | 5 | 导线线规 | 20 |
| 端接方式 | Crimp | 触点尺寸 | 20 |
| 触头类型 | Crimp Snap-in | 非磁性 | No |
| 安装类型 | Straight | 外壳镀层 | Zinc |
| 行程角度 | Straight | 连接器类型 | Crimp |
| 接触镀层 | Gold over Nickel | 法兰特征 | Housing/Shell (Unthreaded) |
| 安装样式 | Mounting Holes | 引脚数 | With |
| 排数 | 3 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub | 本体材料 | :Metal |
| 触头材料 | Copper Alloy | 壳体材料 | PET |
| 总长度 | 67.31 mm | 主要材料 | D-Subminiature |
| 尺寸/外形 | 67.31 x 15.75 x 16.81mm | 触点数 | 50 |
| 位数 | 50 | 外壳尺寸-插件 | :5 |
| 衬套/护套类型 | No | 安装孔直径 | 3.05 [.120] |
| 外壳材料及表面处理 | Steel, Yellow Chromate Plated Zinc | 外壳尺寸，连接器布局 | 5 (DD, D) |
产品信息
| 备注 | Size 20 contacts supplied with connectors are loose piece. | 类型 | D-Subminiature |
| 连接器性别 | Plug | 系列 | 109 |
| 密度 | Standard | 制造商全称 | AMP |
| 产品子类型 | Connector | 连接类型 | Wire |
| 端口数 | 1 Port | 设备部件号 | M24308/4-5 |
| 适用产品/相关产品 | :Size 20 Crimp Snap-in Contacts | ||
环境参数
| 工作温度 | +125°C | ||
