点击放大查看

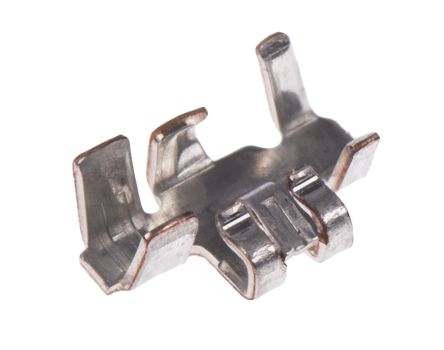

1-175102-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip 2mm AMP CT CONN CONTACT 22-26AWG TIN CRIMP Crimp socket contact, 22-26 AWG, CT Headers & Wire Housings RECEPTACLE CONTACT Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactConnector Type = CrimpMating Type = ReceptacleTerminate To WireWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CONTACT, SOCKET, CRIMP CONTACT,CRIMP,2MMCT,RECEPTACLE,26-22AWG TE Connectivity AMP CT 系列 母 压接接线端子, 压接, 镀锡触点 AMP CT CRIMP REC CONTACT |
| 分类 |
商业参数
| 商标名 | Common Termination | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 20000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 额定电压 | 125 V | 接触电阻 | 20mΩ |
| 最大额定电流 | 4 A | 最小供电电压 | 125VAC |
机械参数
| 间距 | Not Required mm | 高度 | 1.4 mm |
| 重量 | 0 | 包装方式 | Tape & Reel (TR) |
| 导线线规 | 22-26 AWG | 端接方式 | Crimp |
| 触头类型 | Signal | 外壳颜色 | Not Required |
| 安装类型 | Straight | 插针或插孔 | Socket |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Pre-Tin |
| 安装样式 | Cable | 连接器用途 | Receptacle |
| 触头材料 | Phosphor Bronze | 壳体材料 | Not Required |
| 总长度 | 2.00 [0.079] | 包装数量 | Strip |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | Not Required | 接触件端接 | Crimp |
| 绝缘直径 | 1.02 â 1.50 [0.040 â 0.059] | 线规或范围 - AWG | :26AWG |
| 线规或范围 - mm² | 0.12-0.40² [26-22] | ||
产品信息
| 类型 | Contact | 连接器性别 | SKT |
| 系列 | AMP CT | 产品子类型 | Contact |
| 连接类型 | Wire | ||
环境参数
| 工作温度 | +105°C | ||
