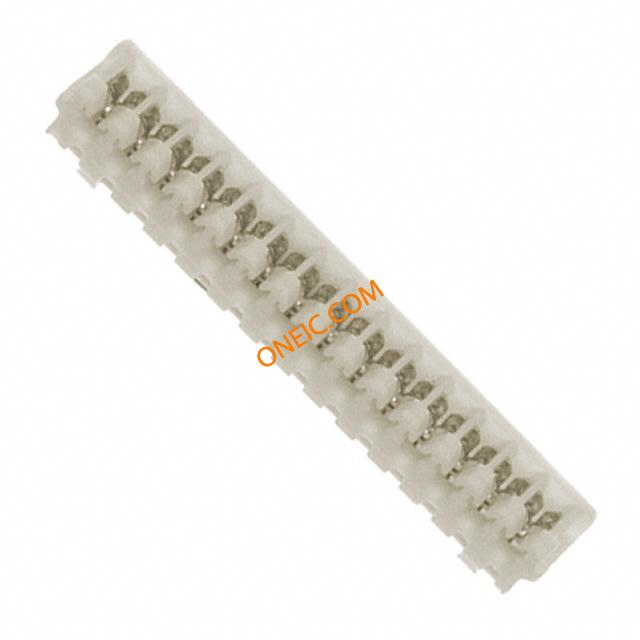

1-173977-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector RCP 14 POS 2mm IDT ST Cable Mount Bag/Box 2mm AMP CT CONN RCPT 14POS 28-26AWG 2MM Headers & Wire Housings RCPT 14 POS 2mm Conn IDC Connector RCP 14 POS 2mm IDT ST Cable Mount Bag/Box Product Highlights:ConnectorConnector Type = Blindmate, MT (Mass Termination)Mating Type = ReceptacleNumber of Positions = 14Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CTCONNMTRECASSY14P CT CONN MT REC ASSY 14P |
| 分类 |
商业参数
| 商标名 | Common Termination | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | IEC950 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 250V(Power),30V(Signal) | 连接器阻抗 | 刺破式压接 (IDC) |
| 最大额定电流 | 10A(Power),2A(Signal) | ||
机械参数
| 颜色 | Natural | 间距 | 2 mm |
| 包装方式 | Bulk | 导线类型 | Discrete or Ribbon Cable |
| 电缆类型 | Discrete or Ribbon Cable | 导线线规 | 26-28 AWG |
| 端接方式 | IDT | 触点形式 | Female Socket |
| 触头类型 | Female Socket | 外壳颜色 | White |
| 安装类型 | Free Hanging (In-Line) | 行程角度 | Straight |
| 连接器类型 | IDC Mass Termination | 接触镀层 | Pre-Tin |
| 安装样式 | Wire | 排数 | 1 |
| 连接器用途 | Receptacle | 触头材料 | Phosphor Bronze |
| 壳体材料 | PBT - GF | 总长度 | 2.00 [0.079] |
| 面板安装类型 | Without | 主要材料 | HighCurrent |
| 电缆端接方式 | IDC | 插针孔直径 | 0.079" |
| 端接样式 | IDC | 第一触头极性 | Socket (Female) |
| 触点数 | 14 | 绝缘直径 | 0.85 â 1.05 [0.034 â 0.041] |
| 位数 | 14 | 安装孔直径 | 带有 |
| 线规或范围 - mm² | 0.08-0.15² [28-26] | ||
产品信息
| 类型 | IDC Connector | 连接器性别 | RCP |
| 系列 | AMP CT | 产品特性 | Closed End |
| 主要用途 | Closed End | 制造商全称 | MTSeries |
| 产品子类型 | Connector | 连接类型 | Wire |
| 输出配置 | Free Hanging (In-Line) | ||
