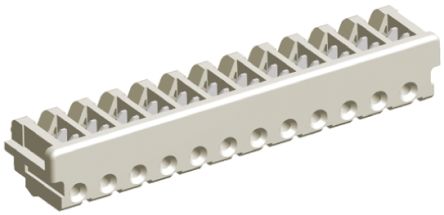

点击放大查看
1-173977-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector RCP 12 POS 2mm IDT ST Cable Mount Bag/Box 2mm AMP CT CONN RCPT 12POS 28-26AWG 2MM Receptacle assembly,MT,2mm,IDC,12 way,CT Headers & Wire Housings CT CONN MT REC ASSY Conn IDC Connector RCP 12 POS 2mm IDT ST Cable Mount Bag/Box Product Highlights:ConnectorConnector Type = Blindmate, MT (Mass Termination)Mating Type = ReceptacleNumber of Positions = 12Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, WIRE-BOARD CONN, RECEPTACLE, 12POS, 2MM CTCONNMTRECASSY12P TE Connectivity AMP CT 系列 12路 2mm节距 直角 母 IDC 连接器 , 电缆安装 CT CONN MT REC ASSY 12P |
| 分类 |
商业参数
| 商标名 | Common Termination | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | IEC950 |
| 海关税号 | 85366930 | 无铅定义 | Not relevant for lead free process |
| 认证机构 | UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - AMP CT Series | 额定电压 | 125 V ac |
| 最大额定电流 | 2/Contact A | 最小供电电压 | 125VAC |
机械参数
| 颜色 | Natural | 深度 | 5.1 mm |
| 间距 | 2 mm | 高度 | 4.6 mm |
| 重量 | 1 | 包装方式 | Bulk |
| 导线类型 | Discrete or Ribbon Cable | 导线线规 | 26-28 AWG |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 外壳颜色 | White | 安装类型 | Free Hanging (In-Line) |
| 行程角度 | Straight | 连接器类型 | IDC Mass Termination |
| 接触镀层 | Pre-Tin | 安装样式 | Wire |
| 排数 | 1 | 连接器用途 | Receptacle |
| 触头材料 | Phosphor Bronze | 壳体材料 | PBT - GF |
| 总长度 | 2.00 [0.079] | 包装数量 | 1,000 |
| 面板安装类型 | Without | 主要材料 | HighCurrent |
| 电缆端接方式 | IDC | 插针孔直径 | 0.079" |
| 端接样式 | IDC | 第一触头极性 | Socket (Female) |
| 触点数 | 12 | 接触件端接 | :IDC / IDT |
| 绝缘直径 | 0.85 â 1.05 [0.034 â 0.041] | 位数 | 12 |
| 线规或范围 - mm² | 0.08-0.15² [28-26] | ||
产品信息
| 类型 | IDC Connector | 连接器性别 | RCP |
| 系列 | AMP CT | 产品特性 | Closed End |
| 制造商全称 | MTSeries | 产品子类型 | Connector |
| 连接类型 | Wire | ||
环境参数
| 工作温度 | -40C to 105C | ||
