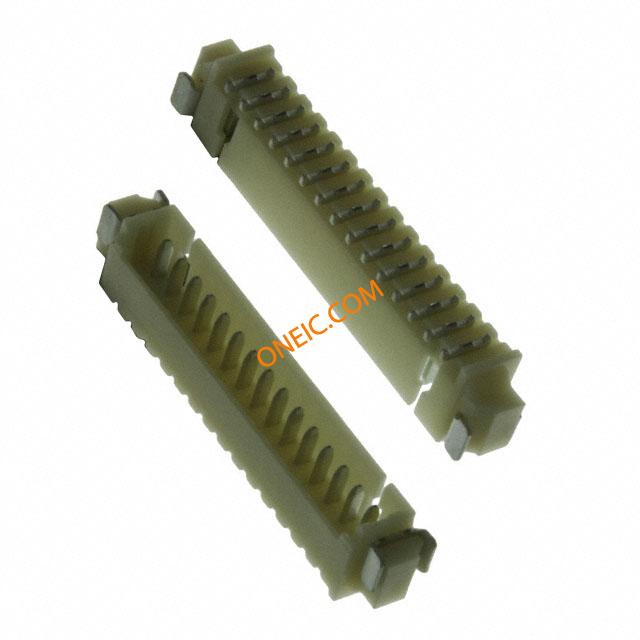

点击放大查看
1-1734261-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn High Performance Interconnect HDR 15 POS 1.25mm Solder RA SMD T/R High Performance Interconnects (HPI) CONN HEADER 15POS R/A SMD TIN Headers & Wire Housings 15 POS HDR R/A SMT 1.25mm Conn High Performance Interconnect HDR 15 POS 1.25mm Solder RA SMD T/R Product Highlights:1.25 mm CenterlineHeaderNumber of Positions = 15Housing Color = NaturalRight Angle Mount AngleSearch Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal 1.25 WTB, HDR, SMT, RA, 15P |
| 分类 |
商业参数
| 其他名称 | A98762CT | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Reflow solder capable to 245°C, Reflow solder capable to 260°C |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 供电电压 | 100 | 接触电阻 | 20 mohm |
| 最大额定电流 | 1/Contact A | 最小供电电压 | 50VDC/50VAC |
机械参数
| 颜色 | Natural | 深度 | 4.7 mm |
| 间距 | 1.25 mm | 宽度 | 4.7 mm [ .185 in ] |
| 高度 | 3.45 mm | 长度 | 24.04 mm [ .946 in ] |
| 包装方式 | Tape & Reel (TR) | 尾部类型 | 直式 |
| 壳体颜色 | 自然 | 电缆类型 | 分离式导线 |
| 导线线规 | 28 | 端接方式 | Solder |
| 触点形式 | Male Pin | 触头类型 | Male Pin |
| 外壳颜色 | Natural | 安装类型 | Right Angle |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin Over Nickel |
| 触点时序 | Without | 安装样式 | Surface Mount |
| 排数 | 1 | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 壳体材料 | High Temperature Thermoplastic |
| 总长度 | 24.04 mm | 框架材料 | Phosphor Bronze |
| 安装特性 | 焊钉 | 包装数量 | 24mm Tape & Reel |
| 面板安装类型 | 表面贴装 | 端接样式 | SMD |
| 第一触头极性 | Pin (Male) | 触点数 | 15 |
| 端接表面处理 | 不带 | 位数 | 15 |
| 兼容外壳尺寸（如TM-700等） | 440146-x | 安装孔直径 | 带有 |
| 中心触点材料 | 1.25 [0.049] | 接触件表面处理 - 配合 | 锡 |
| 典型触点布局 | 同轴 | 表面贴装焊盘尺寸 | Without |
| 接触镀层厚度 | 100µin (2.54µm) | 静电放电屏蔽 | 不带 |
| 每排/每行位置数 | All | ||
产品信息
| 类型 | High Performance Interconnect | 连接器性别 | HDR |
| 系列 | HPI | 产品特性 | Solder Retention |
| 可密封 | 否 | 主要用途 | Solder Retention |
| 产品子类型 | Header | 选择性装载 | No |
| 输出配置 | Surface Mount, Right Angle | 加载位置数 | All |
环境参数
| 工作温度 | -25C to 85C | ||
