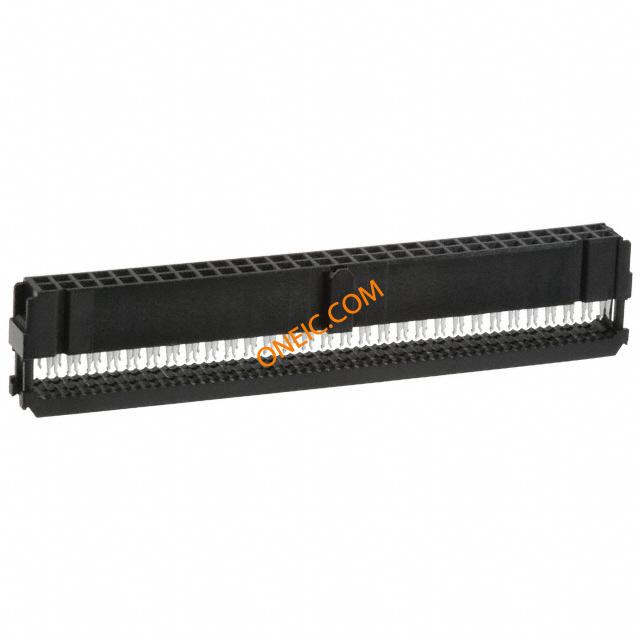

1-1658621-1

点击放大查看

1-1658621-1

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 60 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 60POS W/POL 15 GOLD AMP-LATCH Novo IDC Receptacle 60P Connector; Receptacle; Novo; 60; Gold (15); Tin-Lead; 0.100 in. x 0.100 in. Conn IDC Connector F 60 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 60ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board Connector,Receptacle;Novo;60;Gold(15);Tin-Lead;0.100in.x0.100in. 60 NOVO MIL/CTR 15DP,LEAD FREE
分类
连接器解决方案矩形连接器高可靠性矩形连接器
对参数有疑问？问 AI 助手

商业参数

标准包装数量Bulk

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Not relevant for lead free processUL档案号E28476
CSA档案号LR 7189标准编号CSA, UL
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

额定电压250供电电压250
接触电阻15 mohm输入电阻5000
连接器阻抗刺破式压接 (IDC)最大额定电流1A
最小供电电压250VAC连接器类型 - 电压输入音叉

机械参数

颜色Black深度7.49 mm
间距2.54 mm宽度7.49 mm [ .2949 in ]
高度15.97 mm长度3.18in
底座类型不带包装方式Tube
导线类型Ribbon Cable壳体颜色黑色
出线方向Without电缆类型Ribbon Cable
导线线规26-28 AWG排间距0.100" (2.54mm)
端接方式IDT触点形式Female Socket
触头类型Female Socket引脚间距0.100" (2.54mm)
极化Center & Military第二连接器Without
外壳颜色Black安装类型No
电缆端类型Without连接器类型NOVO
接触镀层Gold Over Nickel法兰特征否
安装样式Cable排数2
驱动力不带插入件材料磷青铜
触头材料Phosphor Bronze壳体材料Thermoplastic
总长度80.77 mm安装特性Without
包装数量50面板安装类型通孔 - 焊接
尺寸/外形.08 – .15 mm², 158 – 296 CMA, 28 – 26 美国线规电缆端接方式IDC
端接样式插座第一连接器类型插针接头
配接方向With触点数60
绝缘材料 - 类型.787 – .94 mm [ .031 – .037 in ]位数60
触头长度-柱信号（数据）安装孔直径带有
中心触点材料2.54 x 2.54 [.100 x .100]接触件表面处理 - 配合锡
接触镀层厚度15µin (0.38µm)

产品信息

类型IDC Connector连接器性别F
系列AMP-LATCH, NOVO产品特性Feed Through, Polarizing Key
极性带有主要用途Feed Through, Polarizing Key
产品子类型连接器连接类型Ribbon Cable
带调制解调器控制YesDigiKey可编程不带
输出配置Free Hanging (In-Line)

环境参数

工作温度+105°C
