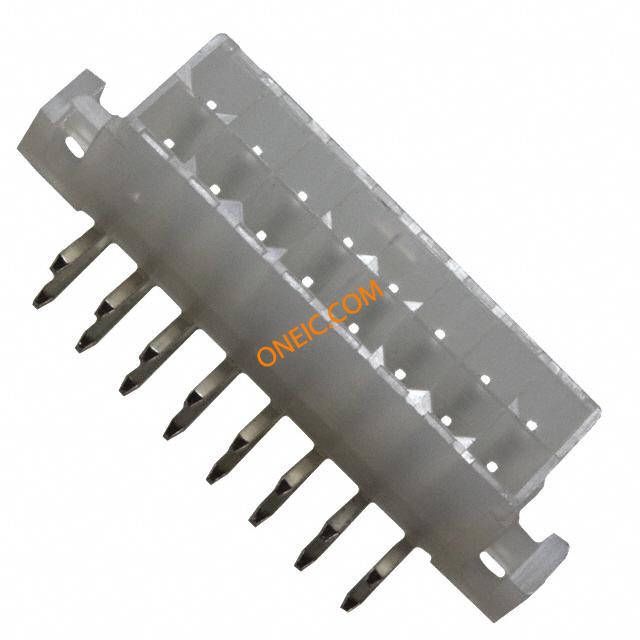

1-1586043-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 16 POS 4.2mm Solder RA Thru-Hole 16 Terminal 1 Port VAL-U-LOK Series Connector System CONN HEADER 16POS R/A W/FLANGE Pin & Socket Connectors RA HDR SCREW MNT 16P Conn Power HDR 16 POS 4.2mm Solder RA Thru-Hole 16 Terminal 1 Port Product Highlights:ConnectorConnector Type = HeaderHeader Type = Pin Header4.20 mm CenterlineNumber of Circuits = 16Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER,RIGHTANGLE,VAL-U-LOK,16POS,DUALROW,UL94V-2,SCREWMOUNT 16P VAL-U-LOK R/A HDR SCRMT V2 |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定电压 | 600 V | 最大额定电流 | 9 A |
| 最小供电电压 | 600VAC | ||
机械参数
| 深度 | 19.4 mm | 间距 | 4.2 mm |
| 镀层 | Tin | 直径 | Not Required mm |
| 材料（通用） | Brass | 包装方式 | Bulk |
| 排间距 | 0.165" (4.20mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 排数 | Dual | 触头材料 | Brass |
| 壳体材料 | Nylon | 总长度 | 44.8 mm |
| 主要材料 | InterconnectSystem | 第一触头极性 | Pin (Male) |
| 触点数 | 16 | 位数 | 16 |
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | PE | 制造商全称 | VAL-U-LOK |
| 产品子类型 | Pin Header | 端口数 | 1 Port |
| 电路数 | 16 | 加载位置数 | All |
