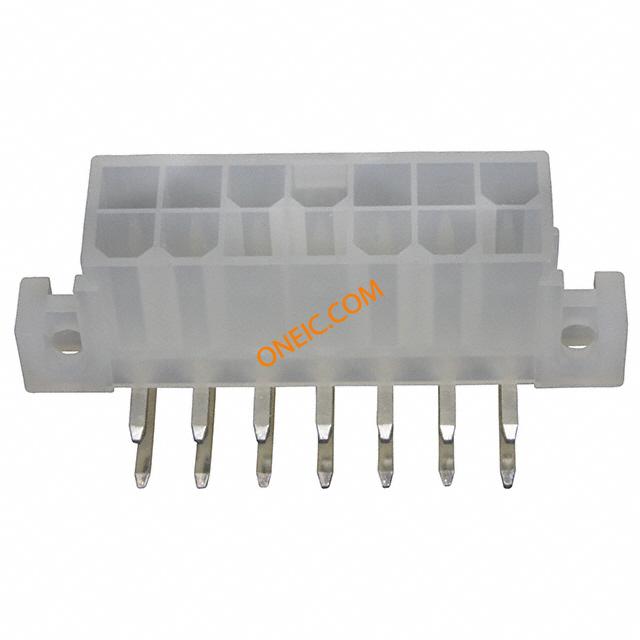

1-1586043-4

制造商	TE Connectivity Ltd.
描述	Conn Power HDR 14 POS 4.2mm Solder RA Thru-Hole 14 Terminal 1 Port VAL-U-LOK Series Connector System CONN HEADER 14POS R/A W/FLANGE Pin & Socket Connectors RA HDR SCREW MNT 14P Conn Power HDR 14 POS 4.2mm Solder RA Thru-Hole 14 Terminal 1 Port Product Highlights:Pin HeaderNumber of Circuits = 14UL 94V-2Number of Rows = DualRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER,RIGHTANGLE,VAL-U-LOK,14POS,DUALROW,UL94V-2,SCREWMOUNT 14P VAL-U-LOK R/A HDR SCRMT V2
分类	工具与焊接解决方案压接钳、压接机、压力机压接钳

对参数有疑问？问 AI 助手

商业参数

产品类别	Pin & Socket Connectors	标准包装数量	Trays
工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	UL等级	获得认可
无铅定义	Wave solder capable to 240Â°C	UL档案号	E28476
CSA档案号	208567	标准编号	CSA, UL
RoHS/ELV合规状态	RoHS compliant, ELV compliant	材料阻燃等级	UL 94V-2

电气参数

额定电压	600 V	供电电压	600
中心频率	带有	最大额定电流	9 A

机械参数

间距	4.2 mm	宽度	13 mm [ .5118 in ]
高度	9.8 mm [ .384 in ]	长度	30.6 mm [ 1.204 in ]
镀层	Tin	材料（通用）	Brass
包装方式	Bulk	遮蔽类型	Yes
尾部类型	同轴	壳体颜色	自然
导线线规	26 – 16	排间距	0.165" (4.20mm)
端接方式	Solder	触头类型	Male Pin
柱间距	.165	安装类型	Through Hole
连接器类型	Header, Shrouded	接触镀层	Tin
紧固类型	Locking Ramp	安装样式	Through Hole
排数	Dual	触头材料	Brass
壳体材料	尼龙 GF	安装特性	安装孔
包装数量	70	面板安装类型	通孔 - 焊接
主要材料	InterconnectSystem	端接样式	插针
第一触头极性	Pin (Male)	触点数	14
绝缘材料 - 类型	1.2 – 3.2 mm [ .047 – .122 in ]	位数	14
触头长度-柱	信号（数据）	安装孔直径	带有

产品信息

类型	Power	连接器性别	HDR
系列	PE	可密封	否
制造商全称	VAL-U-LOK	产品子类型	Pin Header
电路数	14	选择性装载	No
加载位置数	All

环境参数

测试温度	标准部件 - 非辉光导线	工作温度	-40 – 105 °C [ -40 – 221 °F ]
封装热阻	1.6 mm [ .063 in ]
