1-1586041-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 12 POS 4.2mm Solder RA Thru-Hole 12 Terminal 1 Port VAL-U-LOK Series Connector System CONN HEADER 12POS R/A W/O PEGS TE Connectivity PE Series 4.2mm Pitch 12 Way 2 Row Right Angle PCB Header, Solder Termination, 9A Pin & Socket Connectors RA HDR W/O PEGS 12P Conn Power HDR 12 POS 4.2mm Solder RA Thru-Hole 12 Terminal 1 Port Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER, RIGHT ANGLE, UL94V-2, 12WAY HEADER,RIGHTANGLE,VAL-U-LOK,12POS,DUALROW,UL94V-2,W/OPEGS TE Connectivity VAL-U-LOK 系列 4.2mm节距 12路 (2排) 直角 PCB 针座, 焊接端接, 9A , 通孔 12P VAL-U-LOK R/A HDR V2 |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C | 认证机构 | :CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定电压 | 600 V ac | 最大额定电流 | 9A |
| 最小供电电压 | 600VAC | ||
机械参数
| 深度 | 19.6 mm | 间距 | 4.2 mm |
| 重量 | 0.0431 | 直径 | Not Required mm |
| 包装方式 | Bulk | 排间距 | 0.165" (4.20mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 引脚间距 | :4.2mm | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 排数 | Dual | 材料表面处理 | :- |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 总长度 | 26.4 mm | 主要材料 | InterconnectSystem |
| 端接样式 | Solder | 第一触头极性 | Pin (Male) |
| 连接器颜色 | :White | 触点数 | 12 |
| 接触件端接 | :Solder | 位数 | 12 |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | PE | CAD图纸 | 3D CAD Model |
| 制造商全称 | VAL-U-LOK | 产品子类型 | Pin Header |
| 端口数 | 1 Port | 电路数 | 12 |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -40C to 105C | 结工作温度 | 105C |
文档与媒体
相关型号

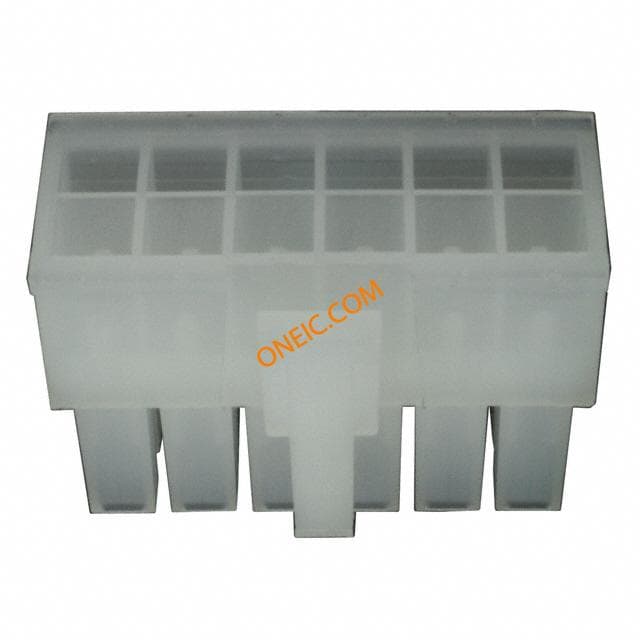

1-106527-2
