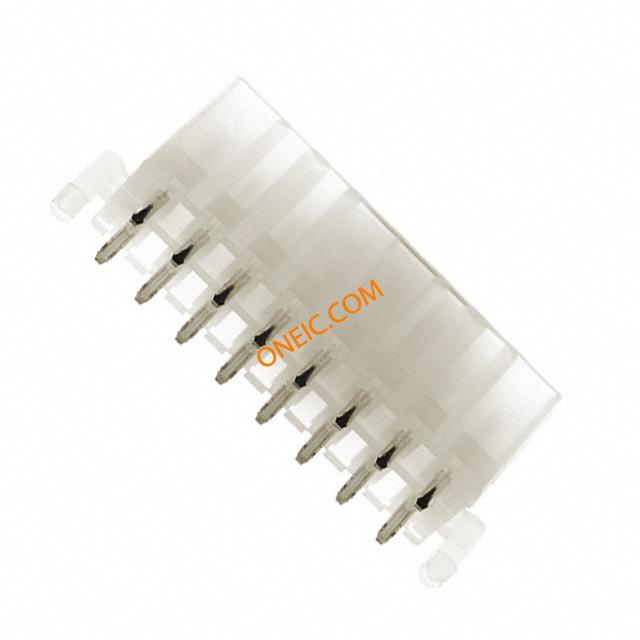

1-1586039-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 16 POS 4.2mm Solder ST Thru-Hole 16 Terminal 1 Port VAL-U-LOK Series Connector System CONN HEADER 16POS VERT W/PEGS Pin & Socket Connectors VERT HDR W/PEGS 16P Conn Power HDR 16 POS 4.2mm Solder ST Thru-Hole 16 Terminal 1 Port Product Highlights:Pin HeaderNumber of Circuits = 16UL 94V-2Number of Rows = DualVertical Mount AngleSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER,VERTICAL,VAL-U-LOK,16POS,DUALROW,UL94V-2,W/PEGS 16P VAL-U-LOK VRT HDR W/P V2 |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定电压 | 600 V | 最大额定电流 | 9 A |
| 最小供电电压 | 600VAC | ||
机械参数
| 深度 | 9.75 mm | 间距 | 4.2 mm |
| 高度 | 12.8 mm | 直径 | Not Required mm |
| 包装方式 | Bulk | 排间距 | 0.165" (4.20mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 排数 | Dual |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 总长度 | 38.8 mm | 主要材料 | InterconnectSystem |
| 第一触头极性 | Pin (Male) | 触点数 | 16 |
| 位数 | 16 | ||
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | PE | 产品特性 | Board Lock |
| 制造商全称 | VAL-U-LOK | 产品子类型 | Pin Header |
| 端口数 | 1 Port | 电路数 | 16 |
| 加载位置数 | All | ||
