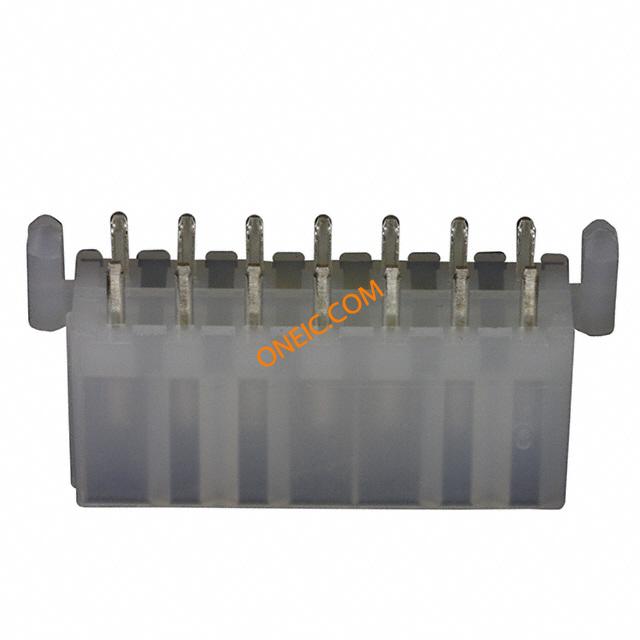

点击放大查看
1-1586039-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 14 POS 4.2mm Solder ST Thru-Hole 14 Terminal 1 Port Pin & Socket Connectors VERT HDR W/PEGS 14P VAL-U-LOK Series Connector System CONN HEADER 14POS VERT W/PEGS Conn Power HDR 14 POS 4.2mm Solder ST Thru-Hole 14 Terminal 1 Port Product Highlights:Pin HeaderNumber of Circuits = 14UL 94V-2Number of Rows = DualVertical Mount AngleSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER,VERTICAL,VAL-U-LOK,14POS,DUALROW,UL94V-2,W/PEGS 14P VAL-U-LOK VRT HDR W/P V2 |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 无铅定义 | Wave solder capable to 240°C |
| CSA档案号 | 208567 | 标准编号 | CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-2 |
| 认证机构标志 | 否 | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 中心频率 | 带有 | 最大额定电流 | 9 A |
机械参数
| 间距 | 4.2 mm | 宽度 | 9.75 mm [ .384 in ] |
| 高度 | 12.8 mm [ .504 in ] | 长度 | 30.6 mm [ 1.204 in ] |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 排间距 | 0.165" (4.20mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 引脚数 | 14 | 排数 | 2 |
| 封装形式 | Plug | 触头材料 | Beryllium Copper |
| 壳体材料 | Nylon | 安装特性 | 板锁 |
| 包装数量 | 165 | 面板安装类型 | 通孔 - 焊接 |
| 主要材料 | InterconnectSystem | 端接样式 | Solder Pin |
| 第一触头极性 | Pin (Male) | 触点数 | 14 |
| 绝缘直径 | 1.2 – 3.1 mm [ .047 – .122 in ] | 位数 | 14 |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 锡 |
| 典型触点布局 | 直插式, 矩阵 | 端子柱长度 | 3.5 mm [ .138 in ] |
| 接触镀层厚度 | 80 µm [ 2.03 µin ] | ||
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | PE | 产品特性 | Board Lock |
| 制造商全称 | VAL-U-LOK | 产品子类型 | Headers |
| 电路数 | 14 | 选择性装载 | No |
| 应用细节 | Power | 加载位置数 | All |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -40 – 105 °C [ -40 – 221 °F ] |
| 封装热阻 | .07 mm [ 1.78 in ] | ||
