点击放大查看

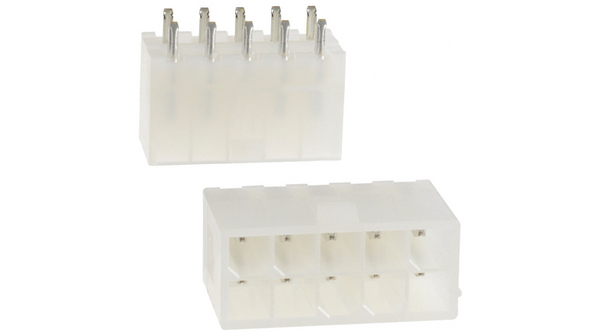

1-1586037-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 10 POS 4.2mm Solder ST Thru-Hole 10 Terminal 1 Port VAL-U-LOK Series Connector System CONN HEADER 10POS VERT W/O PEGS Pin & Socket Connectors VERT HDR NO PEGS 10P Conn Power HDR 10 POS 4.2mm Solder ST Thru-Hole 10 Terminal 1 Port Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER, VERTICAL, 2 ROW, 10 WAY, 4.2MM HEADER,VERTICAL,VAL-U-LOK,10POS,DUALROW,UL94V-2,W/OPEGS Straight header Pitch4.2 mm Poles 2 x 5 VAL-U-LOK, 1-1586037-0, TE Connectivity 10P VERT HDR VAL-U-LOK V2 |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C | 认证机构 | :CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
电气参数
| 量程（°/s） | :VAL-U-LOCK Series | 额定电压 | 600 V |
| 最大额定电流 | 9 A | ||
机械参数
| 间距 | 4.2 mm | 重量 | 0.0195 |
| 包装方式 | Bulk | 排间距 | 0.165" (4.20mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 排数 | Dual |
| 材料表面处理 | :- | 触头材料 | :Brass |
| 壳体材料 | Nylon | 主要材料 | InterconnectSystem |
| 端接样式 | Solder | 第一触头极性 | Pin (Male) |
| 触点数 | 10 | 接触件端接 | :Through Hole Vertical |
| 位数 | 10 | 第一连接器安装类型 | :PCB |
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | PE | 制造商全称 | VAL-U-LOK |
| 产品子类型 | Pin Header | 电路数 | 10 |
| 加载位置数 | All | ||
文档与媒体
相关型号
1-794657-0
te connectivity / amp
Conn Housing RCP 10 POS 4.2mm Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN RCPT HOUSING 10POS 94V-0 Pin & Socket Connectors 10P RCPT HSG 94V-0 AMP-DUAC Conn Housing RCP 10 POS 4.2mm Crimp ST Cable Mount Product Highlights:HousingAMP-DUACReceptacleNumber of Positions = 10UL 94V-0Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power 10P RCPT HSG 94V-0

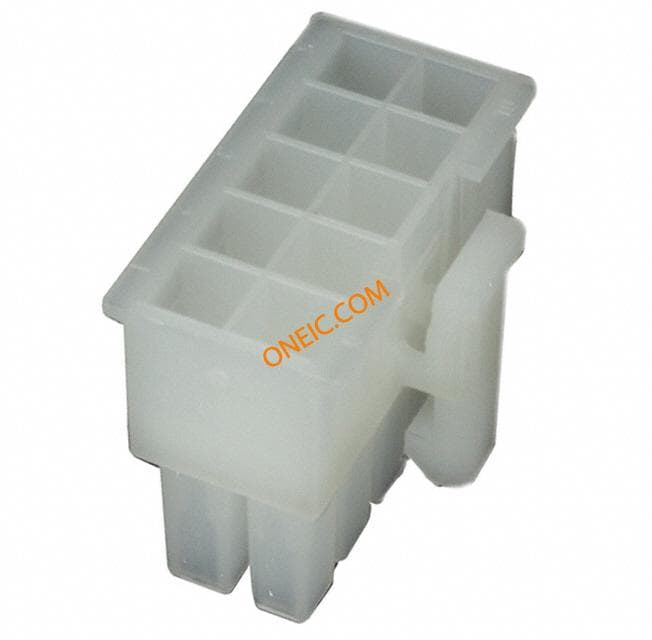

1-106527-0
