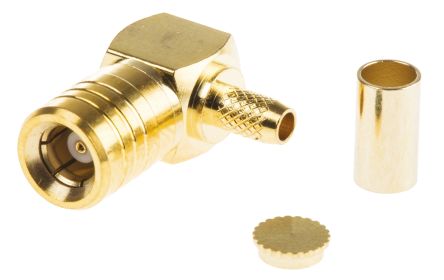

点击放大查看
1-1337478-0
| 制造商 | |
| 描述 | Conn SMB PL 0Hz to 4GHz 50Ohm Solder/Crimp RA Cable Mount Gold Individual SMB RF Connectors SMB R/A plug, 50 ohm,RG174, RG188, RG316 RF Connectors / Coaxial Connectors R/A Plg Hex 50 Ohm Conn SMB PL 0Hz to 4GHz 50Ohm Solder/Crimp RA Cable Mount Gold Individual Product Highlights:ConnectorPlugStandardTerminate To Coaxial CableCoupler Style = Snap-OnSearch Keywords:RF, MIL-C-39012, BS9210 F0022, subminiature, PLUG, SMB, R/A, 50OHM, GOLD, RG174A SMBR/APLGHEX50OHMGOLDPLATEDRG174A TE Connectivity 直角 50Ω 电缆安装 SMB 连接器, 插座, 压接，焊接端接, RG174 A/U, RG188 A/U, RG316/U SMB R/A Plg Hex 50Ohm Gold Pla |
| 分类 |
商业参数
| 产品 | Connectors | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 250 |
合规参数
| RoHS | Compliant | 海关税号 | 85366990 |
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 最大频率 | 4 GHz | 绝缘电阻 | 1000 MOhms |
机械参数
| 尺寸 | Standard | 重量 | 0.005 |
| 包装方式 | Bulk | 电缆类型 | KX3B, KX22A, RG-174A/U, RG-188A/U, RG-316/U, URM95 |
| 方向 | Right Angle | 端接方式 | Solder/Crimp |
| 基体材料 | Brass | 安装类型 | Cable Mount |
| 行程角度 | RightAngle | 连接器类型 | :SMB Coaxial |
| 接触镀层 | Gold | 外壳涂层 | Gold |
| 安装样式 | CableMount | 触头材料 | Beryllium Copper |
| 主要材料 | SMB | 介电材料 | PTFE |
| 供应商器件封装 | :Right Angle Plug | 第一连接器安装类型 | :Cable |
产品信息
| 类型 | SMB | 连接器性别 | PL |
| 系列 | :Standard | 极性 | Normal |
| 连接类型 | Coaxial Cable | 射频系列/标准 | 133747 |
环境参数
| 工作温度 | - 65 C to + 165 C | ||
