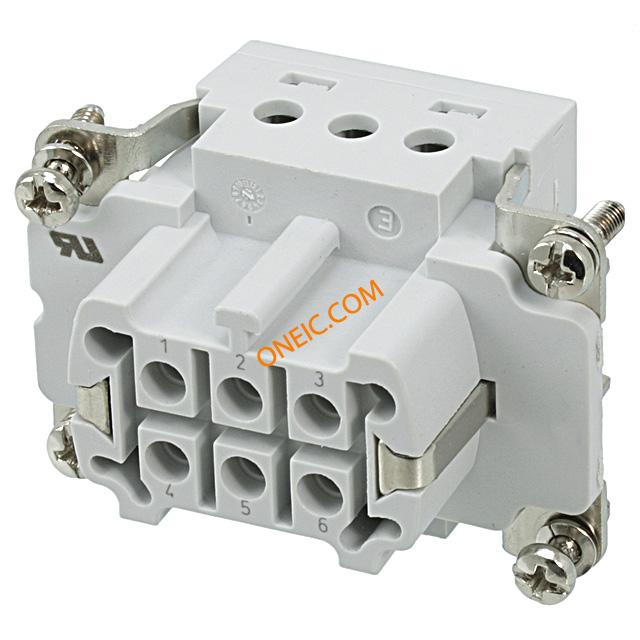

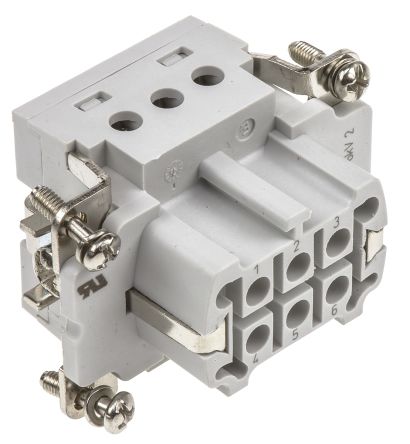

1-1103635-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | HE.6.BU.S HTS Connectors and Accessories CONN FEMALE INSERT HE.6 SERIES HE 6 way screw terminal female insert Heavy Duty Power Connectors SKT INSERT SZ 3 6+PE Conn Rectangular F 6Signal/1Ground POS Screw ST Panel Mount Loose Piece Conn Rectangular F 6Signal/1Ground POS Screw ST Panel Mount Loose Piece Product Highlights:HE.6 SeriesInsertProduct Size = 3Contact Type = Screw TerminalInsert Style = SocketSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 INSERT, FEMALE, SCREW, 6WAY HE6WAYSCREWTERMINALFEMALE Connector: HTS; female; HTS HE; PIN:6; 6+PE; size 3; 16A; 400V TE Connectivity HE 系列 6针 6P+E极 插座 大负荷电源连接器套件 |
| 分类 |
商业参数
| 交货时间 | 59 Days | 子类别 | Connector Rectangular |
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | 5 |
| 工厂包装数量 | 5 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | CSA, DIN VDE 0110, DIN VDE 0627, SEV, UL |
| 海关税号 | 85369010 | 认证机构 | :CSA, SEV, UL |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 400V | 最大额定电流 | 16A |
| 最小供电电压 | 400V | ||
机械参数
| 尺寸 | 3 | 颜色 | Gray |
| 深度 | 34 mm | 高度 | 33 mm |
| 重量 | 0.058 | 材料（通用） | thermoplastic |
| 钻孔直径 | 44mm | 包装方式 | Loose Piece |
| 端接方式 | :Screw | 安装类型 | Straight |
| 连接器类型 | Insert | 接触镀层 | Silver |
| 安装样式 | Panel | 排数 | :2 |
| 封装形式 | size 3 | 触头材料 | Brass |
| 壳体材料 | Polycarbonate (PC), Glass Filled | 总长度 | 52 mm |
| 包装数量 | 5 | 主要材料 | IndustrialRectangular |
| 尺寸/外形 | see | 端接样式 | Screw |
| 第一触头极性 | :Socket | 外径 | 51mm |
| 触点数 | 6 | 接触件端接 | :Screw |
| 横截面形状 | 0.5...2.5mm2 | 位数 | 6+Ground |
| 外壳尺寸-插件 | :3 | 小外径 | 27mm |
| 触点材料 - 镀层 | silver plated | 第一连接器安装特征 | 6+PE |
产品信息
| SPG | 5 | 类型 | Rectangular |
| 连接器性别 | Female | 系列 | Han E |
| 极数格式 | 6P+E | 制造商全称 | HTS |
| 产品子类型 | Inserts | 附件类型 | Contact |
| 适配器系列 | HTS HE | 单元数量 | 1 |
| 其他规格 | 33mm | 适用产品/相关产品 | Machined Crimp Contact |
环境参数
| NEMA 机架尺寸 | :IP65 | 工作温度 | -40°C ~ 125°C |
