点击放大查看

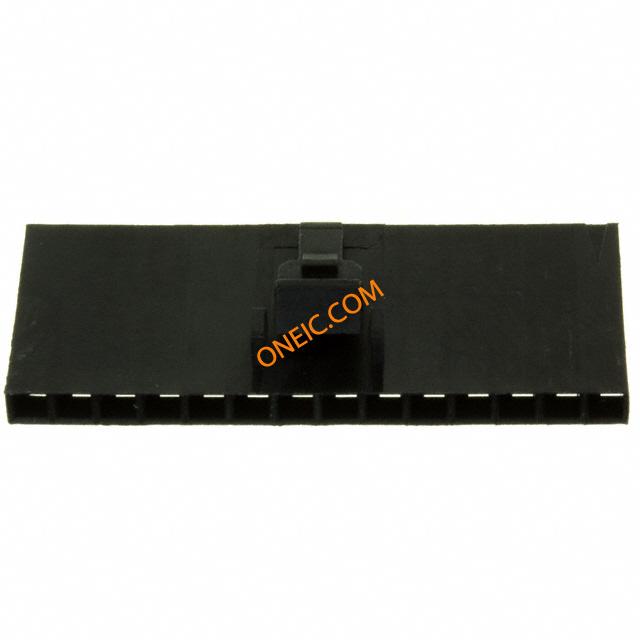

1-104257-3

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 14 POS 2.54mm Crimp ST .100 AMPMODU Headers, Housings & Contacts CONN RECPT 14POS .1" POL UNLOAD Housing 14 way receptacle IDC AmpModu Headers & Wire Housings MTE RECPT 14P Conn Housing RCP 14 POS 2.54mm Crimp ST Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 14Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 14POS, 2.54MM RECEPTACLE,AMPMODU,MTE,14POSITION,.100IN,SINGLEROW,LATCHED TE Connectivity AMPMODU MTE 系列 2.54mm 节距 14 路母 PCB 连接器外壳 14 MTE RCPT HSG SR LATCH .100
分类	光电子学LED照明LED照明模块

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	500

合规参数

RoHS	Lead free / RoHS Compliant	海关税号	85366910
无铅定义	Not relevant for lead free process	RoHS/ELV合规状态	RoHS compliant, ELV compliant
材料阻燃等级	UL 94V-0

电气参数

量程（°/s）

:TE - AMPMODU MTE Series

最大额定电流

3/Contact A

机械参数

颜色	Black	深度	15.24 mm
间距	2.54 mm	重量	0.002
包装方式	Bulk	导线线规	22-30 AWG
排间距	2.54 mm	触头类型	Female Socket
极化	Latched	第二连接器	With
外壳颜色	Black	安装类型	Straight
连接器类型	Crimp, Insulation Displacement Crimp (IDC)	接触镀层	Gold
紧固类型	Latch Lock	排数	1
封装形式	Receptacle	触头材料	:-
壳体材料	Thermoplastic	总长度	35.5 mm
主要材料	InterconnectSystem	第一触头极性	Socket (Female)
配接方向	With	触点数	14
接触件端接	Crimp	位数	14
中心触点材料	2.54 [.100]

产品信息

备注	Refer to AMPMODU contacts for crimp snap-in replacement receptacle or pin conta	类型	Housing
连接器性别	RCP	系列	MTE
预加载	No	编码、键控	No
制造商全称	AMPMODU/MTESeries	产品子类型	Housing

环境参数

工作温度

+105°C

文档与媒体

PDF 文档

1650927.pdf

在线文档

1-104257-3?RQPN=1-104257-3
