1-103945-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector PIN 12 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN PLUG 12POS .100 POLAR GOLD Headers & Wire Housings PIN ASSEMBLY 12P 192 2X12 MTE SHRD PIN SR LATCH.100 2X12 MTE SHRD PIN SR LATCH.100 Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE |
| 分类 |
商业参数
| 商标名 | AMPMODU | 标准包装规格 | 16 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 16 | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 标准编号 | CSA LR7189, UL E28476 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 供电电压 | 267 V | 接触电阻 | 15 mΩ |
| 输入电阻 | 5000 | 连接器阻抗 | 刺破式压接 (IDC), 压接 |
| 最大额定电流 | 3 A | 保护额定电压（VPR） | 600 V |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 高度 | .66 mm [ .26 in ] | 长度 | 6.58 mm [ 2.59 in ] |
| 锁定类型 | 锁闩 | 包装方式 | Tube |
| 导线类型 | Ribbon Cable | 壳体颜色 | 黑色 |
| 导线线规 | 22-26 AWG | 排间距 | 2.54 mm |
| 端接方式 | IDT | 触头类型 | Male Pin |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug |
| 接触镀层 | Gold Over Nickel | 安装样式 | Wire |
| 排数 | 1 | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 包装数量 | 2 | 面板安装类型 | 不带 |
| 电缆端接方式 | IDC | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 触点数 | 12 |
| 位数 | 12 | 兼容外壳尺寸（如TM-700等） | 配合母端 |
| 安装孔直径 | 带有 | 典型触点布局 | 同轴 |
| 接触镀层厚度 | 15µin (0.38µm) | 静电放电屏蔽 | 带有 |
| 接触件镀层 - 插柱（配合端） | 亮光 | ||
产品信息
| 备注 | 带状电缆带缺口把手 22-28 AWG, 气动终结器的最大绝缘直径为 1.14 [0.045]。 | 类型 | IDC Connector |
| 连接器性别 | PIN | 系列 | AMPMODU MTE |
| 产品特性 | Closed End | 产品子类型 | Headers |
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | - 65 C to + 105 C |
文档与媒体
相关型号
1-103961-1
te connectivity / amp
Conn IDC Connector RCP 12 POS 2.54mm IDT ST Cable Mount Strip Headers & Wire Housings OBSOLETE CONN RCPT 12POS .100 26-30 30AU
1-103648-1
te connectivity / amp
Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 12POS .100 UNLOADED .100 IDC AMPMODU Housings & Contacts .100 IDC AMPMODU Housings & Contacts Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 12Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 12 MTE RCPT HSG SR RIB .100CL
1-103959-1
te connectivity / amp
Conn IDC Connector RCP 12 POS 2.54mm IDT ST Cable Mount Strip CONN RECEPT 12POS .100 26-30 TIN

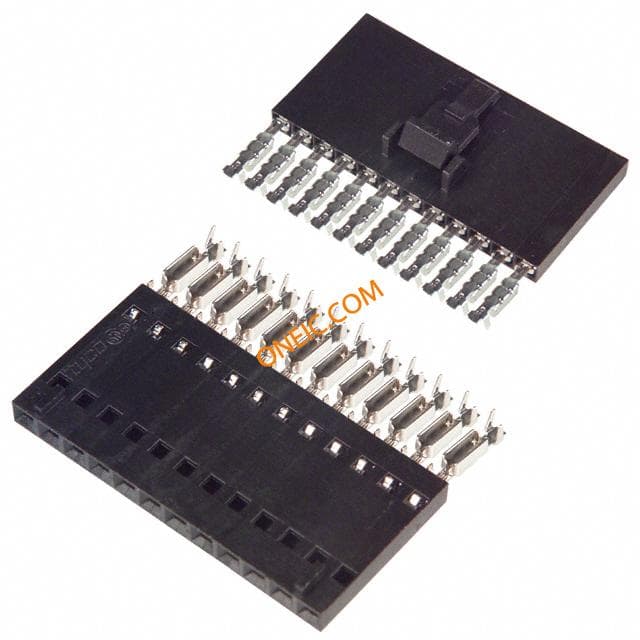

6-103958-1
