| 制造商 | TE Connectivity Ltd. |

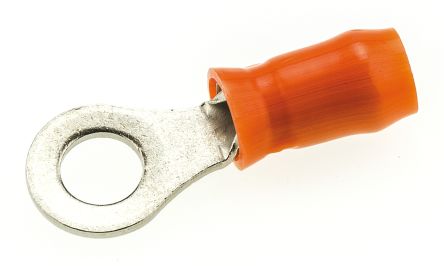

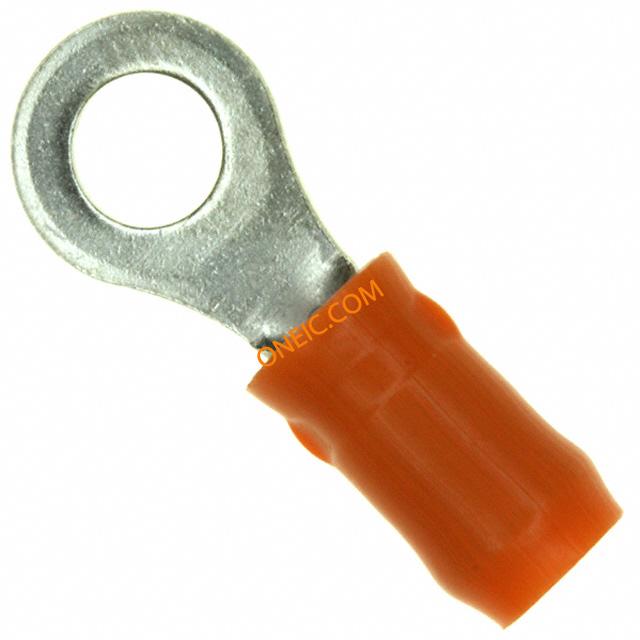

| 描述 | Ring Tongue Terminal 16-18AWG 21.44mm 7.92mm Nickel Loose Piece Terminals TFE-RING 18-16 ORG #8 Ring and Spade Tongue Terminals TERMINAL,PIDG TFL R 18-16 8 Ring terminal,PIDG, STRATO-THERM, orange Ring Tongue Terminal 16-18AWG 21.44mm 7.92mm Nickel Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDG, STRATO-THERMBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B Ringterminal,PIDG,STRATO-THERM,orange TE Connectivity PIDG, STRATO-THERM 系列, 橙色 镀镍触芯 环形压接端子 , M4 螺栓, 4.34mm内环直径, 21.44mm总长 TERMINAL,PIDG PTFE R 18-16 8 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
电气参数
| 最大电压 | 300 | 额定电压 | 300 VAC |
| 供电电压 | 300 | ||
机械参数
| 颜色 | Orange | 形状 | RING-052 |
| 表面处理 | Nickel | 长度 | .855 |
| 重量 | 10 | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 0.031" (0.79mm) |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Insulated | 螺钉尺寸 | 8, M4 |
| 导线线规 | 16-18 AWG | 端接方式 | Crimp |
| 触点形状 | Ring Tongue | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 4 mm | 端子类型 | Circular |
| 电缆直径 | 1.4mm² | 电缆材料 | Yes |
| 接触镀层 | Nickel | 端子样式 | Straight |
| 连接器样式 | Straight | 触头材料 | Copper |
| 总长度 | 0.855" (21.72mm) | 包装数量 | Loose Piece |
| 筒径 | Standard | 绝缘高度 | Insulation Support |
| 端接样式 | 环形端子 | 连接器颜色 | Orange |
| 绝缘直径 | 3.43 [.135] Max. | 绝缘材料 - 类型 | Teflon |
| 位数 | 1 | 外缘宽度 | 0.312" (7.92mm) |
| 筒体内径 | .145 | 绝缘材料 - 材质 | Teflon® |
| 舌片内部开口 | 0.84 [0.033] | 螺纹/螺钉/孔尺寸 | M4 |
| 供应商器件封装 | PIDG, STRATO-THERM | 支撑面板厚度 | Insulation Support |
| 线规或范围 - AWG | 1,600 â 2,800 | 线规或范围 - mm² | 0.80-1.40² [18-16] |
| 外管直径（最大） | 7.92mm | 外径-未扩张 | 3.43 mm [ .135 in ] |
产品信息
| 类型 | Ring Tongue Terminal | 连接器性别 | Female |
| 系列 | 508 | 产品特性 | High Temperature, Serrated Termination |
| 制造商全称 | AMP | 其他规格 | 4.34mm |
环境参数
| 温度额定值 | 288 [550] | 工作温度 | 288 C |
相关型号
69733
te connectivity / amp
DIE PIDG STRATO 69710 18-16 Punches & Dies DIE PIDG 18-16 DIE PIDG STRATO 69710 18-16AWG
576781
te connectivity / amp

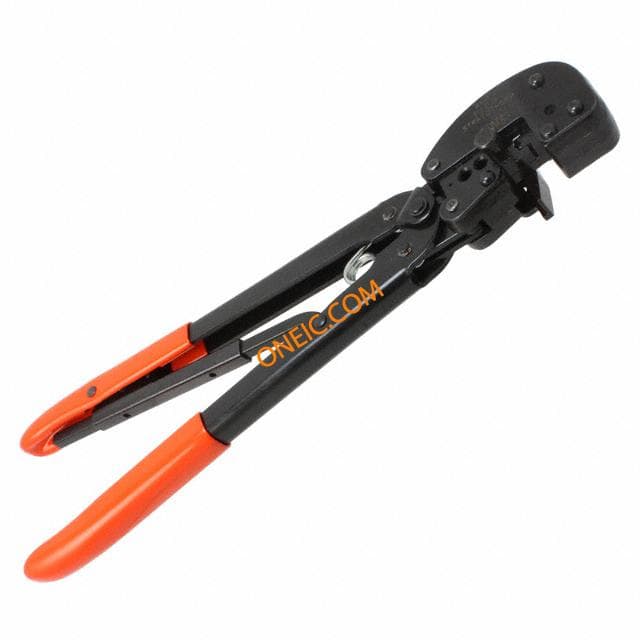

General Hand Tool Used In The Aircraft And Military Industries Crimpers HEAVY HD HT STRATO #16 TOOL HAND HVY HD STRATO 16AWG Crimping tool, 576781, TE Connectivity TE Connectivity CERTI-CRIMP 系列 PIDG STRATO-THERM Terminals 压接工具 , 适用于16 AWG 线规格 HEAVY HD HT, STRATO #16
1901600-2
te connectivity / amp
CCII, STRATOTHERM, 18-16, SHRT Hand Tools CCII STRATOTHERM 18-16 SHRT TOOL HAND CERTICRIMP II 16AWG Crimp Hand Tool
69710-1
te connectivity / amp
General Hand Tool Used In The Aircraft And Military Industries Hand Tools HAND TOOL W/O DIE TOOL HAND FRAME W/O DIE ASSY Straight action hand crimping tool SAHTW/OUTDIES Crimping tool, 69710-1, TE Connectivity TE Connectivity CERTI-CRIMP 系列 压接工具框架 SAHT W/OUT DIES
1901600-1
te connectivity / amp
CCII, STRATOTHERM, 18-16, LON Hand Tools CCII 18-16 LONG STRATOTHERM TOOL HAND CERTICRIMP II 18AWG CERTI-Crimp Hand Tool Assembly CCII, STRATOTHERM, 18-16, LONG Crimping tool, 1901600-1, TE Connectivity
576780
te connectivity / amp
General Hand Tool Used In The Aircraft And Military Industries Crimpers HEAVY HDD HT STRATO #18 TOOL HAND HVY HD STRATO 18AWG Crimping tool, 576780, TE Connectivity TE Connectivity CERTI-CRIMP 系列 PIDG STRATO-THERM Terminals 压接工具 , 适用于18 AWG 线规格 HEAVY HDD HT, STRATO #18
1-576780-0
te connectivity / amp
ASSY, HEAVY HD, 18, STRATO Hand Tools ASSY HEAVY HD 18 STRATO TOOL HEAD CRIMP 18AWG STRATO
1-576781-0
te connectivity / amp
ASSY, HEAVY HD, 16, STRATO Hand Tools ASSY HEAVY HD 16 STRATO TOOL HEAD CRIMP 16AWG STRATO
