点击放大查看

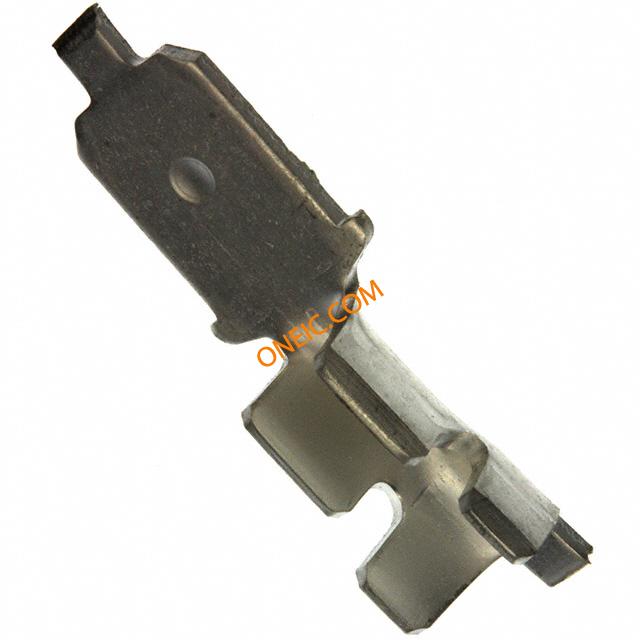

41412
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 14-18AWG M 19.69mm Tin Strip on Reel Terminals 250 FAST TAB IS 18-14 AWG Quick Disconnect Tabs, Tab Adapters & Tab Caps CONN TAB FASTON 14-18 AWG .250 Tab crimp terminal,FASTON 250, AWG 18-14 Quick Disconnect Terminal 14-18AWG M 19.69mm Tin Strip on Reel Search Keywords:Terminals and Splices, Lighting Interconnection Products, sealed, TAB6.35x0.81mmFASTON TE Connectivity FASTON .250 系列 压接接头端子, 6.35 x 0.81mm, 镀锡触芯 FASTON 250(6.3MM) TAB 18-14 AWG TPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A27888CT |
| 产品类别 | Terminals | 标准包装数量 | 8,000 |
| 工厂包装数量 | 8000 | ||
合规参数
| RoHS | RoHS Compliant | UL等级 | 已获认证 |
| UL列名 | Listed | 无铅定义 | Not relevant for lead free process |
| 认可国家 | 是 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 核心类型 | Open | 最大频率 | Single |
机械参数
| 表面处理 | Tin | 长度 | 19.69 mm |
| 材料（通用） | Brass | 包装方式 | Tape & Reel (TR) |
| 遮蔽类型 | Unshrouded | 插片宽度 | 6.35 x 0.81 [.250 x .032] |
| 电缆类型 | Regular Wire | 绝缘类型 | Not Insulated |
| 插片长度 | 0.312" (7.92mm) | 导线线规 | 18-14 |
| 端接方式 | Crimp | 安装类型 | Wire |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 电缆直径 | 2mm² | 电缆材料 | Yes |
| 连接器类型 | Yes | 接触镀层 | Tin |
| 连接器用途 | Wire & Cable | 插入件材料 | 黄铜 |
| 触头材料 | Brass | 总长度 | 0.775" (19.69mm) |
| 包装数量 | Strip | 绝缘高度 | Insulation Support |
| 端接样式 | Crimp | 适用端子尺寸 | 3.05 – 4.32 mm [ .12 – .17 in ] |
| 接触件尾部长度 | 0.81mm | 绝缘直径 | 3.05-4.32 [.120-.170] |
| 绝缘材料 - 类型 | No | 焊盘布局尺寸 | 6.35 x 0.81mm |
| 安装孔直径 | Without | 法兰上方插针尺寸 | 6.35 mm [ .25 in ] |
| 法兰下方引脚尺寸 | .81 mm [ .032 in ] | 线规或范围 - AWG | 14AWG |
| 线规或范围 - mm² | 0.80-2.00² [18-14] | 触点镀层厚度 - 柱 | 6.35mm |
| 外径-未扩张 | 4.32 mm [ .17 in ] | ||
产品信息
| 类型 | Disconnects | 连接器性别 | Male |
| 系列 | 250 | 覆盖范围 | 无覆盖 |
| 产品子类型 | Tab | 其他规格 | Wire Crimp |
