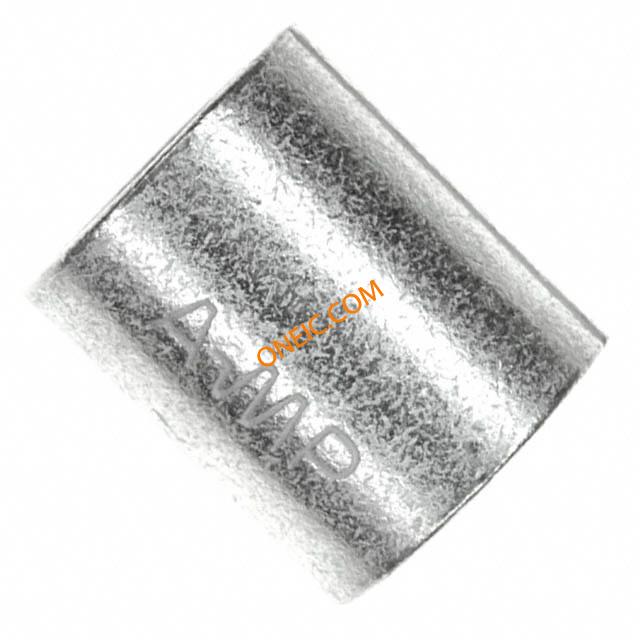

36946
| 制造商 | TE Connectivity Ltd. |
| 描述 | Splice Terminal (1/0)AWG 18.64mm 15.57mm Tin Loose Piece Terminals PARALLEL SPLC 1/0 Splices - Closed Barrel CONN SPLICE PARA 1/0 AWG SOLIS Splice Terminal (1/0)AWG 18.64mm 15.57mm Tin Loose Piece Product Highlights:SpliceNot SealedSplice Type = ParallelBody Style = SOLISTRANDUninsulatedSearch Keywords:Wire Termination and Splices, terminals and splices, W crimp, C crimp, SPLICE,PARALELL,SOLISTRAND,1-1/0AWG SPLICE,SOLIS PARA 1/0 |
| 分类 |
商业参数
| 产品 | Splices | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 军用规范 | No |
| 认证机构标志 | No | ||
电气参数
| 纹波 | 否 | ||
机械参数
| 颜色 | None | 深度 | 15.57 mm |
| 表面处理 | Tin | 密封型 | No |
| 重量 | 15.245 | 镀层 | Tin |
| 材料（通用） | Copper | 包装方式 | Bulk |
| 绝缘类型 | Not Insulated | 导线线规 | (1/0) AWG |
| 端接方式 | Crimp | 基体材料 | Copper |
| 安装类型 | Straight | 螺柱/焊片尺寸 | 2 |
| 端子类型 | Inline, Individual Openings (Parallel) | 电缆材料 | No |
| 连接器类型 | 并行接头 | 接触镀层 | Tin |
| 壳体镀层 | Tin | 厚度（最大） | 1.85 [0.073] |
| 触头材料 | Copper | 总长度 | 18.64 mm |
| 包装数量 | Loose Piece | 内径（直径） | 11.27 [0.444] |
| 绝缘高度 | Non-Insulation Support | 端接样式 | Crimp |
| 外径 | 15.58 [0.613] | 材料厚度 | 1.85 mm [ 0.073 in ] |
| 绝缘材料 - 类型 | Non-Insulated | 筒体内径 | 11.27 mm [ .444 in ] |
| 绝缘材料 - 材质 | Copper | 进线口数 | 2 |
| 接触镀层厚度 | 100 | 线规或范围 - AWG | 83,700 â 119,500 |
| 线规或范围 - mm² | 41.00-60.00; [1-1/0] | ||
产品信息
| 类型 | Splice Terminal | 连接器性别 | Female |
| 系列 | 369 | 产品特性 | Brazed Seam |
| 可密封 | 否 | 制造商全称 | AMP |
| 产品子类型 | Splice | ||
相关型号
48131
te connectivity / amp
Pre-Marked Wire Cable Markers Tool Punches & Dies IND INSERT 1/0-4/0 IND INSERT SOLIS 1/0-4/0AWG Die For Hydraulic Tooling INDINSERTSOLIS1/0-4/0 IND INSERT SOLIS 1/0-4/0

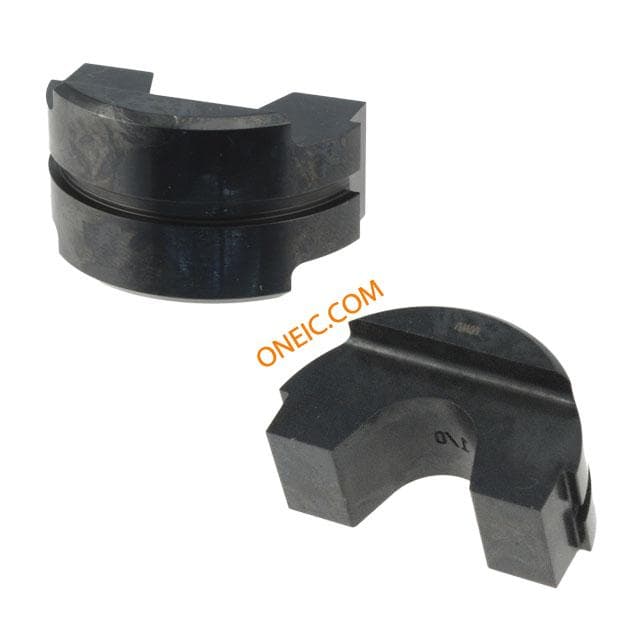

1490413-5
