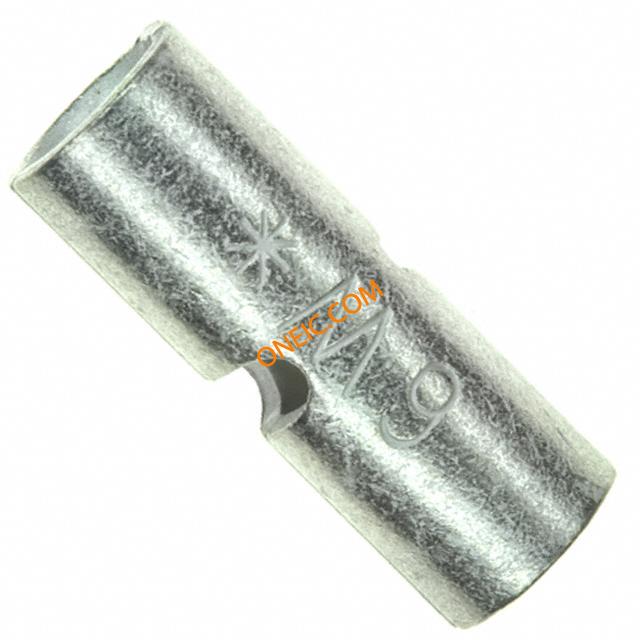

点击放大查看
36886
| 制造商 | TE Connectivity Ltd. |
| 描述 | Splice Terminal 6AWG 25.78mm 9.37mm Tin Loose Piece Terminals BUTT SPLICE 6 AWG SIGHT HOLE Splices - Closed Barrel CONN SPLICE BUTT 6 AWG SOLIS Splice Terminal 6AWG 25.78mm 9.37mm Tin Loose Piece Product Highlights:SpliceNot SealedSplice Type = ButtButt Splice Type = Sight HoleBody Style = SOLISTRANDSearch Keywords:Wire Termination and Splices, terminals and splices, W crimp, C crimp, CRIMP TERMINAL, BUTT, 6AWG, PK50 SPLICE,SOLIS BUTT 6 |
| 分类 |
商业参数
| 产品 | Splices | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| 认证机构 | :BS, CAA, CSA, UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
机械参数
| 颜色 | None | 深度 | 9.37 mm |
| 表面处理 | Tin | 密封型 | No |
| 重量 | 0.36 | 材料（通用） | Copper |
| 底座类型 | Sight Hole | 包装方式 | Bulk |
| 绝缘类型 | Not Insulated | 导线线规 | 6 AWG |
| 端接方式 | Crimp | 基体材料 | Copper |
| 安装类型 | Straight | 螺柱/焊片尺寸 | :5.89mm |
| 端子类型 | Butt Splice, Inline, Individual Openings | 连接器类型 | :Splice |
| 接触镀层 | Tin | 壳体镀层 | Tin |
| 厚度（最大） | 1.52 [0.060] | 触头材料 | Copper |
| 绝缘颜色 | :(Not Available) | 总长度 | 25.78 mm |
| 包装数量 | Loose Piece | 内径（直径） | 5.89 [0.232] |
| 绝缘高度 | Non-Insulation Support | 连接器颜色 | :Tin |
| 外径 | 9.37 [0.369] | 绝缘材料 - 材质 | :(Not Available) |
| 进线口数 | 2 | 线规或范围 - AWG | 20,800 â 33,100 |
| 线规或范围 - mm² | 13.00-15.00² [6] | 外径-未扩张 | :16.7mm |
产品信息
| 类型 | Splice Terminal | 连接器性别 | Female |
| 系列 | :SOLISTRAND | 产品特性 | Brazed Seam |
| 制造商全称 | AMP | 产品子类型 | Splice |
环境参数
| 工作温度 | :170°C | ||
