点击放大查看

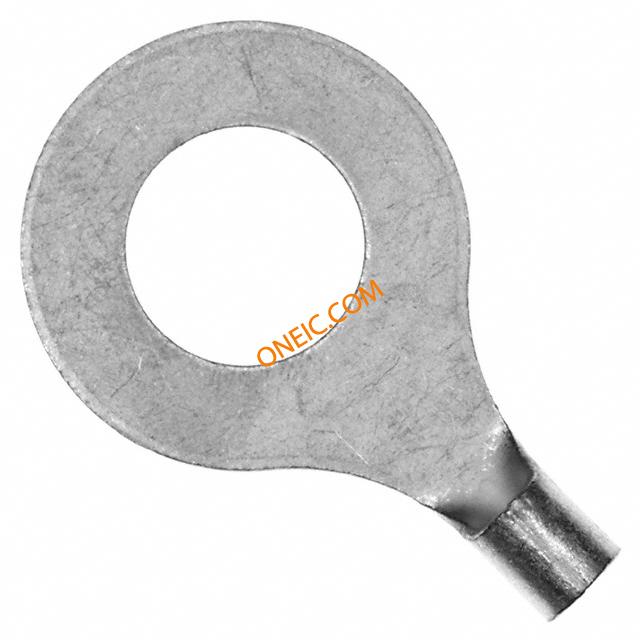

35665

制造商	TE Connectivity Ltd.
描述	Ring Tongue Terminal 8AWG 49.91mm 31.75mm Tin Loose Piece Terminals TERMINAL SOLIS R 8 5 Ring and Spade Tongue Terminals CONN RING 8 AWG #5/8 SOLIS Ring Tongue Terminal 8AWG 49.91mm 31.75mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = SOLISTRANDBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TE Connectivity SOLISTRAND 系列非绝缘镀锡触芯环形压接端子 , M16 (5/8) 螺栓, 16.66mm内环直径, 49.91mm总长 TERMINAL,SOLIS R 8 5/8
分类	连接器解决方案压接与焊接端子/接头片形压接端子

对参数有疑问？问 AI 助手

商业参数

产品	Ring Terminals	产品类别	Terminals
标准包装数量	Bulk	工厂包装数量	100

合规参数

RoHS	RoHS Compliant	抗辐射加固	No
无铅定义	Not relevant for lead free process	RoHS/ELV合规状态	RoHS compliant, ELV compliant
认证机构标志	No

电气参数

核心类型

Closed Barrel

机械参数

颜色	Not Required	深度	31.75 mm
形状	RING-048	表面处理	Tin
长度	49.91 mm	重量	9.546
材料（通用）	Copper	包装方式	Bulk
厚度	1.30 [0.051]	电缆类型	Regular Wire
重型	No	绝缘类型	Not Insulated
螺钉尺寸	5/8, M16	导线线规	8 AWG
端接方式	Crimp	基体材料	Copper
触点形状	Ring Tongue	安装类型	Wire
螺柱/焊片尺寸	16 mm	端子类型	Circular
电缆直径	10.5mm²	电缆材料	Solid or Stranded
接触镀层	Tin	壳体镀层	Tin
端子样式	Straight	线束直径	4.37 mm
连接器样式	Straight	触头材料	Copper
总长度	1.965" (49.91mm)	包装数量	Loose Piece
筒径	Standard	绝缘高度	Non-Insulation Support
端接样式	Crimp	材料厚度	1.22 mm [ .048 in ]
绝缘材料 - 类型	No	位数	1
外缘宽度	1.250" (31.75mm)	筒体内径	4.37 mm [ .172 in ]
舌片内部开口	1.22 mm [ .05 in ]	螺纹/螺钉/孔尺寸	M16 (5/8)
供应商器件封装	SOLISTRAND	接触镀层厚度	2.54 µm [ 100 µin ]
线规或范围 - AWG	13,100 â 20,800	线规或范围 - mm²	8.00Â² [8]
外管直径（最大）	31.75mm	非扩张内径	4.37 mm [ .172 in ]

产品信息

类型	Ring Tongue Terminal	连接器性别	Female
系列	SOLISTRAND	覆盖范围	无覆盖
产品特性	Brazed Seam, Serrated Termination	可密封	否
检查插槽	否	制造商全称	AMP
其他规格	16.66mm

环境参数

工作温度

170
