| 制造商 | TE Connectivity Ltd. |

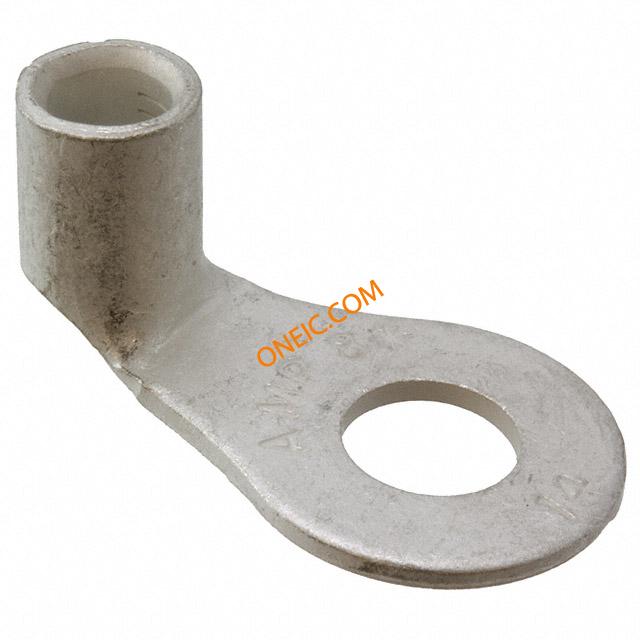

| 描述 | Ring Tongue Terminal 8AWG 15.09mm Tin Loose Piece Terminals N/I-RING 06-10 #1/4 8M6 Ring and Spade Tongue Terminals CONN TERM SOLIS R 90DEG 8 1/4 Terminals N/I-RING 06-10 #1/4 AªM6 Ring and Spade Tongue Terminals Product Highlights:Terminal Shape = Ring TongueReceptacle Style = Bent 90 DegreesBody Style = SOLISTRANDBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL,SOLIS R 90DEG 8 1/4 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 其他名称 | PB1282 |
| 标准包装规格 | 100 | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
机械参数
| 形状 | RING-080 | 表面处理 | Tin |
| 重量 | 3.784 | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 0.048" (1.22mm) |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Not Insulated | 螺钉尺寸 | M6 |
| 导线线规 | 8 AWG | 端接方式 | Crimp |
| 触点形状 | Ring Tongue | 安装类型 | Free Hanging (In-Line), Right Angle |
| 螺柱/焊片尺寸 | 6 mm | 端子类型 | Circular, Tubular |
| 电缆材料 | Solid or Stranded | 接触镀层 | Tin |
| 端子样式 | 90° | 连接器样式 | Bent 90 Degrees |
| 触头材料 | Copper | 总长度 | 15.08 mm [ .59 in ] |
| 包装数量 | Loose Piece | 筒径 | Standard |
| 绝缘高度 | Non-Insulation Support | 端接样式 | 环形端子 |
| 材料厚度 | 1.22 mm [ .05 in ] | 绝缘材料 - 类型 | No |
| 位数 | 1 | 外缘宽度 | 0.594" (15.09mm) |
| 筒体内径 | 4.37 mm [ .172 in ] | 舌片内部开口 | 1.22 mm [ .05 in ] |
| 螺纹/螺钉/孔尺寸 | 6.73 mm [ .265 in ] | 供应商器件封装 | SOLISTRAND |
| 接触镀层厚度 | 2.54 µm [ 100 µin ] | 线规或范围 - AWG | 13,100 â 20,800 |
| 线规或范围 - mm² | 8.00² [8] | 非扩张内径 | .172 |
产品信息
| 类型 | Ring Tongue Terminal | 连接器性别 | Female |
| 系列 | 352 | 产品特性 | Brazed Seam, Serrated Termination |
| 可密封 | 否 | 检查插槽 | 否 |
| 制造商全称 | AMP | ||
环境参数
| 工作温度 | 170 | ||
文档与媒体
相关型号
