点击放大查看
33465
| 制造商 | TE Connectivity Ltd. |

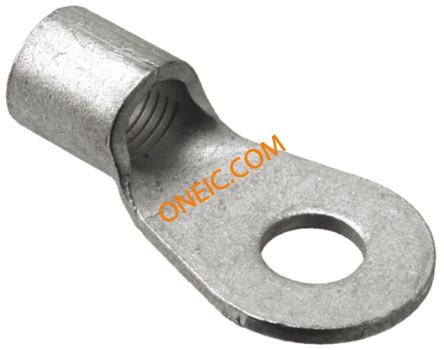

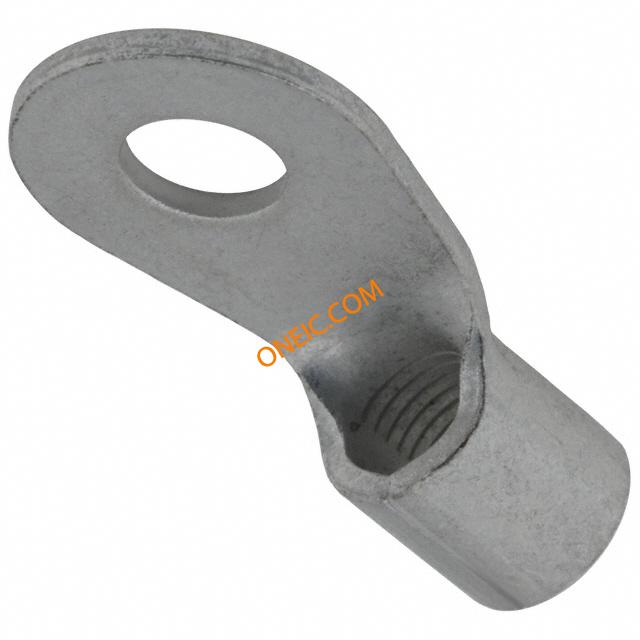

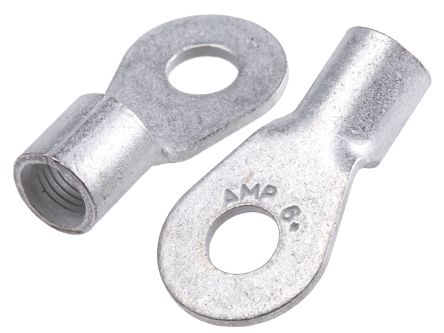

| 描述 | Ring Tongue Terminal 6AWG 31.65mm 15.88mm Tin Loose Piece Terminals SOLISTRAND RING 6 Ring and Spade Tongue Terminals CONN RING 6 AWG # 1/4 SOLIS Ring terminal, SOLISTRAND, M6, 6 AWG Ring Tongue Terminal 6AWG 31.65mm 15.88mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = SOLISTRANDBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B CRIMP TERMINAL, RING, M6, PK25 Terminal,RingTongue,6AWG,StudSz1/4 Ring terminal; M5; 13÷15mm2; crimped; for cable; non-insulated Ring Terminal 31.65 mm metallic, 16...16 mm², 6...6 AWG, SOLISTRAND, 33465, TE Connectivity TE Connectivity SOLISTRAND 系列 非绝缘 镀锡触芯 环形压接端子 , M6 螺栓 TERMINAL,SOLIS R 6 1/4 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :BS, CAA, CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
电气参数
| 核心类型 | Closed Barrel | 驱动类型 | ring terminal |
机械参数
| 颜色 | Not Required | 深度 | 15.88 mm |
| 形状 | RING-049 | 表面处理 | Tin |
| 重量 | 0.08 | 镀层 | Tin |
| 材料（通用） | Copper | 包装方式 | Bulk |
| 厚度 | 1.52 [0.060] | 电缆类型 | Regular Wire |
| 重型 | No | 绝缘类型 | Not Insulated |
| 导线线规 | 6 AWG | 本体表面处理 | SOLISTRAND |
| 端接方式 | Crimp | 基体材料 | Copper |
| 触点形状 | Ring Tongue | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 6 mm | 端子类型 | Circular |
| 行程角度 | Straight | 连接器类型 | :Ring Tongue |
| 接触镀层 | Tin | 安装样式 | for cable |
| 壳体镀层 | Tin | 线束直径 | 5.89 mm |
| 连接器样式 | Straight | 触头材料 | Copper |
| 套圈材料 | non-insulated | 绝缘颜色 | :(Not Available) |
| 总长度 | 1.246" (31.65mm) | 刀片材料 | Copper |
| 包装数量 | Loose Piece | 主要材料 | Ring |
| 内径（直径） | 6.35mm | 绝缘高度 | Non-Insulation Support |
| 端接样式 | Crimp | 连接器颜色 | :Tin |
| 绝缘材料 - 类型 | Non-Insulated | 外缘宽度 | 0.625" (15.88mm) |
| 绝缘材料 - 材质 | :Uninsulated | 安装孔直径 | M5 |
| 供应商器件封装 | SOLISTRAND | 线规或范围 - AWG | 20,800 â 33,100 |
| 线规或范围 - mm² | 13.00-15.00² [6] | 触点材料 - 镀层 | tinned |
| 外径-未扩张 | :5.3mm | ||
产品信息
| SPG | 1 | 类型 | Ring Tongue Terminal |
| 连接器性别 | Female | 系列 | 346 |
| 产品特性 | Brazed Seam, Serrated Termination | 制造商全称 | AMP |
| 单元数量 | 1 | ||
环境参数
| 工作温度 | :170°C | ||
