点击放大查看

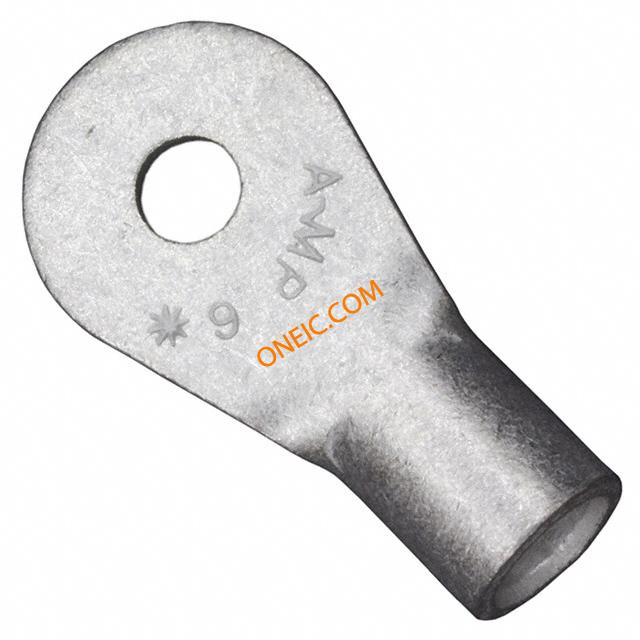

33464
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal 6AWG 31.65mm 15.88mm Tin Loose Piece Terminals RING TONGUE 6 Ring and Spade Tongue Terminals CONN RING 6 AWG # 10 SOLIS Ring terminal, SOLISTRAND, M5, 6 AWG Ring Tongue Terminal 6AWG 31.65mm 15.88mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = SOLISTRANDBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, #10, CRIMP SOLISTRANDTERM26-4,TERMINAL,SOLISR610 TE Connectivity SOLISTRAND 系列 非绝缘 镀锡触芯 环形压接端子 , M5 螺栓, 31.65mm总长 TERMINAL,SOLIS R 6 10 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 核心类型 | Closed Barrel | ||
机械参数
| 形状 | RING-049 | 宽度 | 15.88 mm |
| 表面处理 | Tin | 长度 | 31.65 mm |
| 重量 | 0.64 | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 1.45 [0.057] |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Not Insulated | 导线线规 | 6 AWG |
| 端接方式 | Crimp | 触点形状 | Ring Tongue |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 4.82 mm |
| 端子类型 | Circular | 连接器类型 | :Ring Tongue |
| 接触镀层 | Tin | 宽度（英寸） | 15.88 [0.625] |
| 线束直径 | 5.89 mm | 连接器样式 | Straight |
| 触头材料 | Copper | 绝缘颜色 | :Uninsulated |
| 总长度 | 1.246" (31.65mm) | 包装数量 | Loose Piece |
| 绝缘高度 | Non-Insulation Support | 端接样式 | Crimp |
| 外缘宽度 | 0.625" (15.88mm) | 供应商器件封装 | SOLISTRAND |
| 线规或范围 - AWG | 20,800 â 33,100 | 线规或范围 - mm² | 13.00-15.00² [6] |
产品信息
| 类型 | Ring Tongue Terminal | 连接器性别 | Female |
| 系列 | 346 | 产品特性 | Brazed Seam, Serrated Termination |
| 制造商全称 | AMP | ||
