33463
| 制造商 | TE Connectivity Ltd. |

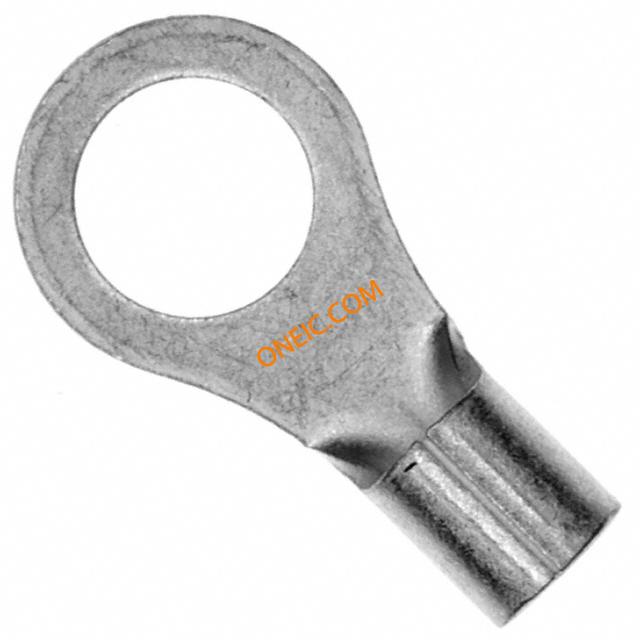

| 描述 | Ring Tongue Terminal 8AWG 29.67mm 15.09mm Tin Loose Piece Terminals SOLISTRAND RNG 8 Ring and Spade Tongue Terminals CONN RING 8 AWG #3/8 SOLIS Ring Tongue Terminal 8AWG 29.67mm 15.09mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = SOLISTRANDBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B Terminal,RingTongue,8AWG,StudSz3/8 TE Connectivity SOLISTRAND 系列 非绝缘 镀锡触芯 环形压接端子 , M10 (3/8) 螺栓, 9.91mm内环直径, 29.67mm总长 TERMINAL,SOLIS R 8 3/8 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 零件号别名 | MS20659-129 |
| 产品类别 | Terminals | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | 安全类别 | II 级 |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | Yes |
电气参数
| 核心类型 | Closed Barrel | ||
机械参数
| 颜色 | Not Required | 深度 | 15.09 mm |
| 形状 | RING-048 | 表面处理 | Tin |
| 材料（通用） | Copper | 包装方式 | Bulk |
| 厚度 | 1.22 [0.048] | 电缆类型 | Regular Wire |
| 重型 | No | 绝缘类型 | Not Insulated |
| 螺钉尺寸 | 3/8 | 导线线规 | 8 AWG |
| 本体表面处理 | SOLISTRAND | 端接方式 | Crimp |
| 基体材料 | Copper | 触点形状 | Ring Tongue |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 9.53 mm |
| 端子类型 | Circular | 行程角度 | Straight |
| 电缆直径 | 10.5mm² | 电缆材料 | Solid or Stranded |
| 接触镀层 | Tin | 壳体镀层 | Tin |
| 线束直径 | 4.37 mm | 连接器样式 | Straight |
| 触头材料 | Copper | 总长度 | 1.168" (29.67mm) |
| 刀片材料 | Copper | 包装数量 | Loose Piece |
| 主要材料 | Ring | 绝缘高度 | Non-Insulation Support |
| 端接样式 | Crimp | 材料厚度 | 1.22 mm [ .048 in ] |
| 绝缘材料 - 类型 | No | 位数 | 1 |
| 外缘宽度 | 0.594" (15.09mm) | 筒体内径 | 4.37 mm [ .172 in ] |
| 螺纹/螺钉/孔尺寸 | M10 (3/8) | 供应商器件封装 | SOLISTRAND |
| 接触镀层厚度 | 100 | 线规或范围 - AWG | 13,100 â 20,800 |
| 线规或范围 - mm² | 8.00² [8] | 外管直径（最大） | 15.09mm |
| 非扩张内径 | 4.37 mm [ .172 in ] | ||
产品信息
| 类型 | Ring Tongue Terminal | 类别 | 2 |
| 连接器性别 | Female | 系列 | 346 |
| 覆盖范围 | 无覆盖 | 产品特性 | Brazed Seam, Serrated Termination |
| 可密封 | 否 | 检查插槽 | 否 |
| 制造商全称 | AMP | 其他规格 | 9.91mm |
| 设备部件号 | MS20659-129 | ||
