33459
| 制造商 | TE Connectivity Ltd. |

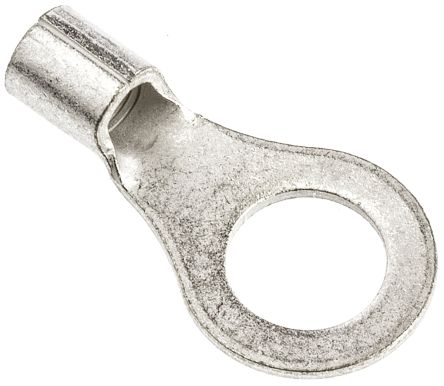

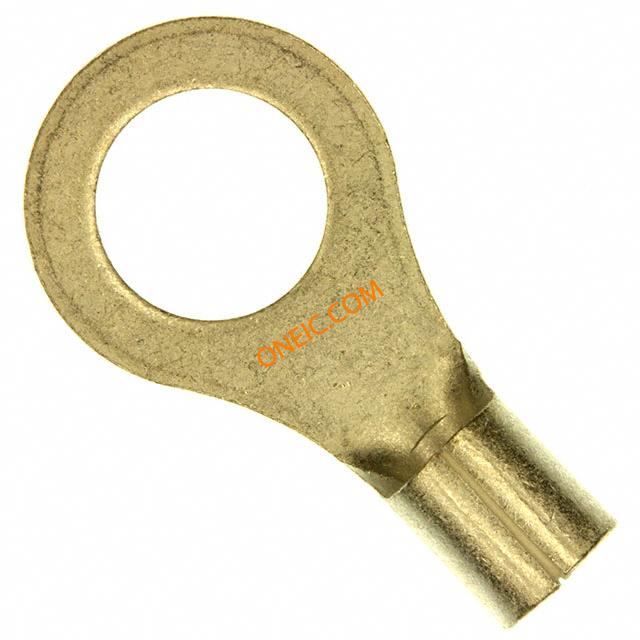

| 描述 | Ring Tongue Terminal 10-12AWG 25.5mm 13.49mm Tin Loose Piece Terminals RING 12-10AWG 5/16 Ring and Spade Tongue Terminals CONN RING 10-12 AWG #5/16 SOLIS Ring terminal, SOLISTRAND, M8, 12-10 AWG Ring Tongue Terminal 10-12AWG 25.5mm 13.49mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = SOLISTRANDBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B Terminal,RingTongue,SOLISTRAND,5/16,12-10AWG,Straight,ClosedBarrel TE Connectivity SOLISTRAND 系列 非绝缘 镀锡触芯 环形压接端子 , M8 螺栓, 8.33mm内环直径, 25.5mm总长 TERMINAL,SOLIS R 12-10 5/16 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 其他名称 | A0930 |
| 零件号别名 | MS20659-106 | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | RoHS Compliant | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | 安全类别 | I 级 |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | Yes |
电气参数
| 核心类型 | Closed Barrel | ||
机械参数
| 颜色 | Not Required | 深度 | 13.49 mm |
| 形状 | RING-048 | 表面处理 | Tin |
| 材料（通用） | Copper | 包装方式 | Bulk |
| 厚度 | 1.07 [0.042] | 电缆类型 | Regular Wire |
| 重型 | No | 绝缘类型 | Not Insulated |
| 螺钉尺寸 | 5/16, M8 | 导线线规 | 10-12 AWG |
| 端接方式 | Crimp | 基体材料 | Copper |
| 触点形状 | Ring Tongue | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 7.93 mm | 端子类型 | Circular |
| 电缆直径 | 6.6mm² | 电缆材料 | Solid or Stranded |
| 接触镀层 | Tin | 壳体镀层 | Tin |
| 线束直径 | 3.28 mm | 连接器样式 | Straight |
| 触头材料 | Copper | 总长度 | 1.004" (25.50mm) |
| 包装数量 | Loose Piece | 绝缘高度 | Non-Insulation Support |
| 端接样式 | 环形端子 | 材料厚度 | 1.07 mm [ .042 in ] |
| 绝缘材料 - 类型 | Not Insulated | 位数 | 1 |
| 外缘宽度 | 0.531" (13.49mm) | 筒体内径 | 3.28 mm [ .129 in ] |
| 螺纹/螺钉/孔尺寸 | M8 | 供应商器件封装 | SOLISTRAND |
| 接触镀层厚度 | 100 | 线规或范围 - AWG | 5,180 â 13,100 |
| 线规或范围 - mm² | 3.00-6.00² [12-10] | 外管直径（最大） | 13.49mm |
| 非扩张内径 | 3.28 mm [ .129 in ] | ||
产品信息
| 类型 | Ring Tongue Terminal | 类别 | 1 & 2 |
| 连接器性别 | Female | 系列 | 345 |
| 产品特性 | Brazed Seam, Serrated Termination | 可密封 | 否 |
| 检查插槽 | 否 | 制造商全称 | AMP |
| 其他规格 | 8.33mm | 设备部件号 | MS20659-106 |
环境参数
| 工作温度 | 170 | ||
