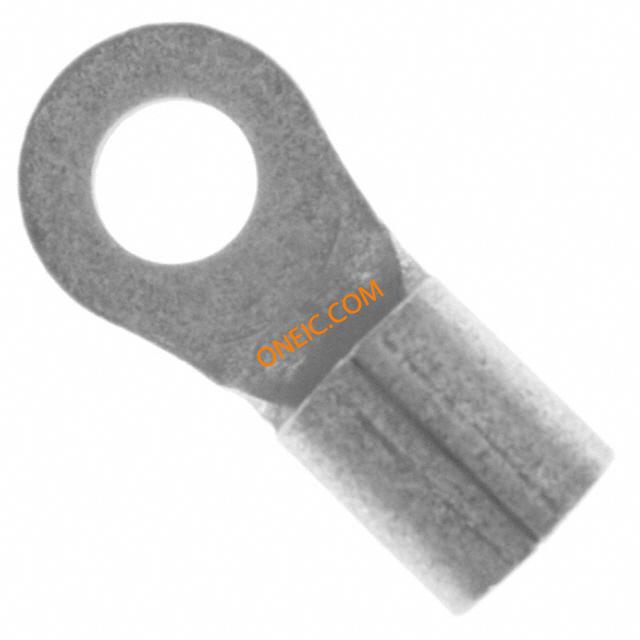

点击放大查看
33115
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal 4AWG 33.63mm 15.88mm Tin Loose Piece Terminals RING TONGUE CLOSED BARREL Ring and Spade Tongue Terminals CONN RING 4 AWG #5/16 SOLIS Ring Tongue Terminal 4AWG 33.63mm 15.88mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = SOLISTRANDBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, 5/16IN, CRIMP SOLISTRANDTERM26-4,TERMINAL,SOLISR45/16 TE Connectivity SOLISTRAND 系列 非绝缘 镀锡触芯 环形压接端子 , M8 (5/16) 螺栓, 8.33mm内环直径, 33.63mm总长 TERMINAL,SOLIS R 4 5/16 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 其他名称 | A27086 |
| 零件号别名 | MS20659-132 | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 核心类型 | Closed Barrel | ||
机械参数
| 形状 | RING-049 | 表面处理 | Tin |
| 长度 | 33.63 mm | 重量 | 0.984 |
| 材料（通用） | Copper | 包装方式 | Bulk |
| 厚度 | 1.78 [0.070] | 电缆类型 | Regular Wire |
| 重型 | No | 绝缘类型 | Not Insulated |
| 导线线规 | 4 AWG | 端接方式 | Crimp |
| 触点形状 | Ring Tongue | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 8 mm | 端子类型 | Circular |
| 连接器类型 | :Ring Tongue | 接触镀层 | Tin |
| 线束直径 | 7.11 mm | 连接器样式 | Straight |
| 触头材料 | Copper | 绝缘颜色 | :Uninsulated |
| 总长度 | 1.324" (33.63mm) | 包装数量 | Loose Piece |
| 绝缘高度 | Non-Insulation Support | 端接样式 | Solderless |
| 外缘宽度 | 0.625" (15.88mm) | 供应商器件封装 | SOLISTRAND |
| 线规或范围 - AWG | 33,100 â 52,600 | 线规或范围 - mm² | 21.00² [4] |
产品信息
| 类型 | Ring Tongue Terminal | 类别 | 2 |
| 连接器性别 | Female | 系列 | 311 |
| 产品特性 | Brazed Seam, Serrated Termination | 制造商全称 | AMP |
| 设备部件号 | MS20659-132 | ||
环境参数
| 工作温度 | 0 C to + 170 C | ||
