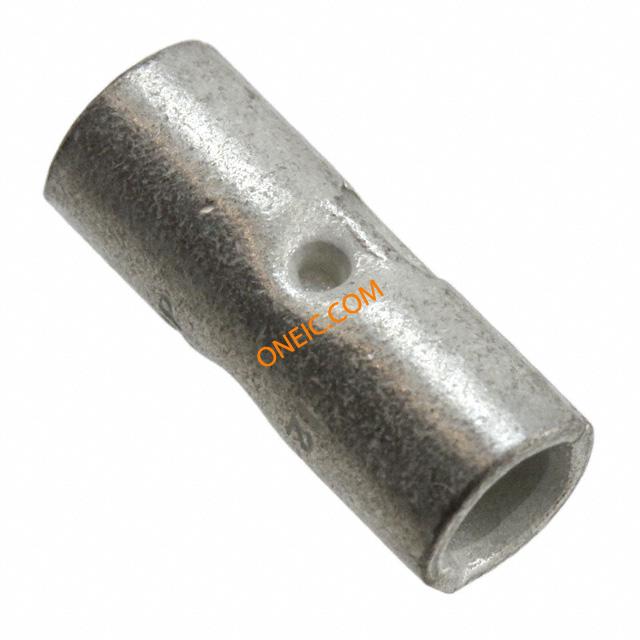

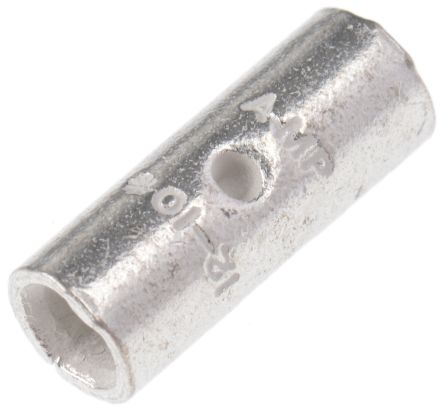

330369
| 制造商 | TE Connectivity Ltd. |
| 描述 | Splice Terminal 10-12AWG 14.4mm 5.74mm Tin Loose Piece Terminals SPLICE SOLIS BUTT 12 Splices - Closed Barrel CONN SPLICE BUTT 10-12 AWG Splice Terminal 10-12AWG 14.4mm 5.74mm Tin Loose Piece Product Highlights:SpliceNot SealedSplice Type = ButtButt Splice Type = Sight HoleBody Style = SOLISTRANDSearch Keywords:Wire Termination and Splices, terminals and splices, W crimp, C crimp, TE Connectivity SOLISTRAND 系列 平接 非绝缘压接接线端子, 镀锡触点, 12 → 10 AWG SPLICE,SOLIS BUTT 12-10 |
| 分类 |
商业参数
| 产品 | Splices | 其他名称 | A09015 |
| 产品类别 | Terminals | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | RoHS Compliant | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 军用规范 | No | 认证机构标志 | No |
电气参数
| 纹波 | 是 | 额定电压 | 300 VAC |
机械参数
| 颜色 | None | 深度 | 5.74 mm |
| 表面处理 | Tin | 密封型 | No |
| 直径 | 5.74mm | 材料（通用） | Copper |
| 底座类型 | Sight Hole | 包装方式 | Bulk |
| 厚度 | 1.07 [0.042] | 重型 | No |
| 绝缘类型 | Not Insulated | 导线线规 | 10-12 AWG |
| 端接方式 | Crimp | 基体材料 | Copper |
| 安装类型 | 闭式压线筒 | 螺柱/焊片尺寸 | # 8 |
| 端子类型 | Butt Splice, Inline, Individual Openings | 电缆材料 | Solid or Stranded |
| 连接器类型 | 对接接头 | 接触镀层 | 锡 |
| 壳体镀层 | Tin | 触头材料 | Copper |
| 总长度 | 14.4 mm | 刀片材料 | 平接 |
| 包装数量 | Loose Piece | 内径（直径） | 3.28 [0.129] |
| 绝缘高度 | Non-Insulation Support | 外径 | 5.74 [0.226] |
| 材料厚度 | 1.07 mm [ 0.042 in ] | 绝缘材料 - 类型 | No |
| 位数 | 16 | 镀层厚度（通用） | 2.54 µm [ 100 µin ] |
| 筒体内径 | 3.28 mm [ .129 in ] | 绝缘材料 - 材质 | Copper |
| 进线口数 | 2 | 接触镀层厚度 | 2.54 µm [ 100 µin ] |
| 线规或范围 - AWG | 5,180 â 13,100 | 线规或范围 - mm² | 3.00-6.00² [12-10] |
| 恢复后内径 | 3.277 mm [ .129 in ] | ||
产品信息
| 类型 | Splice Terminal | 连接器性别 | Female |
| 系列 | 330 | 覆盖范围 | 无覆盖 |
| 产品特性 | Brazed Seam, Serrated Mating Area | 可密封 | 否 |
| 制造商全称 | AMP | 产品子类型 | Splice |
环境参数
| 温度额定值 | 170 [338] | 工作温度 | 170 C |
